MULTIQUIP CG1000C2 Information

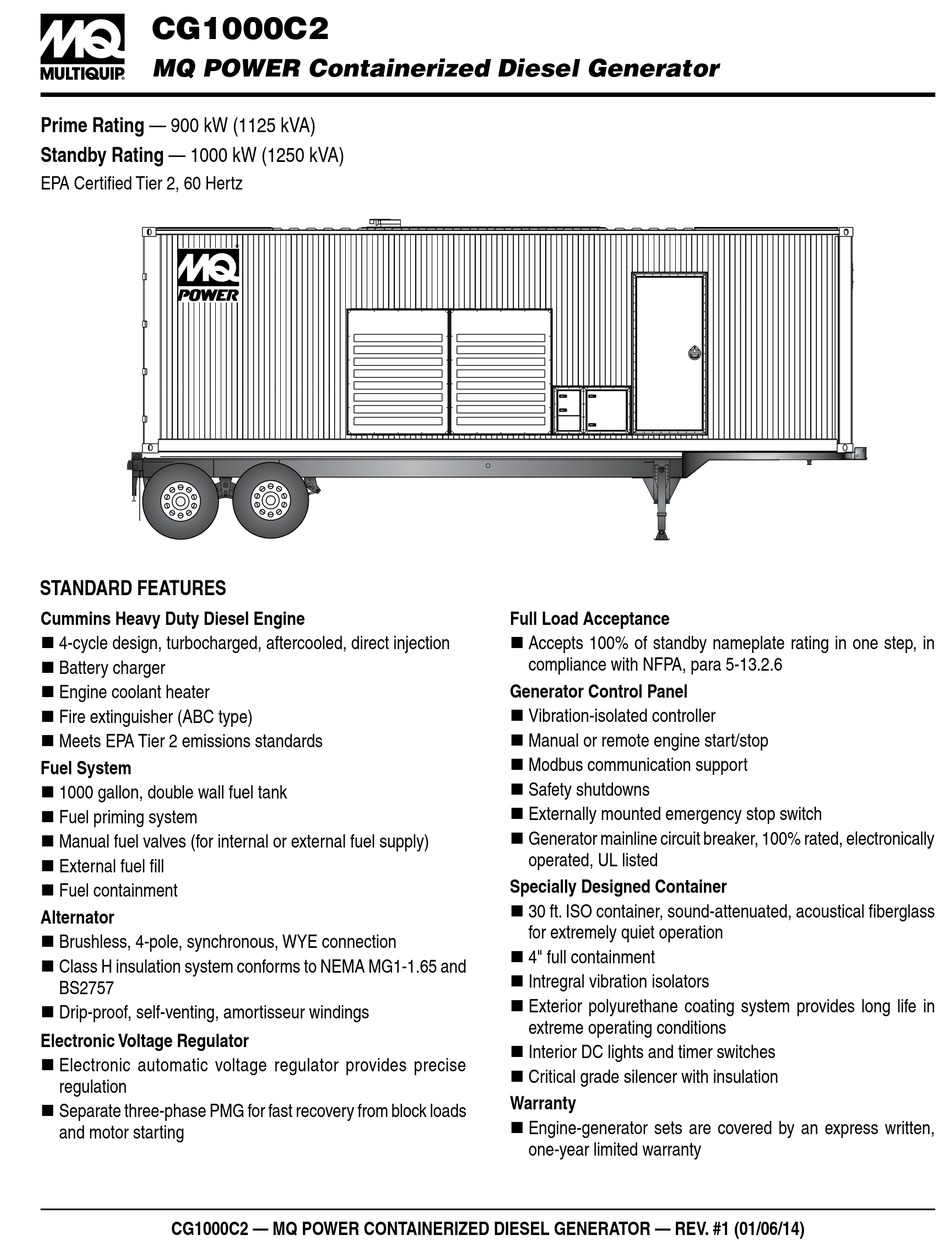

CG1000C2
MQ POWER Containerized Diesel Generator
Prime Rating — 900 kW (1125 kVA)
Standby Rating — 1000 kW (1250 kVA)
EPA Certified Tier 2, 60 Hertz
STANDARD FEATURES
Cummins Heavy Duty Diesel Engine
„ 4-cycle design, turbocharged, aftercooled, direct injection
„ Battery charger
„ Engine coolant heater
„ Fire extinguisher (ABC type)
„ Meets EPA Tier 2 emissions standards
Fuel System
„ 1000 gallon, double wall fuel tank
„ Fuel priming system
„ Manual fuel valves (for internal or external fuel supply)
„ External fuel fill
„ Fuel containment
Alternator
„ Brushless, 4-pole, synchronous, WYE connection
„ Class H insulation system conforms to NEMA MG1-1.65 and
BS2757
„ Drip-proof, self-venting, amortisseur windings
Electronic Voltage Regulator
„ Electronic automatic voltage regulator provides precise
regulation
„ Separate three-phase PMG for fast recovery from block loads
and motor starting
CG1000C2 — MQ POWER CONTAINERIZED DIESEL GENERATOR — REV. #1 (01/06/14)
Full Load Acceptance
„ Accepts 100% of standby nameplate rating in one step, in
compliance with NFPA, para 5-13.2.6
Generator Control Panel
„ Vibration-isolated controller
„ Manual or remote engine start/stop
„ Modbus communication support
„ Safety shutdowns
„ Externally mounted emergency stop switch
„ Generator mainline circuit breaker, 100% rated, electronically
operated, UL listed
Specially Designed Container
„ 30 ft. ISO container, sound-attenuated, acoustical fiberglass
for extremely quiet operation
„ 4" full containment
„ Intregral vibration isolators
„ Exterior polyurethane coating system provides long life in
extreme operating conditions
„ Interior DC lights and timer switches
„ Critical grade silencer with insulation
Warranty
„ Engine-generator sets are covered by an express written,
one-year limited warranty
