5-Pin XLR DMX Connectors.
connectors for DATA transmission in place of 3-pin. 5-pin XLR fixtures
may be implemented in a 3-pin XLR DMX line. When inserting stan-
dard 5-pin XLR connectors in to a 3-pin line a cable adaptor must be
used, these adaptors are readily available at most electric stores. The
chart below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
©Elation Pr fessionals® - www.elationlighting.com - Event Bar Instruction Manual Page 7
o
Some manufactures use 5-pin XLR
5-Pin XLR Male (In)
Pin 1 Pin 1
Pin 2 Pin 2
Pin 3 Pin 3
Pin 4 - Do Not Use
Pin 5 - Do Not Use
Set Up Event Bar
©Elation Pr fessionals® - www.elationlighting.com - Event Bar Instruction Manual Page 8
o

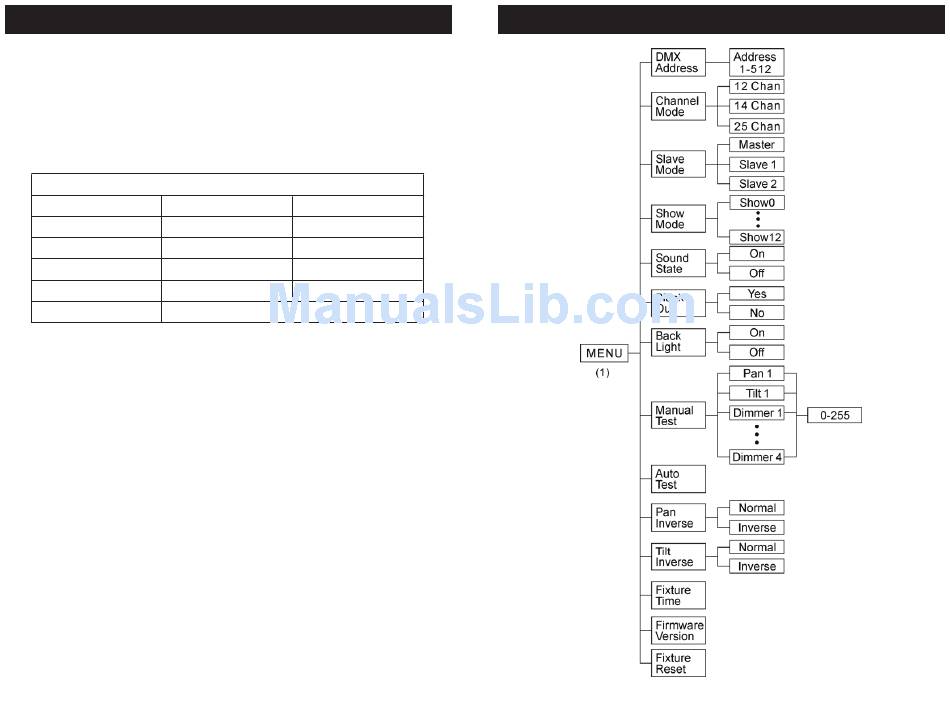

System Menu
