Elation ELAR EXFLOOD Brochure & Specs

ELAR EXFLOOD
Optional wireless infrared
remote available: ELAR WR

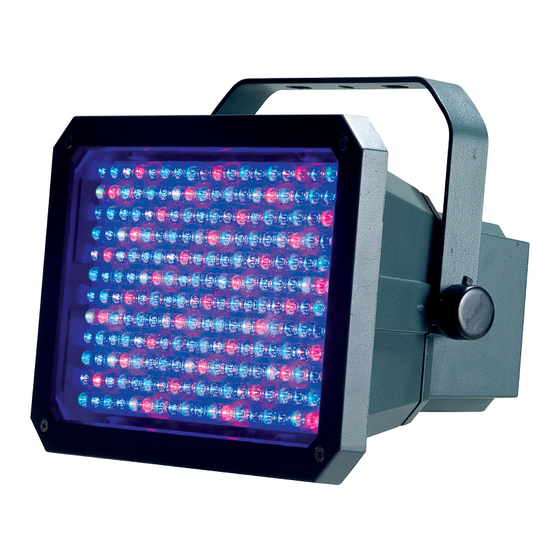

The ELAR EXFLOOD by Elation Professional is a high output architectural outdoor LED wash fixture featuring RGB color
mixing producing infinite colors using 216 x 10mm LEDs, 0-100% electronic dimming and produces a 40° beam
angle. This unit is rated at IP65, ideal for indoor or outdoor applications and includes outdoor rated power and
data cables along with a/c power 120v input PPG cable (a 240V model is available). The ELAR EXFLOOD is power/
data linkable and is equipped with an internal power supply. The unit is safe in any working position and can be
operated in two user modes: DMX-512 or stand alone. The ELAR EXFLOOD can be controlled via two DMX modes, a
3 channel mode and a 5 channel mode plus with the optional ELAR WR remote users can access internal programs
and allow manual control of the unit as well as set DMX start channel address. Includes a single yoke bracket and
safety hook for mounting.
FEATURES
• High output LED RGB outdoor flood
• 216 x 10mm LEDs (36 red, 90 green & 90 blue)
• RGB Color Mixing (infinite colors)
• Standard 40° beam angle
• Optional 360° / 180° snoots available
• IP 65 rated
• Die-cast aluminum housing
• UV protected front plexi
• Internal power supply
• Power / Data linkable
• DMX-512 or stand alone
• Optional wireless infrared remote available: ELAR WR
©Elation Professional • Elation Professional 6122 S. Eastern Ave. Los Angeles, Ca 90040
www.ElationLighting.com • Toll Free ( 866 ) 245-6726
11.7" / 298mm
3.5" / 90mm
ELAR EXFLOOD Dimensions
TECHNICAL SPECIFICATIONS
• DMX Channels: 5 DMX Channels with 2 DMX modes:
3 channel mode and 5 channel mode
• Control: USITT DMX-512,
• Dimmer: 0-100% Electronic Dimming
• Strobe: Slow to fast
• IP Rating: IP 65
• Power Supply: 120V/60Hz or 240/50Hz
• Power consumption: 24W
• Lamp: 216 x 10mm L.E.D.s (36 red, 90 green & 90 blue)
• Dimensions: (LxWxH): 7" x 12" x 9.5" /
578 x 197 x 540 mm
• Weight: 10 lbs. / 4.5 kgs.
• Rigging: Single yoke bracket and safety hook
for mounting
3 pin XLR serial input/output
