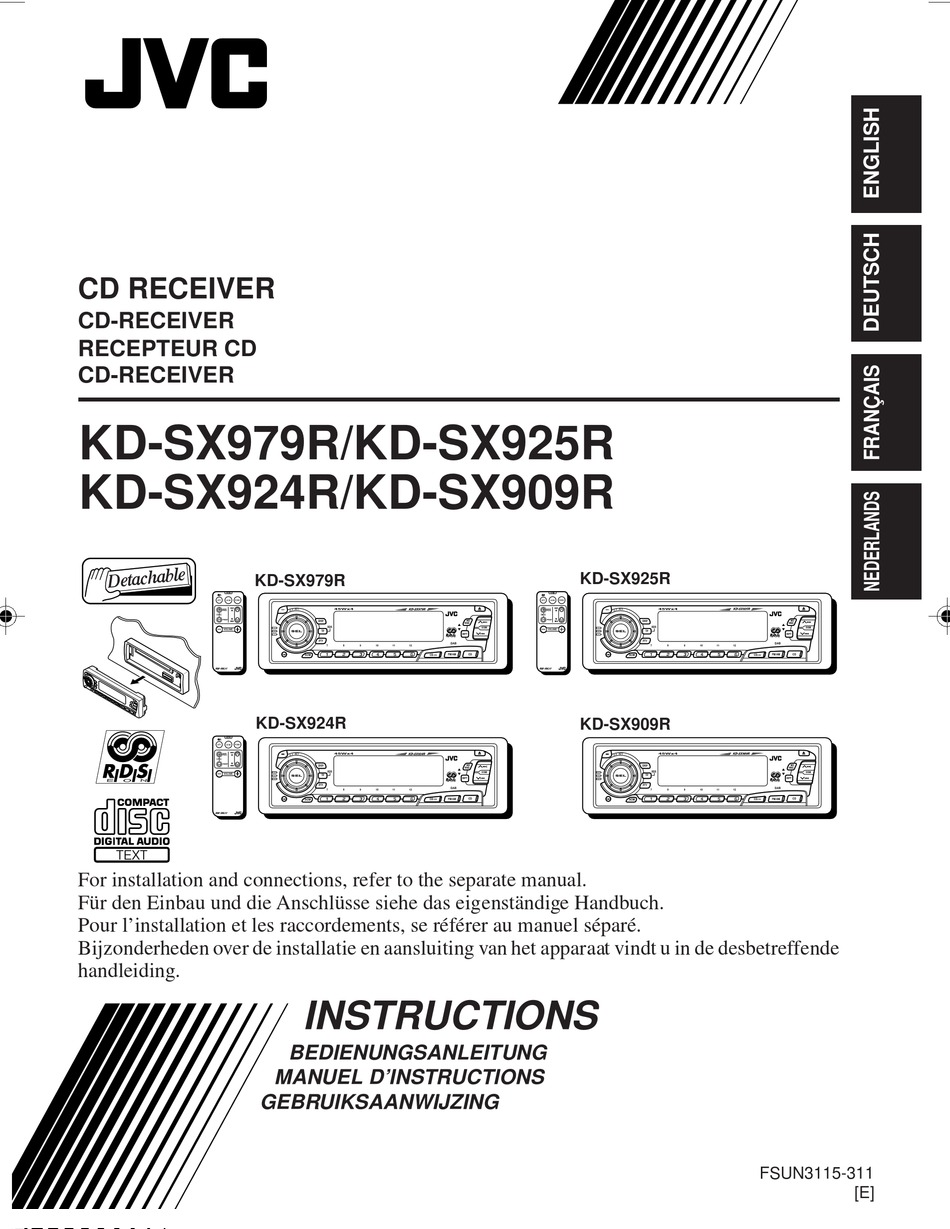

CD RECEIVER
CD-RECEIVER
RECEPTEUR CD
CD-RECEIVER
KD-SX979R/KD-SX925R
KD-SX924R/KD-SX909R
For installation and connections, refer to the separate manual.
Für den Einbau und die Anschlüsse siehe das eigenständige Handbuch.
Pour l'installation et les raccordements, se référer au manuel séparé.
Bijzonderheden over de installatie en aansluiting van het apparaat vindt u in de desbetreffende
handleiding.
KD-SX979R
45Wx4
DISP
RDS
TP
PTY
7
8
9
10
11
12
SCM
KD-SX924R
45Wx4
DISP
RDS
TP
PTY
7
8
9
10
11
12
SCM
INSTRUCTIONS
BEDIENUNGSANLEITUNG
MANUEL D'INSTRUCTIONS
GEBRUIKSAANWIJZING
KD-SX925R
MO
5
RND
∞
SSM
RPT
DAB
CD
FM/AM
CD
-CH
KD-SX909R
MO
5
RND
∞
SSM
RPT
DAB
CD
FM/AM
CD
-CH
45Wx4
DISP
MO
5
RND
RDS
∞
TP
RPT
PTY
DAB
7
8
9
10
11
12
SCM
CD
FM/AM
CD
-CH
45Wx4
DISP
MO
5
RND
RDS
∞
TP
RPT
PTY
DAB
7
8
9
10
11
12
SCM
CD
FM/AM
CD
-CH
FSUN3115-311
SSM
SSM
[E]
