1
PANEL DESCRIPTION
Key flow chart for the default setting
Push [ ] to turn power ON.
Normal mode
: [CH Up]
: [CH Down]
: [Moni(Audi)]
Function mode
: [CH Up]
: [CH Down]
: [Call]
Set mode
: Set the desired level/mode.
/
: Change the individual setting.
: Change the common setting.
: Turn the function ON and OFF.
: Push to enter channel bank selection mode.
Push for 1 sec. to enter Normal mode.
3
: [Scan Start/Stop]
: [Dup/Pri]
: [Bank/Func]
Push [ O ] for 1 sec.
: [ID-MR Select]
: [CONT/SGL]
: [Bank/Func]
Push [ O ] for 1 sec.

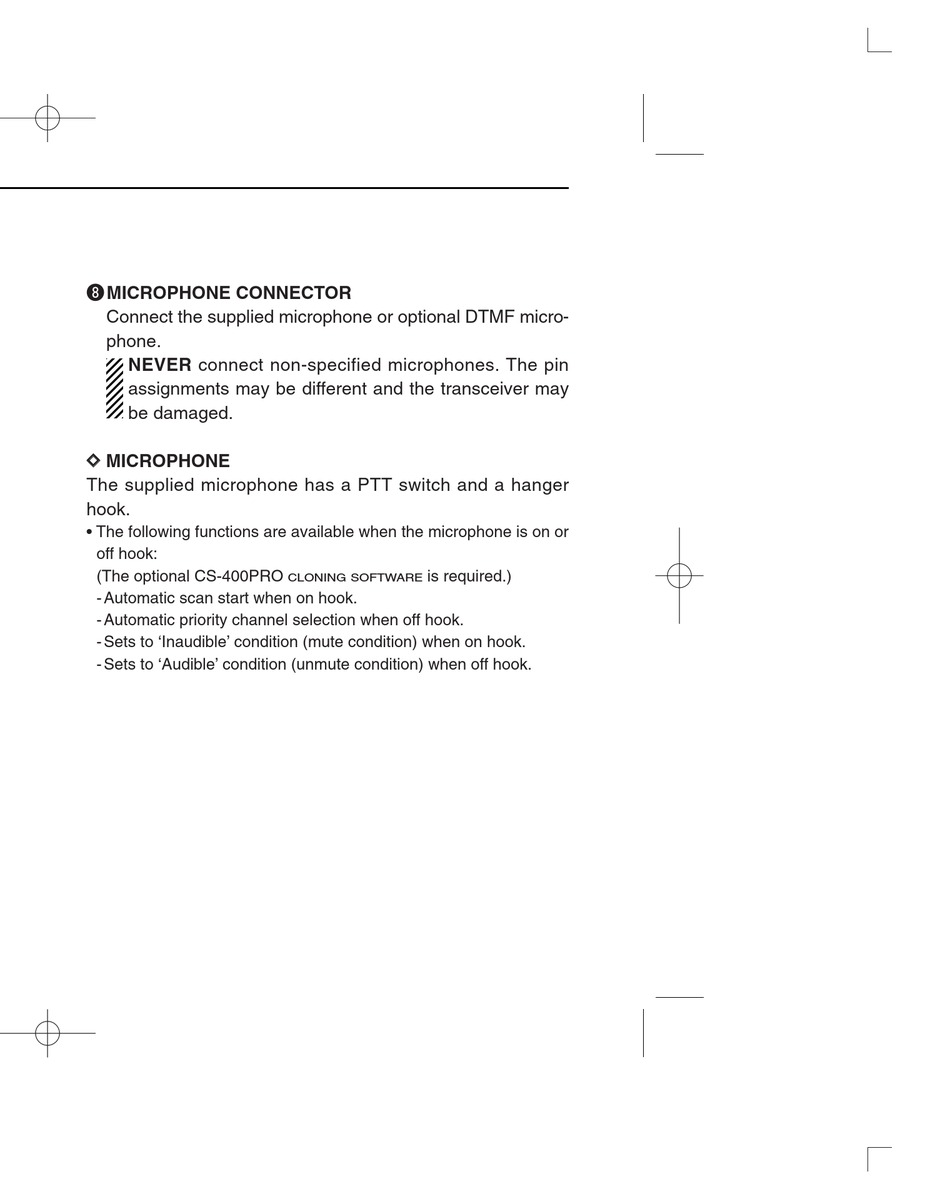

i MICROPHONE CONNECTOR
Connect the supplied microphone or optional DTMF micro-
phone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
D D MICROPHONE
The supplied microphone has a PTT switch and a hanger
hook.
• The following functions are available when the microphone is on or
off hook:
(The optional CS-400PRO
CLONING SOFTWARE
- Automatic scan start when on hook.
- Automatic priority channel selection when off hook.
- Sets to 'Inaudible' condition (mute condition) when on hook.
- Sets to 'Audible' condition (unmute condition) when off hook.
is required.)
