STEP 1 MODEL ZFSB25
(GO TO STEP 1A FOR MODEL ZFSB23)
MOVE REFRIGERATOR INDOORS
IMPORTANT:
the installation location require a 31" min. opening. If the
opening is less than 31", the top cap and doors must be
removed.
NOTE: Skip this step if door removal is not required.
See instructions on page 7, "To Move The Refrigerator
Indoors."
NOTE: To prevent damage, leave inside
packaging, door spacer and outside
protective wrap in place until the unit
is moved to the installation location.
Hinge Screws
D
Wire Harness
Installation Instructions
Doors and passageways into
C
Water Line Coupler
REMOVE THE DOORS

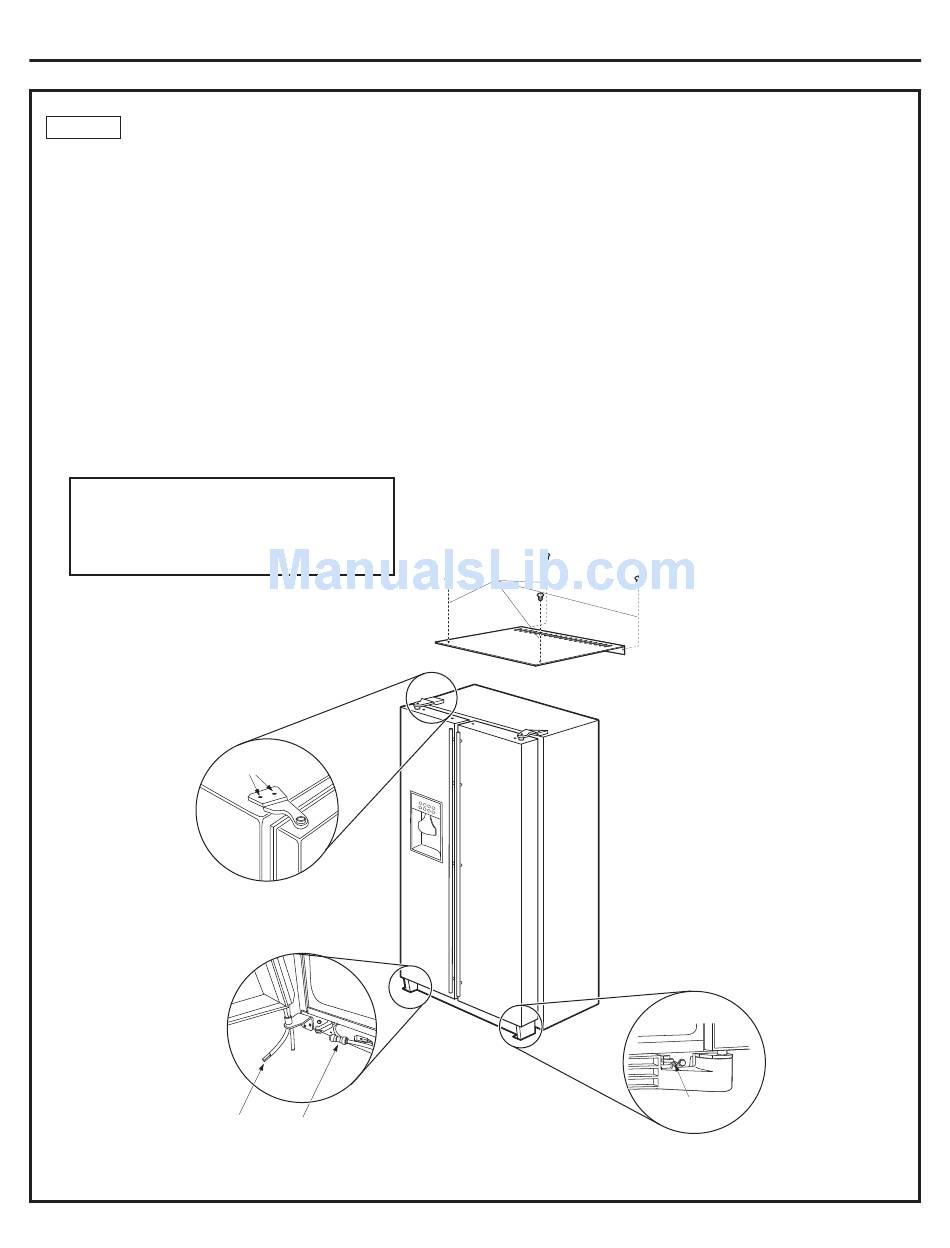

The top cap must be removed to access hinges. It is best
to remove one door at a time.
A. Remove 2 screws on top and 2 screws at the back of
the top cap. Lift off top cap.
B. Open both doors. Remove the 2 toekick screws and pull
forward to remove.
C. Disconnect the water line coupler by pushing against
the collar on the left side. Disconnect wire harness.
D. Remove 2 screws holding top hinge to the case.
Carefully lift off door.
Follow the same procedure to remove the fresh food door.
A
5
B
Toekick Screw
