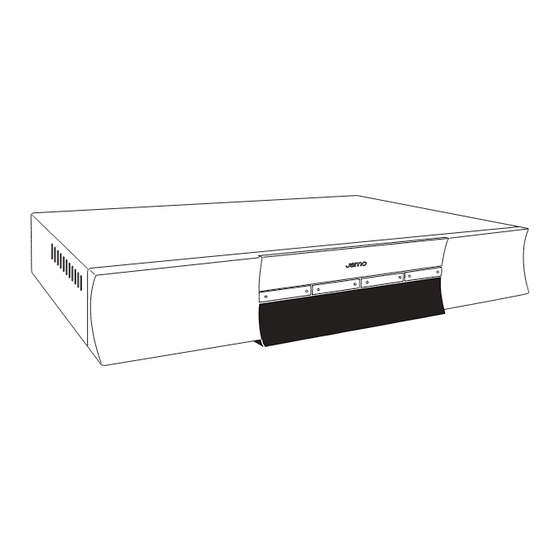

DVD Receiver DVR 50

Advertisement

Table of Contents
loading

Related Manuals for JAMO DVR 50

Summary of Contents for JAMO DVR 50

  • Page 1 DVD Receiver DVR 50...

  • Page 2: Table Of Contents

    You can watch films in many other formats than DVD, such as MPEG-4, XviD, DivX. The audio features also give you the option of playing music CDs, MP3 or Ogg Vorbis files. The DVR 50 auto- matically recognises each format and can read CD-RW and DVD-RW alike. Your new DVR 50 also supports Picture CDs (jpg), which means that you can display your photos directly on the TV screen.

  • Page 3: Introduction

    Introduction Make sure the following accessories are included with your DVD Receiver. DVD-Receiver Jamo DVR 50 Batteries Power Cable for the remote control (size “AAA” R6P) Remote control FM Antenna S-Video Composite Video Not provided in Europe SCART Audio Cable...
  • Page 4 Connecting Refer to the illustration below to connect speakers, subwoofer and antennas. To fit the DVR 50 into your current video system, refer to the three configuration examples. Choose from one of them or make your own combination. Speakers Extra accessories...
  • Page 5 TV input must be set to SCART Video input must be set to optical Jamo DVR 50 S-Video configuration Video is connected through the S-Video connectors (or composite video connectors) to the TV. Audio is also connected through the TV to the DVD receiver.
  • Page 6 Overview Front Panel The front panel has the standard buttons listed below. When the disk tray is open, push the end of the tray to close it. 1. Standby 2. Source select 3. Volume up 4. Volume down 5. Previous (Arrow down in menus) 6.

  • Page 7: Quick Setup

    Note: Try connecting your TV set using the Composite Video cables. Composite Video always produces a picture. Language Select the language that will be used whenever you open the DVR 50’s built-in menus. Use the arrow buttons on the remote control to move the rectangular frame to the language you wish to select and press ENTER.
  • Page 8 This screen presents two different types of TV formats: 4:3 (normal) or 16:9 (wide screen). Note: Some 4:3 TV screens can display 16:9 format. Speaker Type To get the best possible sound select the type of front speakers you have connected. You can always go back and start again if you happen to do something wrong, or if you wish to enter the Setup menu and edit it.

  • Page 9: Advanced Setup

    Advanced Setup You can always access the Setup menu and adjust the DVR 50 to your specific requirements and hardware. When the Jamo logo appears on the main screen, press the SETUP button on your remote control, and a menu will appear with the available options.
  • Page 10 Audio Settings Jamo has tuned the product to give you the best possible sound experience (Jamo Reference). Under acoustic setup, you can neutralize these settings or enhance them further by selecting dynamic sound. Speaker size is used to make the right base management.

  • Page 11: Receiver

    Receiver Turn on and select DVD, radio, video and TV by pressing the source buttons. Standby Button Standby will turn off the DVD receiver Source Select Buttons Press the DVD button to start playing a medium. Pressing the Radio button will start playing radio. TV or Video should be pressed to select external inputs from TV or Video sound.

  • Page 12: Dvds And Other Media

    Photo CD and Jpeg The DVR 50 recognises the format and automatically The DVR 50 can show photos on your TV. The photos must starts playing the CD when you insert it into the drive. be stored in JPEG format on a Disc. The player will auto-...

  • Page 13: Advanced Functions

    Advanced Functions To simplify the remote, we have put all advanced functions under the list button. Press list until you get the function you want to operate. Press enter to activate it. Subtitle Use this function to choose from the subtitles available on the film. Normally you can also choose the subtitle on the DVD menu Audio Use this function to chose among the available audio tracks on the film.

  • Page 14: Radio

    Radio If the antennas are correctly connected, you should be able to listen to both FM and AM radio Find a radio station Press >> or << to start searching for a radio station. The display will show the current fre- quency.

  • Page 15: Support

    At our website, you can update the DVD Receiver’s firmware/operating system with the latest new features. To do so, download the software from the download section at the www.Jamo.com website. Then burn it on a CD-R and load it into the DVD receiver. See our website under download for additional information.
  • Page 16 Packaging If possible, use the original packing material for any shipping. Otherwise, repack the DVR 50 using: • A reinforced cardboard box, strong enough to carry the weight of the product. • At least 6 cm / 2.36 inches of shock-absorbing material around the product.

  • Page 17: Appendix

    Appendix List of country codes available for DVD language setup AFGHANISTAN GERMANY OMAN ALBANIA GHANA PAKISTAN ALGERIA GIBRALTAR PALAU AMERICAN SAMOA GREECE PANAMA ANDORRA GREENLAND PAPUA NEW GUINEA ANGOLA GRENADA PARAGUAY ANGUILLA GUADELOUPE PERU ANTARCTICA GUAM PHILIPPINES ANTIGUA AND BARBUDA GUATEMALA PITCAIRN ARGENTINA...
