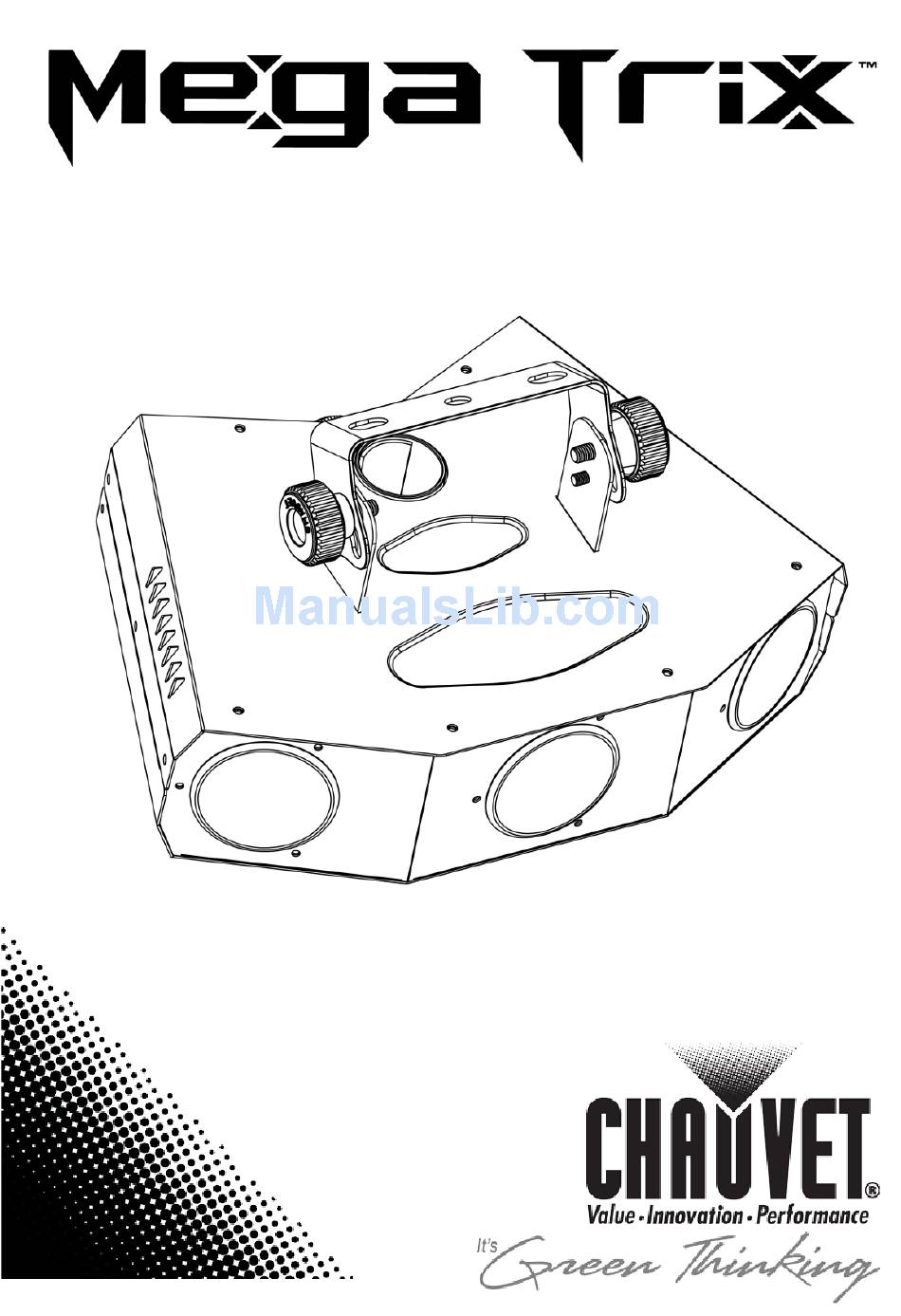

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
Mega Trix™ QRG About This The Mega Trix™ Quick Reference Guide (QRG) contains the product’s connection and mounting information, as well as the menu options and the Guide DMX values. · Refer to this product’s User Manual for detailed information and instructions. - Page 3 One Power Cord One Quick Reference Guide Before You Prior to using your Mega Trix™, ensure that you have received all parts indicated above in good condition. If the container or material inside appear Begin damaged or show signs of mishandling, notify the carrier immediately, not CHAUVET®.
- Page 4 This product has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. Power Linking You can link up to 17 Mega Trix™ units at 120 VAC and 32 units at 230 VAC. You should never exceed this number. Fuse To replace the fuse in the Mega Trix™, use the following steps:...
-
Page 5: Menu Options
Mega Trix™ QRG Menu Options Main Level Programming Levels Description DMX Address 001~512 Sets the DMX starting address Auto Program AUTO Turns on auto program Program Speed S 1-S100 Sets auto program speed Sound Active Turns on sound active mode Programming For details on how to program this product, please refer to the product’s... -
Page 6: Dmx Values
Mega Trix™ QRG DMX Linking The Mega Trix™ can work with a DMX controller when linked using a regular DMX serial connection. If you are not familiar with the DMX standard, please download the DMX Primer document from www.chauvetlighting.com. The Mega Trix™ uses a regular DMX data connection for its DMX Connection personalities. - Page 7 Mega Trix™ QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this guide and in the product’s User Manual. The mounting instructions are provided in the Setup chapter of the User Manual. Mounting Bracket Tripod Mounting Hole...
- Page 8 Outside the US, United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our website for contact details. Mega Trix™ QRG – Rev. 04 © Copyright 2011 CHAUVET® All rights reserved Printed in the P.
