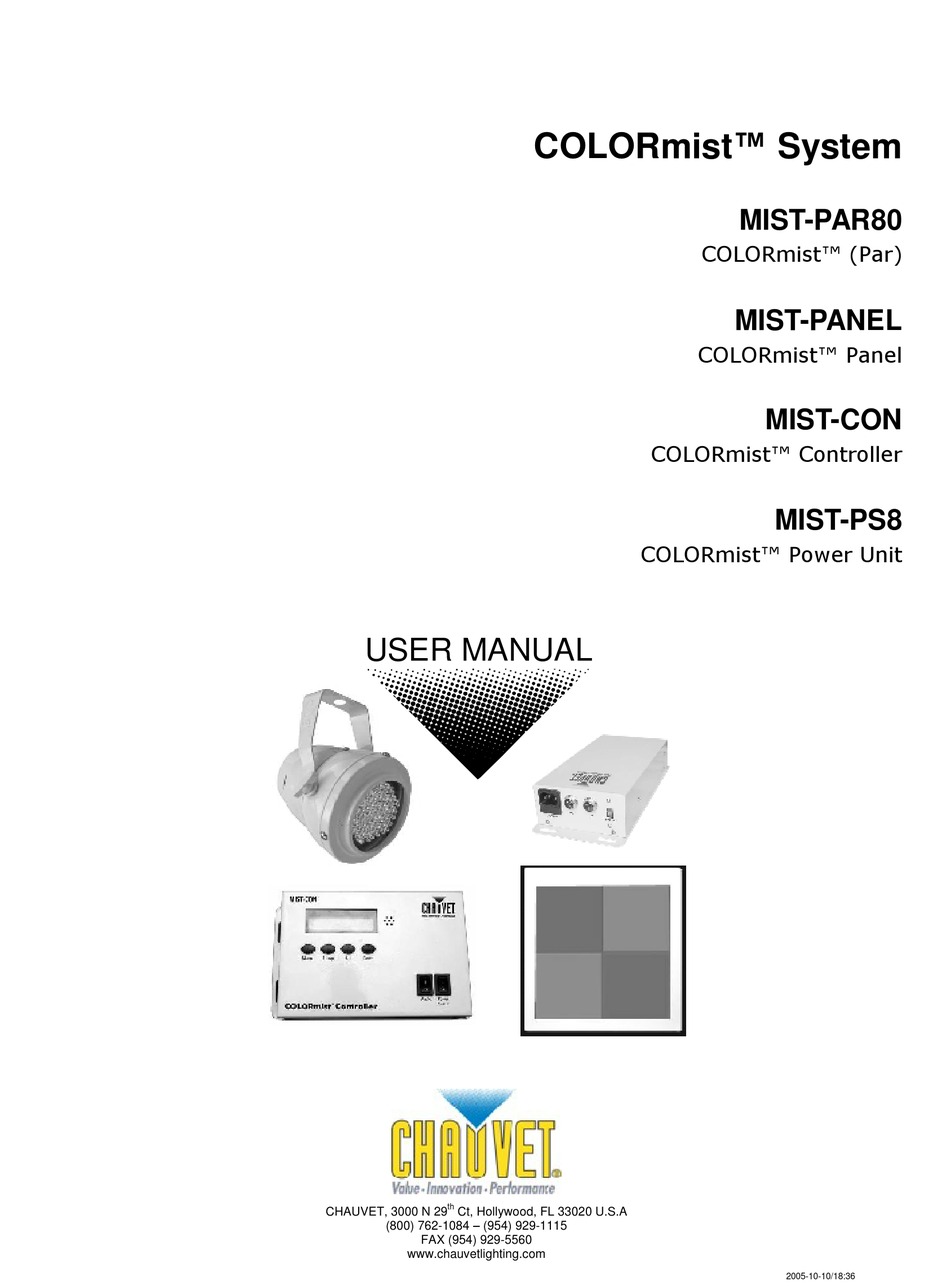

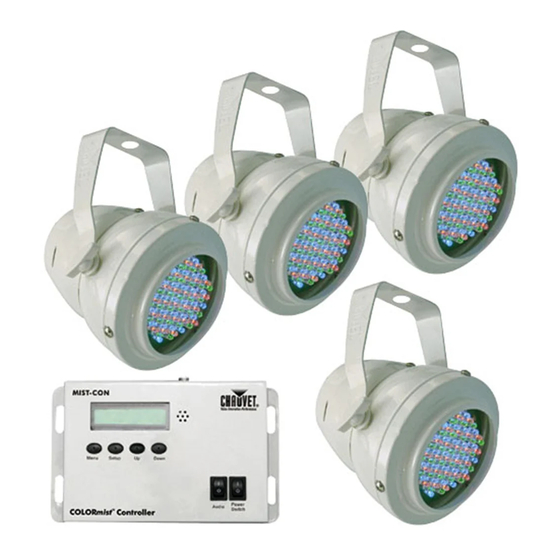

- Page 1 COLORmist™ System MIST-PAR80 COLORmist™ (Par) MIST-PANEL COLORmist™ Panel MIST-CON COLORmist™ Controller MIST-PS8 COLORmist™ Power Unit USER MANUAL CHAUVET, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com 2005-10-10/18:36...
-
Page 2: Table Of Contents
Table of Content BEFORE YOU BEGIN... 3 COLOR ™ S ... 3 MIST YSTEM ... 3 NPACKING NSTRUCTIONS AC P ... 3 OWER ... 3 AFETY NSTRUCTIONS INTRODUCTION ... 4 ... 4 EATURES MIST-CON DMX C ... 4 HANNEL UMMARY ... -
Page 3: Before You Begin
Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET. COLORmist™ System User Manual SYS-PANEL2, Panel Pack System... -
Page 4: Introduction
NTRODUCTION Features COLORmist™ (MIST-PAR80) 80 LEDs per surface - Red (27), Green (27) and Blue (26) Ultra bright LED's Stand alone color change programs using (COLORmist™ Power unit) 7 static colors, 13 color pattern chase programs with adjustable speeds, auto run, sound active mode and RGB Mix via (MIST-CON COLORmist ... -
Page 5: Product Overview
Product Overview COLORmist™ Controller Rear Panel Hanging yoke COLORmist™ NOTICE Both COLORmist™ fixtures are powered using the MIST-PS8 Power Unit and require it for operation. Please refer to page 8 for setup configuration options. COLORmist™ Power 8 COLORmist™ System User Manual SEGMENT BUTTONS UTTONS Menu... -
Page 6: Setup
ETUP Power Warning! Verify that the power indicator label on your unit matches the line voltage applied. All fixtures must be connected to circuits with a suitable Earth Ground. To determine the power requirements for a particular fixture, see the label affixed to the back plate of the fixture or refer to the fixture’s specifications chart. -
Page 7: Operating Instructions
PERATING NSTRUCTIONS Control Panel On the control panel you can set the controller for single action mode where preset programs are run either statically, automatically or by sound-activation or assign a starting DMX channel address. MENU SETUP Menu Diagram System Setup You will need to let the controller be aware of the number of par cans and/or panels connected in series. -
Page 8: Single Action Programs
Single Action Programs Single Action programs are pre-built chase and flow patterns. They can be executed either manually or by DMX control. Depending on the program the following attributes can be modified; Run Speed, Flash Frequency and Color Selection. UMBER ROGRAM Black Static None... -
Page 9: Dmx Control Mode
DMX Control Mode With exception to the system setup process all control functions on the controller can be accessed and executed externally via a Universal DMX controller. First you must connect the LED-CHVA controller to an existing DMX daisy chain. The controller is addressable just like any other DMX device or fixture and it will be controlled as if it were a fixture in most intelligent light consoles. -
Page 10: Appendix
XLR male to female connectors. The shield connection is pin 1, while pin 2 is Data Negative (S-) and pin 3 is Data positive (S+). CHAUVET carries 3-pin XLR DMX compliant cables, DMX-10 (33’), DMX-4.5 (15’) and DMX-1.5 (5’) -
Page 11: Dmx Channel Values
DMX Channel Values EFAULT ALUE 000 009 010 019 020 029 030 039 040 049 050 059 060 069 070 079 080 089 090 099 100 109 110 119 120 ... -
Page 12: Mist-Ps8 (Power Unit) Configurations
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 13: Technical Specifications
Technical Specifications MIST-PANEL Length... 302 mm (11.88 in) Width... 305 mm (12 in) Height ... 29 mm (1.13 in) Weight... 2.22 Kgs (4.9 lbs) Power...via MIST-PS8 Power Unit Bulb ... 72 LEDs (100,000 hours) MIST-PAR80 Length... 140 mm (5.5 in) Width...
