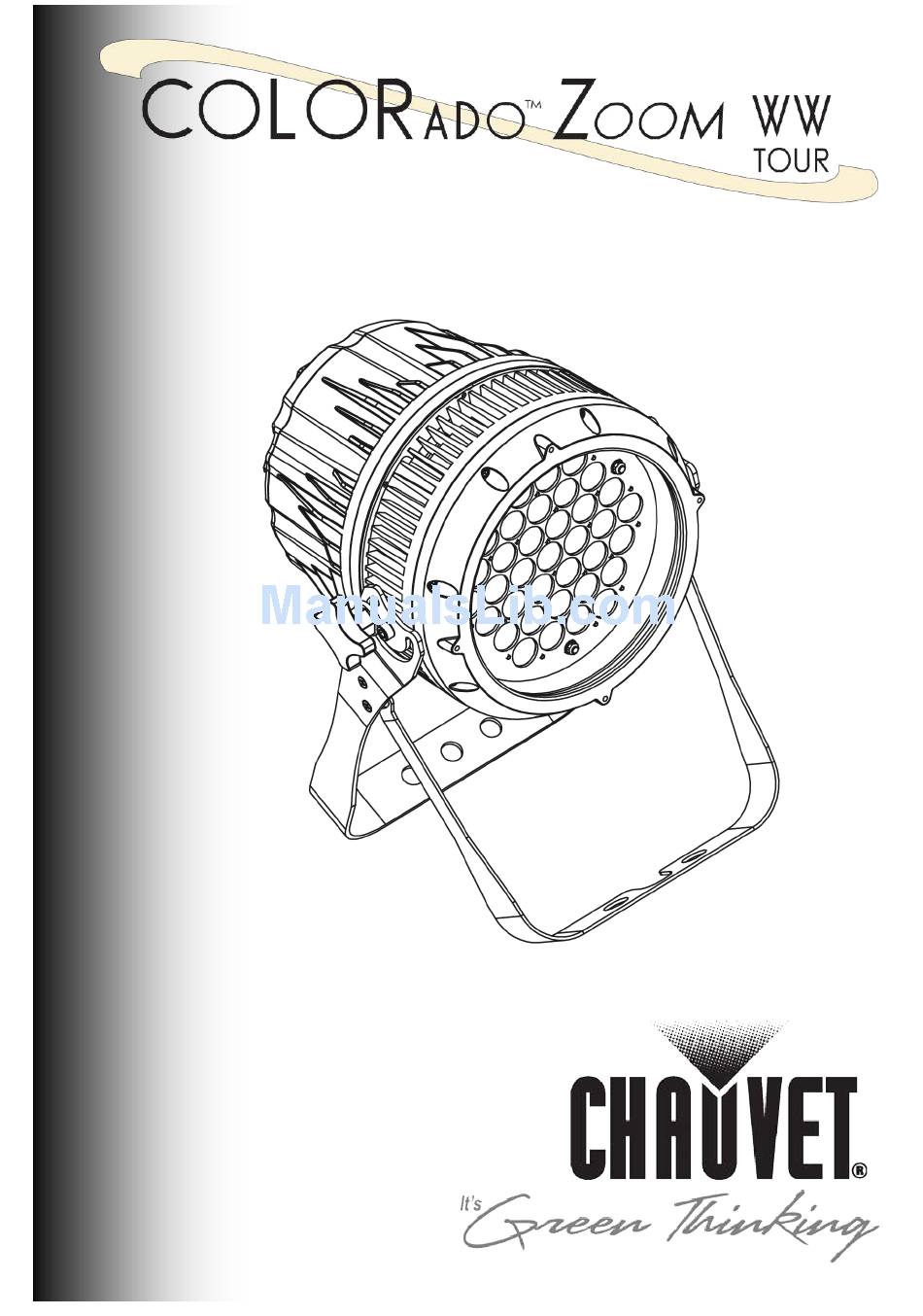

- Page 1 Quick Reference Guide...
- Page 2 Colorado™ Zoom Tour WW QRG About This The Colorado™ Zoom Tour WW Quick Reference Guide (QRG) only contains the product’s connection and mounting information, as well as the Guide menu options and the DMX values. • This Quick Reference Guide does not replace the product’s User Manual, available at www.chauvetpro.com.
- Page 3 Colorado™ Zoom Tour WW QRG • Features 1, 4, or 5-channel DMX control • Operating modes: 1-channel: Dimmer 4-channel: Dimmer, macro, zoom, zoom reset 5-channel: WW, CW, dimmer, zoom, zoom reset • Color temperature control with or without DMX control •...
-
Page 4: Bottom View
Colorado™ Zoom Tour WW QRG Product The Colorado™ Zoom Tour WW is a Warm White LED wash light. A single module houses the internal power supply, the main control, the Description control panel, the LED drivers, the LED boards, and motorized moving lenses, as well as the power and signal connectors. - Page 5 This product has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. Power You can link up to 7 Colorado™ Zoom Tour WW units at 120 Linking VAC, 12 at 208 VAC, or 14 at 230 VAC.
-
Page 6: Overhead Mounting
Colorado™ Zoom Tour WW QRG Mounting Before mounting this product, read the Safety Notes in this guide and in the product’s User Manual. Then, follow the mounting procedure indicated in the Setup chapter of the User Manual. Overhead Mounting Product... -
Page 7: Menu Options
Colorado™ Zoom Tour WW QRG Programming For details on how to program this product, please refer to the product’s User Manual. Control Panel Button Function Description <MENU> Exits from the current menu or function Enables the currently displayed menu or sets the <ENTER>... -
Page 8: Dmx Values
Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighting.com World Wide Web World Wide Web www.chauvetpro.com www.chauvetlighting.co.uk Colorado™ Zoom Tour WW QRG – Rev. 09 © Copyright 2012 CHAUVET® All rights reserved. Printed in the P. R. C. Page 8 of 8...
