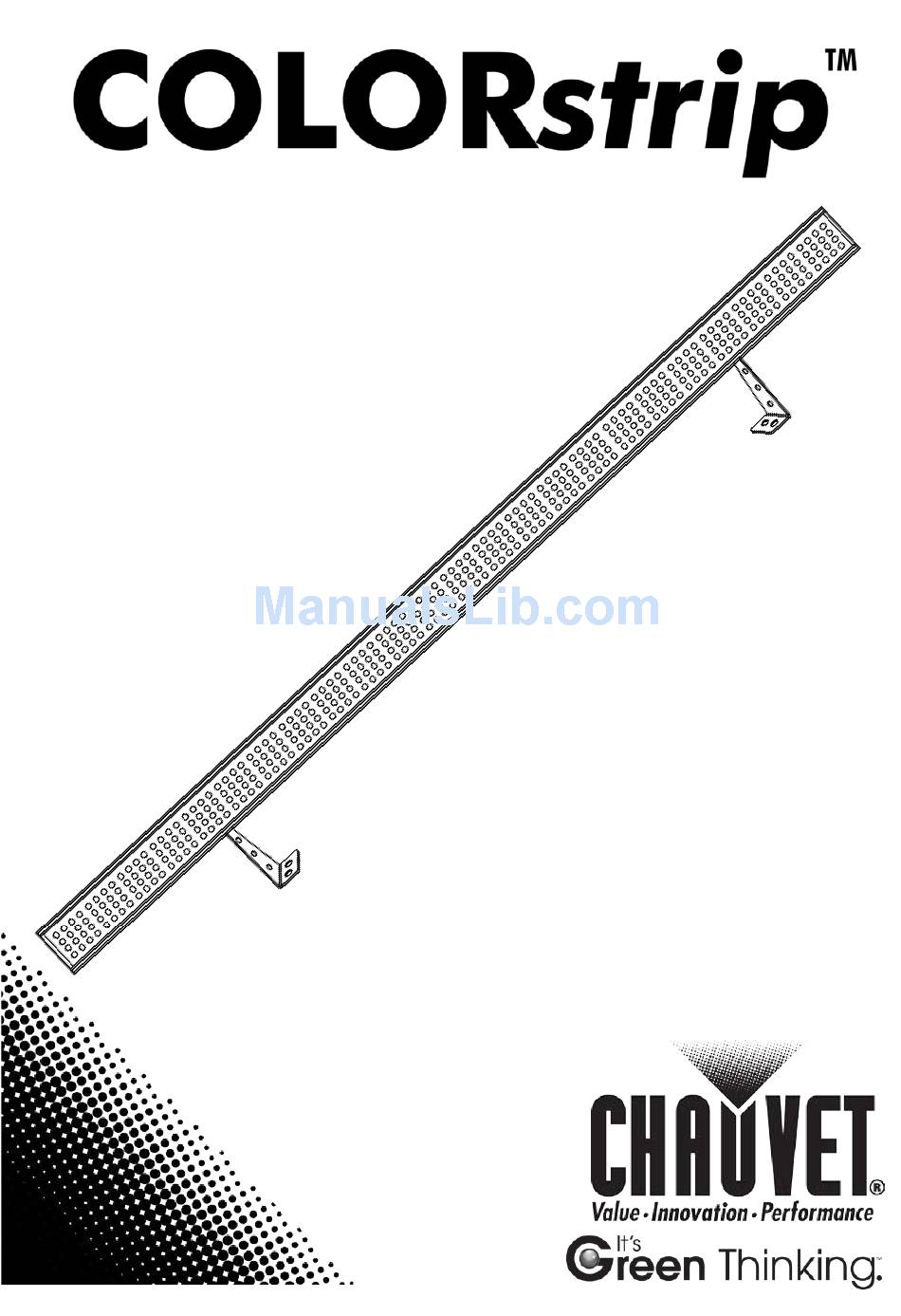

- Page 1 Quick Reference Guide...
-
Page 2: What Is Included
COLORstrip™ QRG About This The COLORstrip™ Quick Reference Guide (QRG) has basic product information such as mounting, menu options, and DMX values. Download the Guide User Manual from www.chauvetlighting.com for more details. The information and specifications contained in this QRG are subject to Disclaimer change without notice. - Page 3 This product has an auto-ranging power supply that can work with an input voltage range of 100~240 VAC, 50/60 Hz. Power Linking You can link up to 15 COLORstrip™ units at 120 VAC and 28 units at 230 VAC. Fuse Replacement Disconnect this product from power.
-
Page 4: Control Panel Description
COLORstrip™ QRG Control Panel Button Function Description <MENU> Exits from the current menu or function. Navigates upwards through the menu list and increases the <UP> numeric value when in a function. Navigates downwards through the menu list and decreases the <DOWN>... - Page 5 COLORstrip™ QRG DMX Linking The COLORstrip™ can work with a DMX controller when linked by DMX serial connections. Instructions for connecting and configuring this product for DMX operation are in the User Manual. If you are not familiar with DMX, download the DMX Primer from www.chauvetlighting.com.
- Page 6 COLORstrip™ QRG Mounting Before mounting, read the Safety Notes. Product Mounting Diagram Mounting Brackets Page 6 of 8...
-
Page 7: Dmx Values
Note: CH. 2 must be within operating values for Auto Run to function. Note: If the COLORstrip™ is in Sound-Active mode and there is no sound for 6 seconds, the product will default back to an Automatic program. Turn the sound sensitivity down to 128 to avoid the automatic chase. - Page 8 Outside the U.S., United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our website for contact details. COLORstrip™ QRG – Rev. 2 © Copyright 2012 CHAUVET® All rights reserved Printed in the P.
