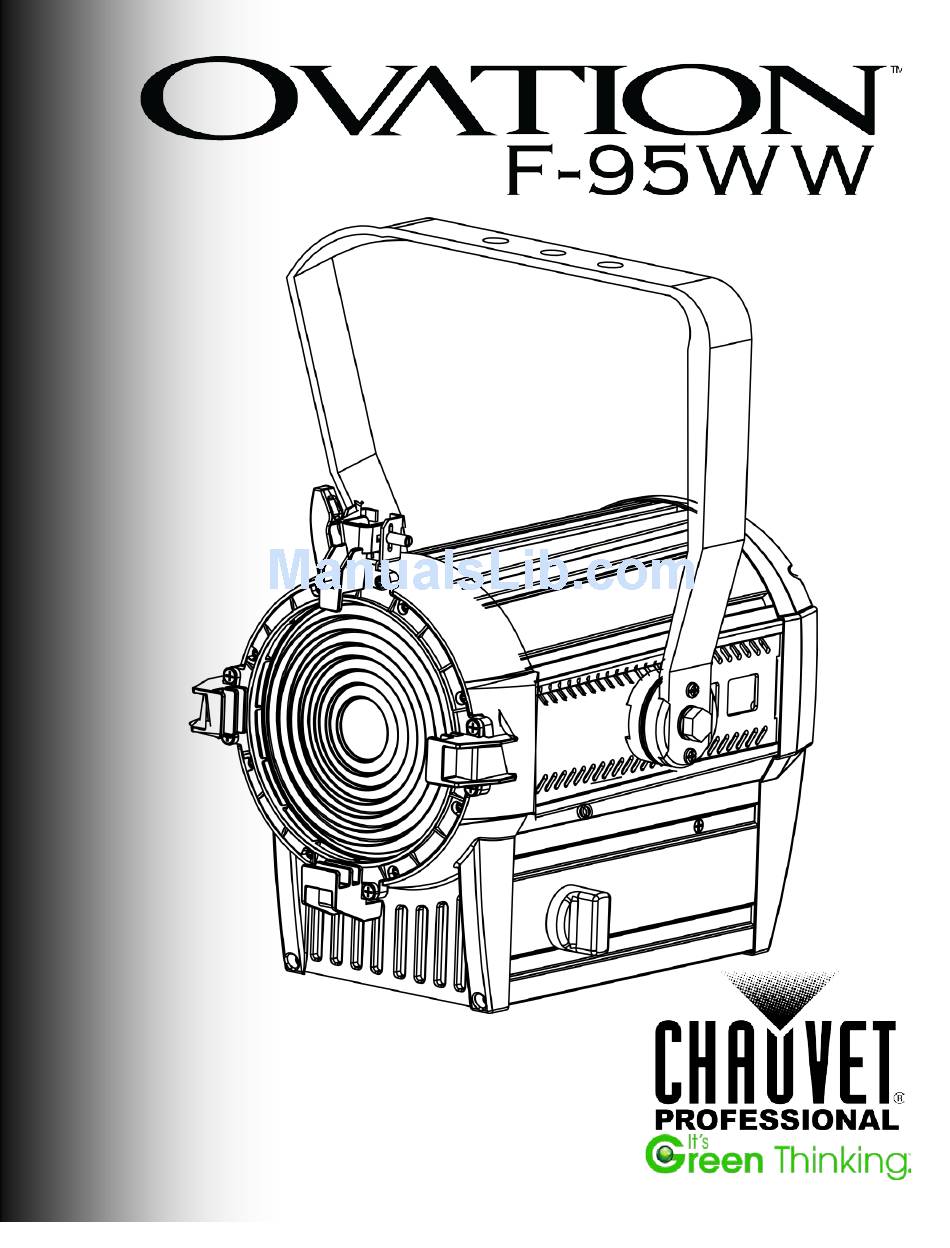

- Page 1 User Manual...
- Page 2 CHAUVET® to make such changes. CHAUVET® may issue a revision of this manual or a new edition to incorporate such changes. Document Revision The OVATION™ F-95WW User Manual Rev. 1 is the first edition of this manual. Go to www.chauvetpro.com for the latest version.
-
Page 3: Table Of Contents
Dimmer Curves ..................................12 Control Panel Lock ..................................12 Passcode ....................................12 Menu Access Lock ..................................12 Reset ......................................13 Performance Power Output Options ............................13 Manual Zoom Control ................................. 13 Master/Slave Mode ..................................13 OVATION™ F-95WW User Manual Rev. 1... - Page 4 Table of Contents 5. Technical Information ..........................14 Product Maintenance ..............................14 Technical Specifications ............................. 15 Returns ..................................16 Contact Us .................................. 16 -ii- OVATION™ F-95WW User Manual Rev. 1...
-
Page 5: Before You Begin
Failure to report damage to the carrier immediately may invalidate your claim. In addition, keep the box and contents for inspection. For other issues, such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Manual Conventions Convention Meaning 1–512... -
Page 6: Product At A Glance
· The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at a higher temperature. · In case of a serious operating problem, stop using this product immediately! In the unlikely event that your CHAUVET® product may require service, contact CHAUVET® Technical Support. Expected LED LEDs gradually decline in brightness over time, mostly because of heat. -
Page 7: Introduction
2. Introduction Description The OVATION™ F-95WW is a warm white LED wash product featuring a compact and lightweight design that delivers a beautiful soft flat field with high-quality glass optics. Its massive zoom range of 10° to 54° and beautifully soft, warm white wash make it a versatile Fresnel. -
Page 8: Overview
Gel Frame Holder Zoom Adjustment Knobs Front View Side View Dimmer Handle Adjustment Knob Menu Buttons powerCON® Output powerCON® Input Display Fuse Holder Rear View 3- and 5-pin 3- and 5-pin DMX In DMX Out OVATION™ F-95WW User Manual Rev. 1... -
Page 9: Dimensions
Introduction Dimensions 11 in 279 mm 15.2 in 389 mm 12.8 in 325 mm OVATION™ F-95WW User Manual Rev. 1... -
Page 10: Setup
Each OVATION™ F-95WW has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the power requirements for each OVATION™ F-95WW, refer to the label affixed to the product. You can also refer to the Technical Specifications chart in this manual. -
Page 11: Power Linking
Setup Power Linking The OVATION™ F-95WW supports power linking. You can power link up to 15 units on 120 V; up to 25 units on 208 V; or up to 28 units on 230 V. This product comes with a Neutrik® powerCON® input power cord. This product does not come with a power linking cable;... -
Page 12: Mounting
Before mounting this product, read and follow the Safety Notes. Orientation Always mount this product in a safe position. The OVATION™ F-95WW may be mounted in any position; however, make sure there is adequate room for ventilation, configuration, and maintenance. Rigging CHAUVET®... -
Page 13: Operation
Scrolls down the list of menu options or decreases the numeric value when in a function You can set the starting address of the OVATION™ F-95WW in the 001–512 DMX Control Options range. This enables control of up to 170 products in the 3-channel STD.P personality. -
Page 14: Menu Map
PERF STDO level Maintains LED cooling by using fan and POWR allowing full power output SELF No DMX signals are sent through DMX output MCON Sends DMX signals to OVATION™ F-95WW MAST slaves -10- OVATION™ F-95WW User Manual Rev. 1... -
Page 15: Dmx Values
2. Select the DERR programming level. · Select BLAK to turn off the LEDs when the signal is lost. · Select SAVE to use the last command programmed when the signal is lost. OVATION™ F-95WW User Manual Rev. 1 -11-... -
Page 16: Dimmer - Menu Control
Operation Dimmer - Menu To adjust the light output of the OVATION™ F-95WW, select the dimmer setting as Control follows. 1. Go to the DIM main level. 2. Select the desired dimmer setting D.000–D.100 (0–100% light output). Dimmer - Manual Manually adjust the light output by using the dimmer adjustment knob, as follows. -
Page 17: Reset
The Master/Slave mode allows a single OVATION™ F-95WW (the “master”) to control the actions of one or more OVATION™ F-95WW units (the “slaves”) without the need of a DMX controller to control the slaves. The master will be set to operate in Master mode (MAST), while the slaves will be set to operate in Slave mode (SLAV). -
Page 18: Technical Information
· Wipe any dirt or grime to the outside edges of the lens surface. · Gently polish the lens surfaces until they are free of haze and lint. Always dry the external surfaces thoroughly and carefully after cleaning them. -14- OVATION™ F-95WW User Manual Rev. 1... -
Page 19: Technical Specifications
Cooling System 113 °F (45 °C) Fan-Assisted Convection I/O Connectors Connector Type Channel Range 3- and 5-pin XLR Sockets 1, 2 or 3 Ordering Product Name Item Code UPC Number OVATION™ F-95WW 01030721 781462210694 OVATION™ F-95WW User Manual Rev. 1 -15-... -
Page 20: Returns
Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. Clearly label the package with an RMA number. CHAUVET® will refuse any product returned without an RMA number.
