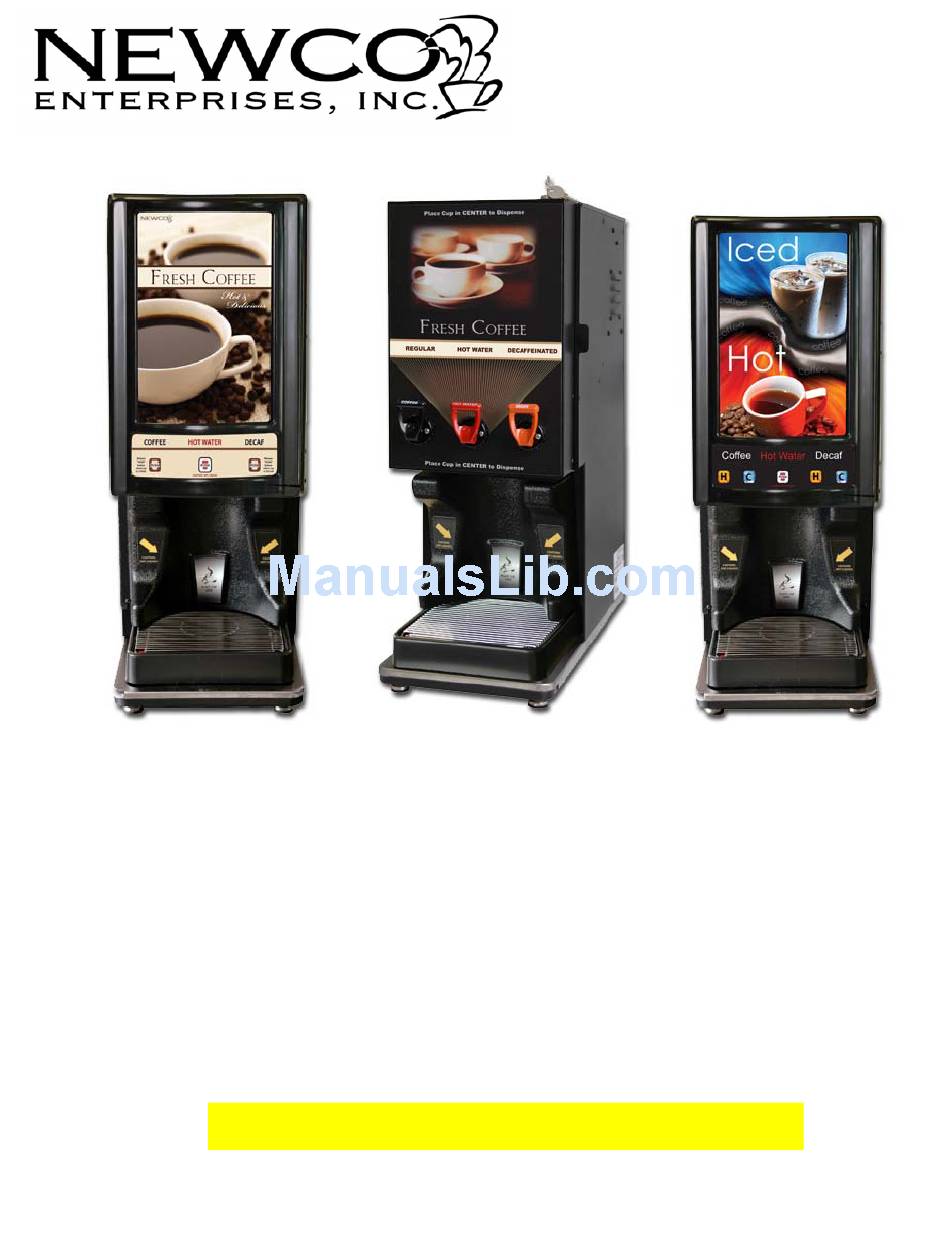

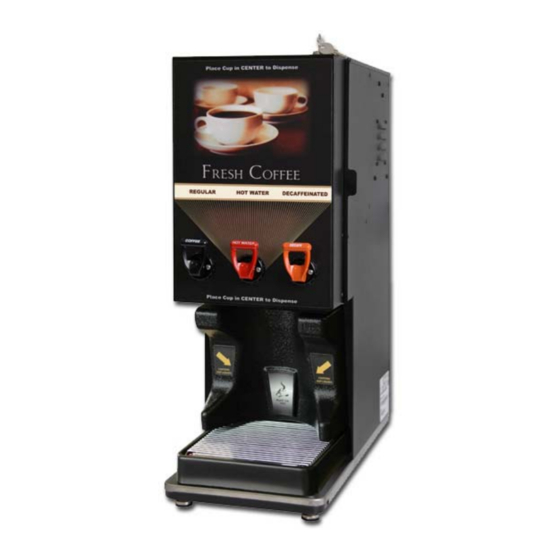

- Page 1 Model LCD-2 (Hot Only) Model LCD-2 (Hot Only) Model LCD-2 Dual (Hot/Cold) PN: 120309 Stainless Front Door PN: 120441 3 Dispensing Handles PN: 120496 Installation Programming Guide LCD-2 By NEWCO Enterprises...
- Page 2 Place Machine on a Level Countertop Surface Connect ¼ Inch Flare water Supply to the Water Inlet located on lower Left Rear of the Machine. NEWCO recommends copper tubing for use as water supply to all of our brewing equipment) Turn water Supply On Plug or wire brewer to the appropriate voltage circuit as indicated on the serial tag.
- Page 3 REPAIR, REPLACEMENT OR REFUND. In no event shall NEWCO be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claim’s of BUYER’S customers, cost of capital, cost of downtime, cost of substitute equipment, facilities or services, or any other special, incidental, or consequential damage.
- Page 4 Section 2 Set-Up Programming Instructions: Open machine cabinet door and locate the 3-switch control panel w/lighted display screen. The temperature will show on the display screen. As shown in figure 1. Fig. 1 Step 1. Enter a Programming Mode Press and hold the center switch labeled “Enter”. After five seconds, the display will flash “Flu” approximately 13 times.
- Page 5 Step 2. Adjust Temperature The machine features an adjustable temperature range of 100-200F. Use the + or – switch to scroll to the desired temperature setting. (To turn off the heater press the + or - switch until “OFF” is displayed.) As shown in figures 3 &...
- Page 6 Step 4. Enable/Disable Alarm This machine features a buzzer alarm that will sound to notify the operator when one of the following three things has occurred: • BIB Tracking has detected an empty BIB (See step 4) • A machine malfunction has been detected •...
- Page 7 Program selection single product: To program a selector switch to create a drink using the product on the right, enter the pump speed from Chart A in to Pump 2 and set the speed of Pump 1 to 0:00. Program selection blend products: To program a selector switch to create a blend using both products, set the speeds of Pump 1 and Pump 2 using Chart B as a guideline.
- Page 8 The front nozzle determines the flow rate. The back nozzle is for hot water use only. 800203, Low Flow Nozzle (Small Diameter Opening) 800204, High Flow Nozzle (Large Diameter Opening) 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 9 To Program a selector switch: • On the 7-selector switch control panel, press the switch that you want to program. The display will change to identify the switch that you have chosen. (b01 thru b06 are the switch identifiers.) See figures 9 & 10. NOTE: The optional liquid coffee dispensing unit with a stainless front door uses handles.
- Page 10 (If blending two products, use chart B as a guide.) Refer to figure 12. • NOTE: (FOR LCD-2 Dual Only) Press “Enter” to save. “HOt” or “CLd” will appear on the display. This entry chooses whether the selected button will use ambient temperature water (“CLd”) from the water supply line or hot water (“HOt”) from the tank for dispensing.
- Page 11 Procedure: Setting Portion Control In Normal Run Mode To program a switch for portioned controls, while in run mode, dispense time must start at “0:00" (See figure 14) to do this: Place the desired cup (or carafe) under the dispense head. Press and hold the “Enter”...
- Page 12 Section 3 Service Level Programming Functions: Sanitizing Instructions Press the + switch to enter sanitize mode. SAN will appear in the display. (As shown in figure 15) Fig. 15 Remove the product BIBs from the machine and connect a BIB of sanitizing solution to the PUMP 1 BIB connector.
- Page 13 Prime Pump Feature: This feature allows you to enter directly into a Prime Pump mode without sanitizing. Press the - switch to enter the Prime Pump mode. Follow the same Prime Pump procedures from Sanitizing Instructions. BIB Counter Auto-Reset Feature: If enabled during the “Set-Up Programming”...
- Page 14 Using finger and thumb only to prevent over-tightening, thread the BIB connector on to the BIB fitment until Fig. 3 seated as shown in figure 3. Place the product in the storage compartment as shown in figure Fig. 4 Position the tubing as shown in figure 5 Fig.
- Page 15 Cleaning & Sanitizing Instructions: Remove product from storage area and disconnect BIB connectors as shown in figures 1 & 2. Fig. 1 Fig. 2 Place an empty container in the dispense area of the machine as shown Fig. 3 in figure 3. Connect the sanitizing solution to the BIB connector for Pump 1 (the connector on the left as you face the machine from the front) and place sanitizing BIB on the product shelf as shown in figures 4 &...
- Page 16 Press the Pump 1 button to enter sanitizing mode as Fig. 6 shown in figure 6. Press the Pump 1 button again to begin sanitizing. Sanitization cycle will run for 2-1/2 minutes. Buzzer alarm will sound 3 beeps when cycle is complete. Fig.
- Page 17 When cycle is finished remove sanitizing solution and reinstall products as shown in figure 10. Fig. 10 Press and hold Pump 1 button until product flows from dispense head to prime pump 1 as shown in figure 11. Fig. 11 Press enter to proceed to Pump 2 as shown in figure 12.
- Page 18 Press enter to return to the normal operating mode as shown in figure 14. Fig. 14 Flushing Instructions: Flush the mixing chamber by pressing and holding the “Enter” button for 5 seconds until “FLU” appears on the display. Release the “Enter” button. Press and hold either the + or – button to flush the mixing chamber with water.
-
Page 19: Error Messages
Error Messages: Error Description Cause What to Check Number tHU/ tHL Thermistor warning – Resistance extremely high from This warns you that 1 immediately upon detection the upper or lower thermistor will thermistor has failed. Nothing machine will beep twice and cause or the resistance extremely is required at this time as the show the warning message for... - Page 20 Error Messages Cont’d: Bad (Open) Motor Driver - The Bad/open motor driver. Pump 0 or Retry pump if the error still motor errors (Er7 and Er8) do pump 1. occurs then replace main not cause a system error and board. will not shut down the machine.
- Page 21 Dimensions & Electrical Specifications: LCD-2 LIQUID COFFEE DISPENSER **Electrical Specs** PN: 120309, LCD-2 120V 1750W 15 Amps PN: 120354, LCD-2 120V/240V 3500W 15 Amps 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 22 Electrical Schematics: 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 23 Electrical Schematics: 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 24 Electrical Schematics: 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
-
Page 25: Spare Parts
Spare Parts: ITEM # IMAGE DESCRIPTION Base Assembly & Door Assembly 120313 Base Assembly, LCD-2 100054 Washer, #8 External Lock SS 100061 Nut, 8-32 Hex SS 100104 Washer, 3/8” External Lock Zinc 105048 Screw, 8-32 x 3/8” With Washer PPHMS SS 111322 Trim, GX Radius Base 3/4"... - Page 26 Spare Parts: ITEM # IMAGE DESCRIPTION Base Assembly & Door Assembly - Continued 120334 Door Assembly, LCD-2 Hot 100055 Screw, 4-40 x 3/8” PPHMS SS 100191 Nut, 6-32 Hex SS 100212 Washer, #6 External Lock SS 100243 Nut, 4-40 Hex SS...
- Page 27 IMAGE DESCRIPTION Base Assembly & Door Assembly - Continued 110766 Washer, #4 Internal Lock 120335 Door, Vacuformed Plastic LCD-2 120336 Panel, Inner Door LCD-2 120350 Membrane Switch, 7 Button LCD 120351 Label, Switch: Coffee – Hot Water – Decaf LCD...
- Page 28 Spare Parts: ITEM # IMAGE DESCRIPTION Base Assembly & Door Assembly - Continued 121403 Display Board Assembly, LCD-2 120421 Light Assembly, LED Strip 781259 Female, Hinge 511050 Bushing, Snap Split 3/4" 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 29 Spare Parts: DESCRIPTION ITEM # IMAGE Tube Assemblies, BIB & Others 120422 Tube Assembly, BIB 12.00” 120383 Silicone Tubing, Grey 1/4 x 1/2 x 12.00” [111240] 107117 Connector, Scholle 1910L 120683 Clamp, SNP6-10C2 Black [Small] 120864 Clamp, SNP8-10C2 Black [Large] 205189 Elbow, 1/4 x 1/4 Trimmed 120387...
- Page 30 Spare Parts: DESCRIPTION ITEM # IMAGE Tube Assemblies, BIB & Others - Continued 120681 Silicone Tubing, 1/8” x 1/4" x 12.00” [773186] 121315 Tubing, SS .312 x .020 x 1.00” [100966] 701038 Silicone Tubing, 3/8” x 5/8" x 4 3/4” [152213] 701702 Silicone Tubing, 3/8”...
- Page 31 Spare Parts: ITEM # IMAGE DESCRIPTION Tank Assembly 120553 Tank Assembly, 1750W LCD-2 100030 Gasket, Brass .566 ID 100149 Elbow, Male 1/4C x 1/8NPT 100166 Sleeve, 3/8” Compression Brass 100170 Nut, 3/8” Compression Brass 100431 Nut, 9/16-24 x 11/16H Brass...
- Page 32 Sleeve, 1/4" Self Aligning Compression Brass 110946 Nut, 1/4" Self Aligning Compression Brass 119879 Nut, Faucet 3/8-18 Chrome Plated 119882 Gasket, Tank 120332 Lid Assembly, 1750W LCD-2 100190 Nut, Jam 1/2-20 Jam Brass 100269 Bracket, Hi Limit Thermostat 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 33 100409 Gasket, .520 ID Brass 500396 Probe Assembly, 1.537” With Bushing 111593 Hi Limit Thermostat, Vertical Tabs 221F 25A 120333 Lid Only, LCD-2 Tank 151677 Temperature Probe, Dual 7.312” 152207 Plug, Tank Cover Silicone Natural 202025-10 Element Tank, 1750W 120V 500038 Silicone Grommet, No Slit .060...
- Page 34 Spare Parts: ITEM # IMAGE DESCRIPTION Tank Assembly - Continued 800297 Tube, Vent 6.5” 120388 Fill Tube, LCD-2 120549 Tank Only, LCD-2 202044 Insert, Tubing 3/16” 781468 Fitting, Tea Modified [800236] 800244 Nylon Gasket, .671 x .937 x .062 Solenoid Valve, Dump 12V INVNSYS GS56...
- Page 35 Spare Parts: ITEM # IMAGE DESCRIPTION Panel Assembly 120658 Front Panel Assembly, LCD-2 [SS Model] 120545-BPC Front Panel Assembly, LCD-2 [BPC Model] 100191 Nut, 6-32 Hex SS 100212 Washer, #6 External Lock SS 100409 Gasket, .520 ID Brass 103277 Retainer, Tubing...
- Page 36 IMAGE DESCRIPTION Panel Assembly - Continued 120391 Tube/Hose, 1/4 x 3/16 Modified 120428 Mounting Bracket, Pump LCD-2 500024 Screw, 2.6 mm x 5.0 mm FHMS SS Chamber, Mix Double Stem 104161 105043 Screw With Washer, 6-32 x 3/8” PPHMS SS 111634 Hose Clamp, .459ID...
- Page 37 Knurled Nut, 8-32 Brass 800203 Elbow, Spray BF [Small Diameter Opening] 800204 Elbow, Outlet BF [Large Diameter Opening] 120493 Kit, Pump Head Assembly LCD-2 120509 BevClean, 1 Gallon 120513 Connector – Tubing Cleaning Kit [BevClean] 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 38 Spare Parts: ITEM # IMAGE DESCRIPTION Valve Assembly 781782 Valve Assembly, Mini Capp 100161 Tube Assembly, Copper 1/4" x .030 x .88 100177 Elbow, Male 1/4F x 1/8P 101377 Fitting, Solenoid 1/8P 102383 Valve, Solenoid TP 3/4 x 1/4 202105 Flow Assembly, Flare To Flare .50 GPM 100291 Flow Washer, .50 GPM Light Blue...
- Page 39 Valve Assembly – Continued 202103 Strainer/Flow Control Body With Caps, Only 790019 Nylon Gasket, Flow Control Drip Tray Assembly 121431 Molded Cup Guide, LCD-2 Label Set, “Place Cup Here” 121436 “Caution Hot Liquids” 773214 Drip Tray Grid, Only 773213 Drip Tray Only, With Indicator 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 40 Spare Parts: ITEM # IMAGE DESCRIPTION Miscellaneous Components Lock Washer, #8 SS 100054 100061 Nut, 8-32 Hex SS 100408 Plug, Barbed Tubing PP 101035 Grommet, Strain Relief 14/3 104015 Bezel, Adaptor Black Plastic 104137 Washer, Star Lock .690 ID 104151 Check Valve, Duck .301 x 0.656 105048 Screw, 8-32 x 3/8”...
- Page 41 Spare Parts: ITEM # IMAGE DESCRIPTION Miscellaneous Components - Continued 105115 Transformer, 120VP 24VCT 40VA 110626 On – Off Switch, Power 110958 Relay, 12V DC 111634 Hose Clamp, .459ID 111635 Hose Clamp, .574ID 111668 Acorn Nut Locking 6-32, SS 120436 Spring Retainer Clip, Mix Chamber 781843 Power Cord, 14/3 With Shrink...
- Page 42 Spare Parts: ITEM # IMAGE DESCRIPTION Miscellaneous Components - Continued 120567 Control Board Assembly, LCD-2 201222 Frame, Switch 511027 Screw, 8-32 x 3/8” SPHMS SS 700021 Nut, Knurled 8-32 Brass 701646 Hose Clamp, Plastic 781258 Hinge, Male Cappuccino 781697 Clamp, Adhesive 500354 Probe, 1.537”...
- Page 43 Spare Parts: ITEM # IMAGE DESCRIPTION Miscellaneous Components - Continued 500350 Grommet, Probe Bushing 5/16” 500351 Bushing, Probe Insulator Probe Assembly Kit, 1.537” 500382 [Consists of: 1 ea. 500350, Probe Assy., & Instruction] Screw, 8-32 X 1 3/8” PPHMS SS 781539 [Used on Fan Assembly] 103600...
- Page 44 Spare Parts: ITEM # IMAGE DESCRIPTION Door Assembly: Metal Door Model 120546-BPC Door Assembly, LCD-2 Hot Metal Door 100055 Screw, 4-40 x 3/8” PPHMS SS 100191 Nut, 6-32 Hex SS 100212 Washer, #6 External Lock SS 100243 Nut, 4-40 Hex SS...
- Page 45 Spring, Nudger Faucet 120452 Cam Lock 50 Series 120453 Striker Plate, Lock 50 series 120480 Label, LCD-2 Metal Door R/HW/D 3 Faucet 120481 Bracket Assembly, Micro Switch [Metal Door] 120558 Lock, Cam Sealed Black 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
- Page 46 Spare Parts: ITEM # IMAGE DESCRIPTION Door Assembly: Metal Door Model - Continued 120568 Handle, Decaf LCD [Metal Door] 120569 Handle, Hot Water LCD [Metal Door] 120570 Handle, Coffee LCD [Metal Door] 120571 Pin, Handle Faucet LCD 120573 Stem, Faucet LCD 120594 Bonnet With Holes 511050...
- Page 47 Additional LCD-2 Models LCD-2, 240V, Hot 120354 LCD-2, 120V, Hot With Fan 120532 LCD-2, 240V, Hot, Metal Door 120502 LCD-2, 240V, Hot, Metal Door With Fan 120559 LCD-2, 240V, Hot/Ambient (Dual Temp.) 120449 LCD-2, 120V, Hot/Ambient With Fan (Dual Temp.) 120520 13-May-13...
- Page 48 13-May-13 Phone: 1.800.325.7867 Fax: 1.636.925.0029 www.newcocoffee.com...
