Homelite UT80522B Quick Reference Manual

WARNING:
This Quick Reference Guide is not a substitute for reading the operator's manual. To reduce the risk of injury or death, user must read and understand operator's manual before using this product. All page references refer to
the operator's manual.
FIRST TIME ASSEMBLY
Attach the wheel assembly (see page 8).
Connect the high pressure hose to the pump
1 6
(see page 9).
Completely uncoil and straighten high pressure
Install the handle (see page 8).
2
hose to prevent kinks.
7 Connect your garden hose to the pressure washer
(see page 9).
Install the upper and lower spray wand holder
3
(see page 8).
Completely uncoil garden hose or remove
completely from reel to prevent kinks.
Turn water faucet on fully.
Make sure there are no leaks.
With no nozzle installed, squeeze the trigger
to relieve air pressure. Hold the trigger until a
steady stream of water appears.
Add entire bottle of oil provided to the pressure
8
washer (see page 10).
Assemble the trigger handle (see page 9).
4
Connect the high pressure hose to the trigger handle
5
(see page 9).
Turn the fuel valve to OFF before adding oil.
Set unit on flat surface so engine is level.
Remove dipstick, wipe clean, put back in hole
(but don't screw in) and check oil level.
DO NOT OVERTILT THE UNIT!

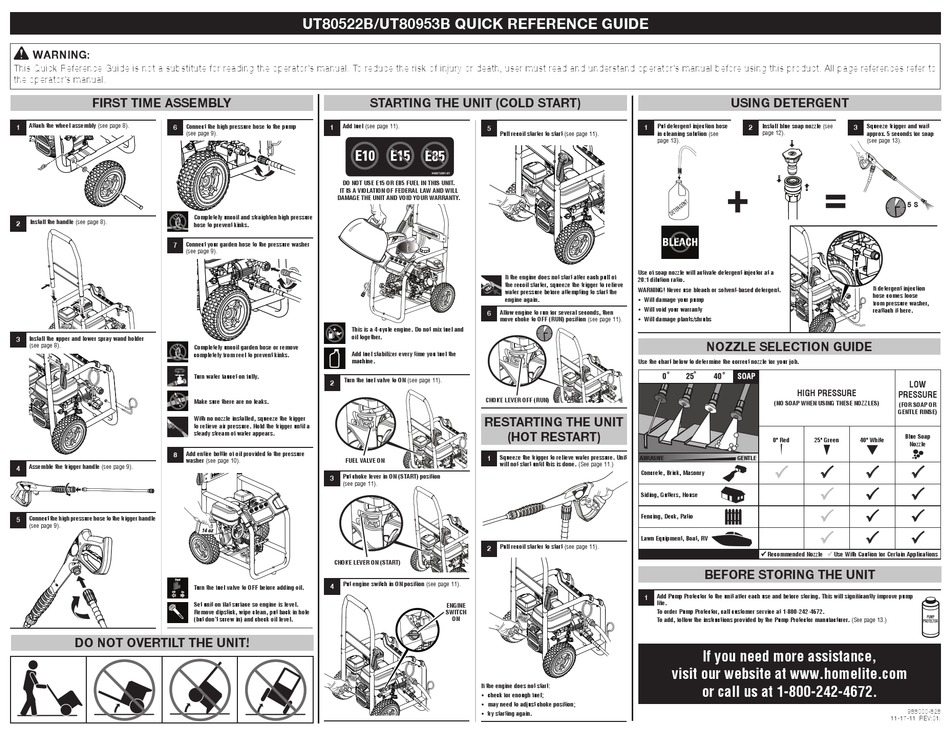

UT80522B/UT80953B QUICK REFERENCE GUIDE
STARTING THE UNIT (COLD START)
Add fuel (see page 11).
1
DO NOT USE E15 OR E85 FUEL IN THIS UNIT.
IT IS A VIOLATION OF FEDERAL LAW AND WILL
DAMAGE THE UNIT AND VOID YOUR WARRANTY.
This is a 4-cycle engine. Do not mix fuel and
oil together.
Add fuel stabilizer every time you fuel the
machine.
Turn the fuel valve to ON (see page 11).
2
FUEL VALVE ON
Put choke lever in ON (START) position
3
(see page 11).
CHOKE LEVER ON (START)
Put engine switch in ON position (see page 11).
4
ENGINE
SWITCH
ON
If the engine does not start:
• check for enough fuel;
• may need to adjust choke position;
• try starting again.
Put detergent injection hose
1
5
in cleaning solution (see
Pull recoil starter to start (see page 11).
page 13).
Use of soap nozzle will activate detergent injector at a
If the engine does not start after each pull of
20:1 dilution ratio.
the recoil starter, squeeze the trigger to relieve
WARNING! Never use bleach or solvent-based detergent.
water pressure before attempting to start the
engine again.
• Will damage your pump
• Will void your warranty
Allow engine to run for several seconds, then
6
move choke to OFF (RUN) position (see page 11). • Will damage plants/shrubs
5 S
Use the chart below to determine the correct nozzle for your job.
CHOKE LEVER OFF (RUN)
RESTARTING THE UNIT
(HOT RESTART)
Squeeze the trigger to relieve water pressure. Unit ABRASIVE
1
will not start until this is done. (See page 11.)
Concrete, Brick, Masonry
Siding, Gutters, House
Fencing, Deck, Patio
Lawn Equipment, Boat, RV
Pull recoil starter to start (see page 11).
2
Add Pump Protector to the unit after each use and before storing. This will significantly improve pump
1
life.
To order Pump Protector, call customer service at 1-800-242-4672.
To add, follow the instructions provided by the Pump Protector manufacturer. (See page 13.)
USING DETERGENT
Install blue soap nozzle (see
2
page 12).
NOZZLE SELECTION GUIDE
HIGH PRESSURE
(NO SOAP WHEN USING THESE NOZZLES)
0º Red 25º Green
GENTLE
 



 Recommended Nozzle Use With Caution for Certain Applications

BEFORE STORING THE UNIT
If you need more assistance,
visit our website at www.homelite.com
or call us at 1-800-242-4672.
Squeeze trigger and wait
3
approx. 5 seconds for soap
(see page 13).
5 S
If detergent injection
hose comes loose
from pressure washer,
reattach it here.
LOW
PRESSURE
(FOR SOAP OR
GENTLE RINSE)
Blue Soap
40º White
Nozzle
 
 
 
 
PUMP
PROTECTOR
988000-828
11-17-11 (REV:01)
