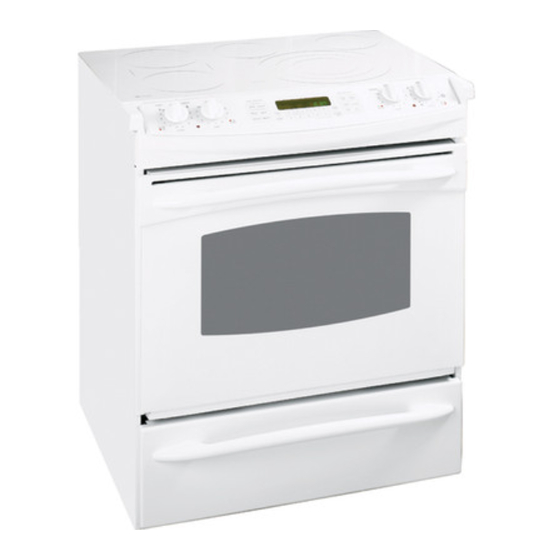

GE JS905 Installation Instructions Manual

Self-cleaning radiant electric slide-in range

Advertisement

Installation
Instructions
If you have questions, call 1.800.GE.CARES or visit our website at:
ge.com

Before You Begin

Read these instructions carefully and completely.
IMPORTANT
instructions for local inspector's use.
IMPORTANT
governing codes and ordinances.
PARTS INCLUDED
Rear Filler
2 Screws
MATERIALS YOU MAY NEED
Tin Snips
Lag Bolts
(For Anti-Tip Bracket Mounted
on Concrete Floors Only)
(UL Approved 40 or 50 AMP)
4-Wire Cord
OR
3-Wire Cord
4' long
31-10621-3
09-08 JR
—Save these
—Observe all
Screws
Anti-Tip Bracket
Anchor Sleeves
Squeeze Connector
(For Conduit
Installations Only)
4' long
Self-Cleaning Radiant
Electric Slide-In Range
JSP42, JS968, JS900, JS905, JSP46
• Note to Installer—Be sure to leave these
instructions with the consumer.
• Note to Consumer—Keep these
instructions for future reference.
• Proper installation is the responsibility
of the installer and product failure due
to improper installation is NOT covered
under warranty.
• NOTE—This appliance must be properly
grounded.
TOOLS YOU WILL NEED
1/8" Drill Bit and
Electric or Hand Drill
Level
Tape Measure
Straight Edge
or Square
Hand or Sabre Saw
1
Wrench or Pliers
(for 1-7/16" Nut)
1/4" Nut Driver
Pliers
Pencil
Safety Glasses

Advertisement

Table of Contents
loading

Summary of Contents for GE JS905

  • Page 1: Installation Instructions

    Installation Instructions If you have questions, call 1.800.GE.CARES or visit our website at: ge.com Before You Begin Read these instructions carefully and completely. IMPORTANT • —Save these instructions for local inspector’s use. IMPORTANT • —Observe all governing codes and ordinances.
  • Page 2: Important Safety Instructions

    Be sure your appliance is properly installed and grounded by a qualified technician. For personal If you pull the range out and away from the wall for any reason, make sure the Anti-Tip bracket is engaged when the range is pushed back against the wall.
  • Page 3: Pre-Installation Checklist

    To obtain Kits: a. Visit GE Web Site (See page 1) b. Call GE Answer Center (See page 1) c. Contact Dealer Move range indoors in front of cabinet opening.
  • Page 4: Storage Drawer Removal

    Do not lay the door on its handle. This could cause dents or scratches. Remove packing materials. Remove labels on door, plastic on trim and panel, and all tape around the range. Hinge Hinge Unlocked Unlocked...
  • Page 5: Pre-Installation Cutout And Required Clearances

    30” ranges conform to U.L. requirements for 0” spacing from vertical walls below countertops. Allow 1/4” minimum clearance at the back wall above the countertop. Wall coverings, counters and cabinets around range must withstand heat (up to 194 F) generated by the range.
  • Page 6: Standard Installation

    Installation Instructions Standard Installation STANDARD INSTALLATION 9/16” Min. Flat 29-15/16”– 30-1/16” Smooth Cut If the construction of your cabinet cannot provide a 1/4” flat area at the back of the countertop opening, consider changing the countertop to accommodate this dimension. See Alternate Construction section.
  • Page 7: Electrical Connections

    Failure to wire your oven according to governing codes could result in a hazardous condition. If there are no local codes, your range must be wired and fused to meet the requirements of the National Electrical Code, ANSI/NFPA No. 70–...
  • Page 8: Power Cord And Strain Relief Installation

    Knockout ring removed attach the wires to the terminal block. NOTE: Do not install the conduit without a squeeze connector. The squeeze connector should be installed before reinstalling the rear range wiring cover. Terminal block Strain relief Power cord Bracket...
  • Page 9 The 4th grounding lead must be connected to the frame of the range with the ground plate and the ground screw. Remove the 3 lower terminal screws from the terminal block.
  • Page 10: 3-Wire Conduit Installation

    DO NOT DISCARD ANY SCREWS. Insert the ground bare wire tip between the range frame and the ground plate (removed earlier) and secure it in place with the ground screw (removed earlier). Insert the bare wire (white/neutral) tip through the bottom center of the terminal block opening.
  • Page 11: Installing The Range

    See instructions to install (supplied with bracket). Unless properly installed, the range could be tipped by stepping or sitting on the door. Injury may result from spilled hot liquids or from the range itself. INSTALLING THE BRACKET IN WOOD OR CONCRETE INSTALLATION—WOOD CONSTRUCTIONS...
  • Page 12: Slide Range Into Opening

    SLIDE RANGE INTO OPENING (cont.) Plug the range cord into the receptacle. Locate the cord in the back of the range in a manner that it will not touch or be moved by the drawer. Position range cord so that...
  • Page 13: Replacing The Oven Door

    Installation Instructions Installing The Range REPLACING THE OVEN DOOR NOTE: The oven door is heavy. You may need help lifting the door high enough to slide it into the hinge slots. Do not lift the door by the handle. Lift the oven door by placing one hand on each side.
  • Page 14: Final Checklist

    15 seconds. Turn the knob off when glow is detected. If the glow is not detected within the time limit, recheck the range wiring connections. If change is required, retest again. If no change is required, have building wiring...
  • Page 15: Alternate Construction

    If you use the filler kit, place the metal filler piece supplied with the range to the back of the range as shown in the figure below. Start the 2 screws into the upper holes at the outside rear of the range above the louvers...
  • Page 16 F l o FOR NON-BUILT-IN INSTALLATION (END OF CABINET LOCATION) When installing the range at the end of a cabinet section which will expose the unfinished side of the range, use Body Side Kit (JXS76XX). Refer to the kit instructions for installation details.
