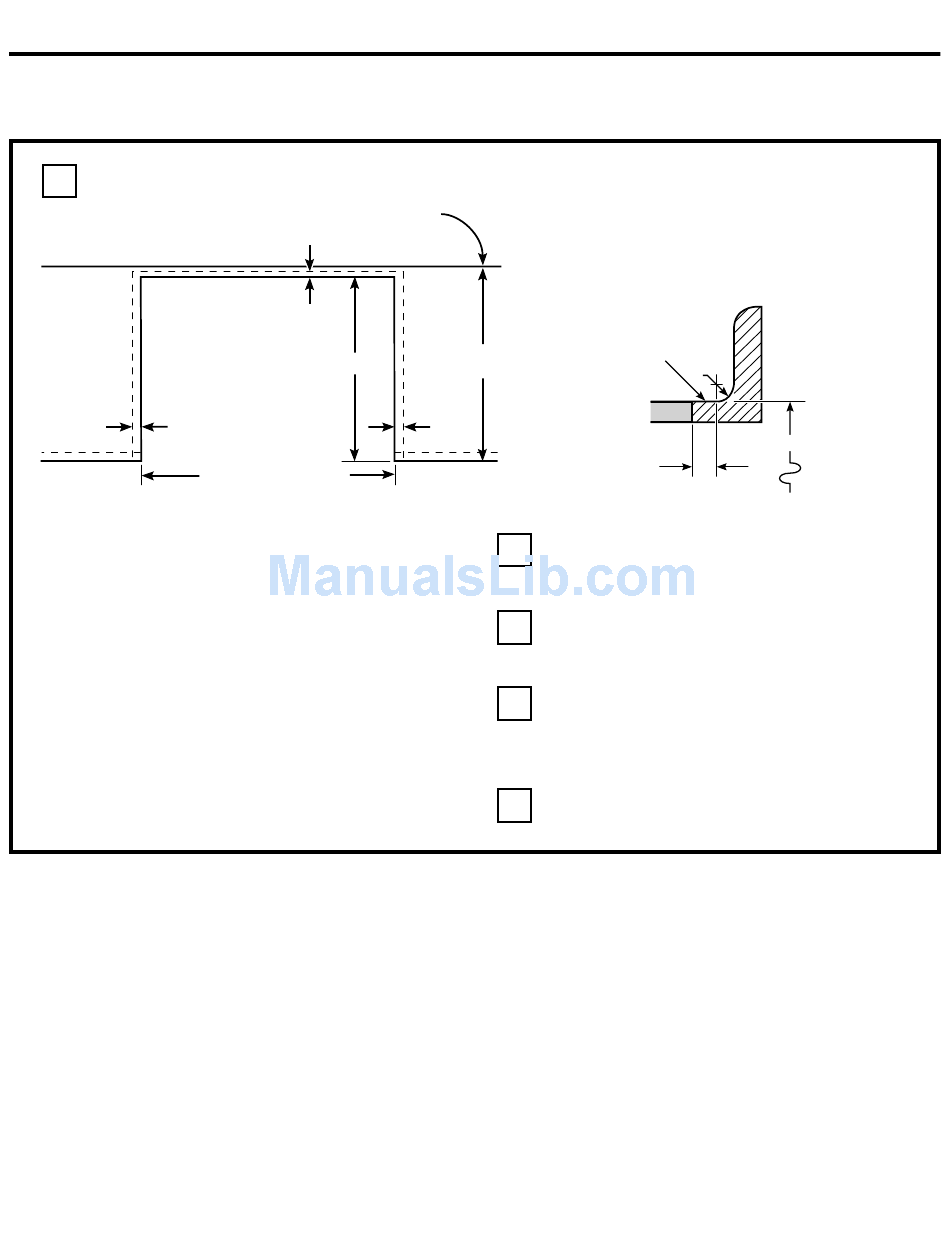

STANDARD INSTALLATION
9/16" Min.
Flat
If the construction of your cabinet cannot
provide a 1/4" flat area at the back of the
countertop opening, consider changing the
countertop to accommodate this dimension.
See Alternate Construction section. If the area
is not flat, excess tension may be applied to
the glass cooktop, causing breakage and
voiding the warranty.
1/4" Min.
Flat
23-3/16"
29-15/16"– 30-1/16"
Smooth Cut
Wall
25"
Typically
9/16" Min.
Flat
Center the 30" wide opening over the
A
adjacent cabinets and mark with a
straight edge.
Using a straight edge, mark the back line
B
at 23-3/16" from the front edge of the
counter.
Be careful not to damage the adjacent
C
cabinets while cutting the countertop.
Use a hand or saber saw to make
straight smooth cuts.
Remove countertop raised edge, if
D
incorporated. (See illustration on page 5)
6
Flat
Area
R
36"
1/4"
