GE JGSP23 Installation Instructions Manual

General electric gas slide-in range installation instructions
Hide thumbs Also See for JGSP23:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Owner's Manual
Installation
Instructions
Questions? Call GE Answer Center at 800.626.2000
Website at: www.geappliances.com
CAUTION: Before you begin- read these
instructions completely and carefully.
• IMPORTANT- Save these instructions for local
inspector's use.
• IMPORTANT-OBSERVE ALL GOVERNING
CODES AND ORDINANCES.
• Note to Installer- Be sure to leave these
instructions with the Consumer.

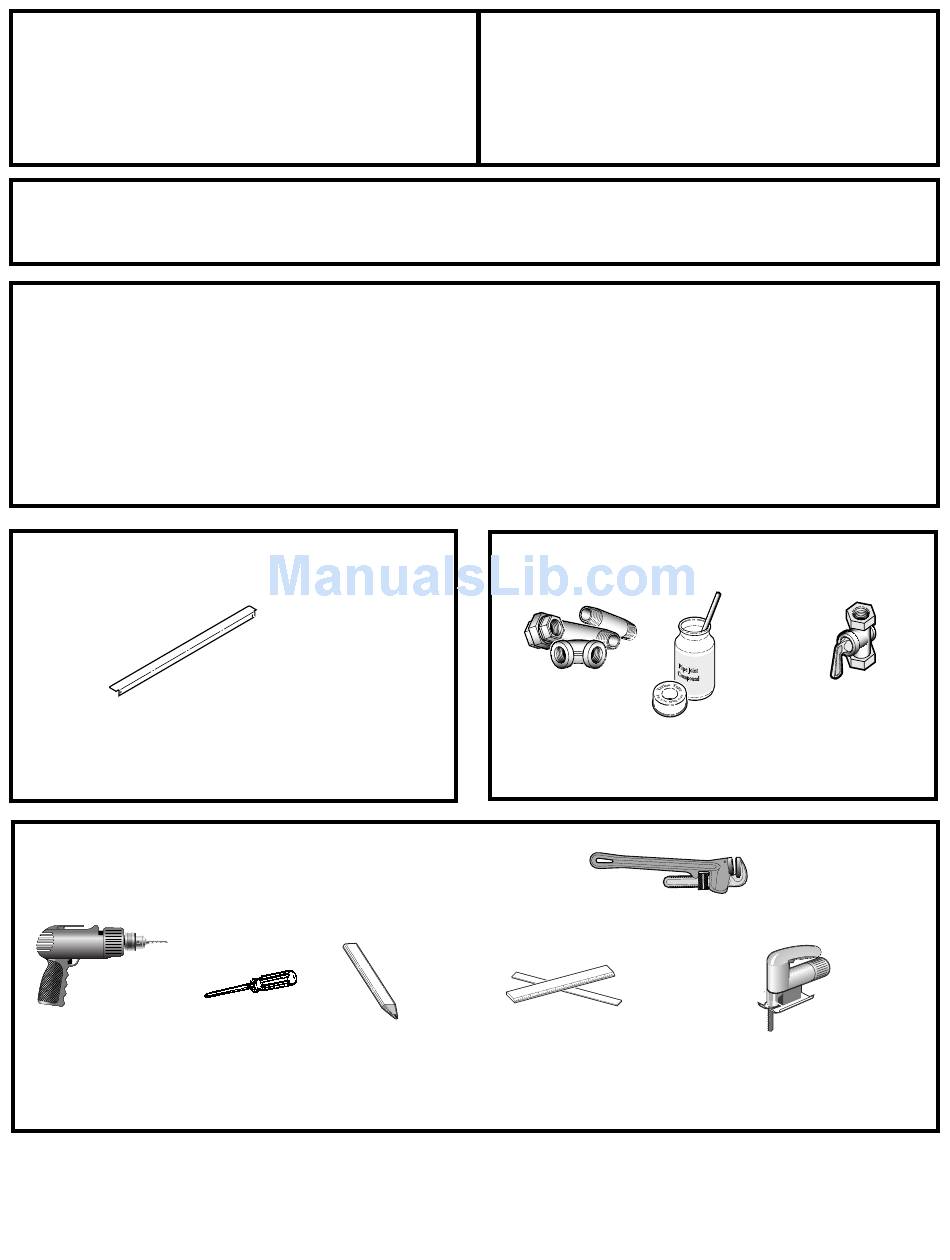

Parts Included

Filler Strip

Tools You Will Need

1/8" Drill Bit &
Electric or
Hand Drill
Pub. No. 31-10500
4053P484
229C
Phillips
Pencil
Head
Screwdriver
Gas Slide-In Range
JGSP23, JGSP44
• Note to Consumer- Keep these instructions for
future reference.
• Note- This appliance must be properly
grounded.
• IMPORTANT: Leak testing of the appliance
shall be conducted according to the
manufacturer's instructions.
Materials Needed
Pipe Fittings
Joint Sealant
Pipe Wrench
Ruler or
Straightedge
1
or visit our
Shut Off Valves
Saber Saw

Advertisement

Table of Contents
loading

Related Manuals for GE JGSP23

Summary of Contents for GE JGSP23

  • Page 1: Parts Included

    Installation Instructions Questions? Call GE Answer Center at 800.626.2000 Website at: www.geappliances.com CAUTION: Before you begin- read these instructions completely and carefully. • IMPORTANT- Save these instructions for local inspector’s use. • IMPORTANT-OBSERVE ALL GOVERNING CODES AND ORDINANCES. • Note to Installer- Be sure to leave these instructions with the Consumer.

  • Page 2: Installation Instructions

    • Install anti-tip bracket packed with range • See Installation Instructions If you pull the range out and away from the wall for any reason, make sure the Anti-Tip device is engaged when the range is pushed back against the wall.
  • Page 3 (Refer to section on electrical require- ments.) When installing your range in your home, make sure all local codes and ordinances are followed exactly as stated. Make sure the wall coverings, counter top and cabinets around the range can withstand heat (up to 200°F) generated by the cooktop.
  • Page 4 13". CLEARANCES • You must keep a clearance of at least 2" between the sides of cooktop portion of range and any material that could catch fire, from the cooktop upward, to a height of at least 18".
  • Page 5 Your range is designed to be installed in a 30" wide opening; the cutout depth will vary with the type countertop you have. There are three basic recommended installations: 1.
  • Page 6 You may order either of these kits from your Service Center. The backguard kit will attach to the back of the range and fill in the space between the back of the range and wall. When using the backsplash kit, the post-formed backsplash of the countertop must be cut.

  • Page 7: Electrical Connections

    Electrical Connections The Three-Prong Outlet The range cord has a three-prong plug and must be plugged into a properly grounded three-hole outlet. The outlet must be in a standard 120 Volt, 60 Hertz AC household circuit. Do not under any circumstances cut or remove the grounding prong from the range cord.

  • Page 8: Gas Connections

    2. Know how and where to shut off the gas supply to the range. 3. Shut off gas supply before removing an old range. Leave it off until hookup of new range is finished. 4. Because solid pipe restricts moving the range, we recommend use of an A.G.A.
  • Page 9 8. Slip the nearest link of the chain onto the bracket. Pull to make sure it is as snug as possible. 9. Slide the range all the way back. It is normal to have some slack in the chain, but it should not be excessive.

  • Page 10: Cooktop Burners

    1/2 psig (pounds per square inch gauge). The range must be isolated from the gas supply piping system by closing its individual shut-off valve during any pressure testing of the gas supply system at test pressures equal to or less than 1/2"...

  • Page 11: Broil Burner

    Bake and Broil Burners Checking the Oven The Burners To check the bake burner flames with the oven door in the closed position: 1. Open the door. 2. Remove the oven bottom. a. Slide the tab to the left to unlock. b.

  • Page 12: Leveling The Range

    (rims) on the sides of the cooktop are above the top of the counter. 3. Place range where it will be installed. Put a spirit level or glass measuring cup partially filled with water on one of the open racks.
  • Page 13 Make sure the flow of combustion and ventilation air to the cooktop is unobstructed. The serial plate for your Range is located on the bottom of the burner box . In addition to the model and serial numbers, it tells you the...
  • Page 14 To adjust your range for use with L.P. gas, follow these instructions: 1. Disconnect all electrical power at the main circuit breaker or fuse box. 2. Shut off the gas supply to the range by closing the manual shut-off valve. Adjusting the Pressure Regulator CAUTION: If you are using L.P.
  • Page 15 MIXER TUBE (CHIMNEY) Return the natural orifices to the bracket and reattach the bracket and these instructions to the pressure regulator using the screw previously removed. Installing the L.P. Orifices PORCELAIN COOKTOP Front of Range GLASS COOKTOP Front of Range...
  • Page 16 Making the L.P. Gas Conversion Adjusting the Cooktop Burners Low Flame Setting Low setting adjustments must be made with two other burners in operation on a medium setting. This procedure prevents the low flame from being set too low resulting in the flame being extinguished when other burners are turned on.

  • Page 17: Special Note

    L.P. Adjustments. conversion was made. Apply the sticker to the range near the regulator to alert others in the future that this appliance has been converted to L.P. If converting back to natural gas from L.P., please remove the sticker so others know the appliance is set to use natural gas.
  • Page 18 NOTES...
  • Page 19 Pub. No. 31-10500 4053P484 229C...

  • Page 20: Parts Included

    Directives Instructions d’installation Si vous avez des questions, appelez 1-800-361-3400 Questions? Call GE Answer Center at 800.626.2000 you visitez notre site Internet à : www.electromenagersGECanada.com Website at: www.geappliances.com CAUTION: Before you begin- read these ATTENTION : Avant de commencer, veuillez lire instructions completely and carefully.

  • Page 21: Installation Instructions

    • Référez-vous aux directives • See Installation Instructions d’installation If you pull the range out and away from the wall Si vous avancez la cuisinière à l’écart du mur for any reason, make sure the Anti-Tip device pour quelque raison, assurez-vous que le...

  • Page 22: Pre-Installation Checklist

    (Refer to section on electrical require- vous à la section Installations électriques.) ments.) Lorsque vous installez votre cuisinière When installing your range in your home, make dans votre résidence, assurez-vous que sure all local codes and ordinances are followed tous les codes et règlements locaux exactly as stated.

  • Page 23: Preparing The Opening

    CLEARANCES • You must keep a clearance of at least 2" between the sides of cooktop portion of range and any material that • Vous devez prévoir un dégagement d’au moins 2 po entre les côtés de la portion table de cuisson de la could catch fire, from the cooktop upward, to a height of at least 18".
  • Page 24 Your range is designed to be installed in a 30" Votre cuisinière est conçue pour être installée dans wide opening; the cutout depth will vary with the une ouverture de 30 po;...
  • Page 25 Center. The backguard kit will attach to the back of se fixe à l’arrière de la cuisinière et remplit the range and fill in the space between the back of l’espace entre l’arrière de la cuisinière et le mur. the range and wall. When using the backsplash kit, Lorsque vous utilisez l’ensemble de dosseret,...

  • Page 26: Installations Électriques

    Electrical Connections Prise de courant à trois alvéoles The Three-Prong Outlet The range cord has a three-prong plug and must Le cordon de la cuisinière est doté d’une fiche à trois broches et doit être branché dans une prise be plugged into a properly grounded three-hole de courant à...
  • Page 27 3. Shut off gas supply before removing an old la cuisinière. range. Leave it off until hookup of new range is finished. 3. Fermez le robinet d’arrêt de la conduite 4. Because solid pipe restricts moving the principale de gaz avant de débrancher une...

  • Page 28: Installation Du Dispositif Antibasculement

    Tirez pour vous assurer qu’elle est aussi près que possible. 9. Slide the range all the way back. It is normal to have some slack in the chain, but it should not 9. Glissez la cuisinière jusqu’à l’arrière. Il est be excessive.
  • Page 29 à des pressions supérieures à 0.5 (pounds per square inch gauge). lb/po2 (pression manométrique en livres The range must be isolated from the gas par pouce carré). supply piping system by closing its La cuisinière doit être isolée du système individual shut-off valve during any d’alimentation au gaz en fermant son...
  • Page 30 Directives d’installation Bake and Broil Burners Brûleurs de cuisson et de grillage Vérification des brûleurs Checking the Oven The du four Burners Vérification des flammes du brûleur de To check the bake burner flames with the cuisson lorsque la porte du four est en oven door in the closed position: position fermée : 1.

  • Page 31: Mise De Niveau De La Cuisinière

    3. Place range where it will be installed. Put a spirit level or glass measuring cup partially filled with water on 3. Placez la cuisinière à son emplacement définitif. Mettez un niveau à bulle ou une tasse à mesurer one of the open racks.

  • Page 32: Operation Checklist

    La plaque d’identification de votre The serial plate for your Range is cuisinière est située au fond de la boîte located on the bottom of the burner du brûleur. En plus des numéros de modèle et de série, cette plaque vous...
  • Page 33 1. Coupez l’arrivée du courant électrique au circuit breaker or fuse box. circuit principal ou à la boîte à fusibles. 2. Shut off the gas supply to the range by closing 2. Fermez le robinet d’arrêt de la conduite the manual shut-off valve.
  • Page 34 à removed. l’aide de la vis enlevée précédemment. Installation des orifices pour Installing the L.P. Orifices le gaz L.P. PORCELAIN COOKTOP Devant de la cuisinière Front of Range GLASS COOKTOP Front of Range Devant de la cuisinière...
  • Page 35 Directives d’installation Making the L.P. Gas Conversion Conversion au gaz de pétrole liquéfié Adjusting the Cooktop Burners Low Flame Setting Réglage de flamme basse des brûleurs de la surface de cuisson Low setting adjustments must be made with two other burners in operation on a medium Les réglages de flamme basse doivent être effectués alors que deux autres brûleurs fonc- setting.
  • Page 36 Apply the sticker to the Appliquer l’autocollant sur la cuisinière près du range near the regulator to alert others in the régulateur pour avertir les usagers éventuels future that this appliance has been converted to que cet appareil a été...
  • Page 37 NOTES...
  • Page 38 Pub. No. 31-10500 4053P484 229C...
