NordicTrack Cx 1055 Elliptical Exerciser User Manual page 7

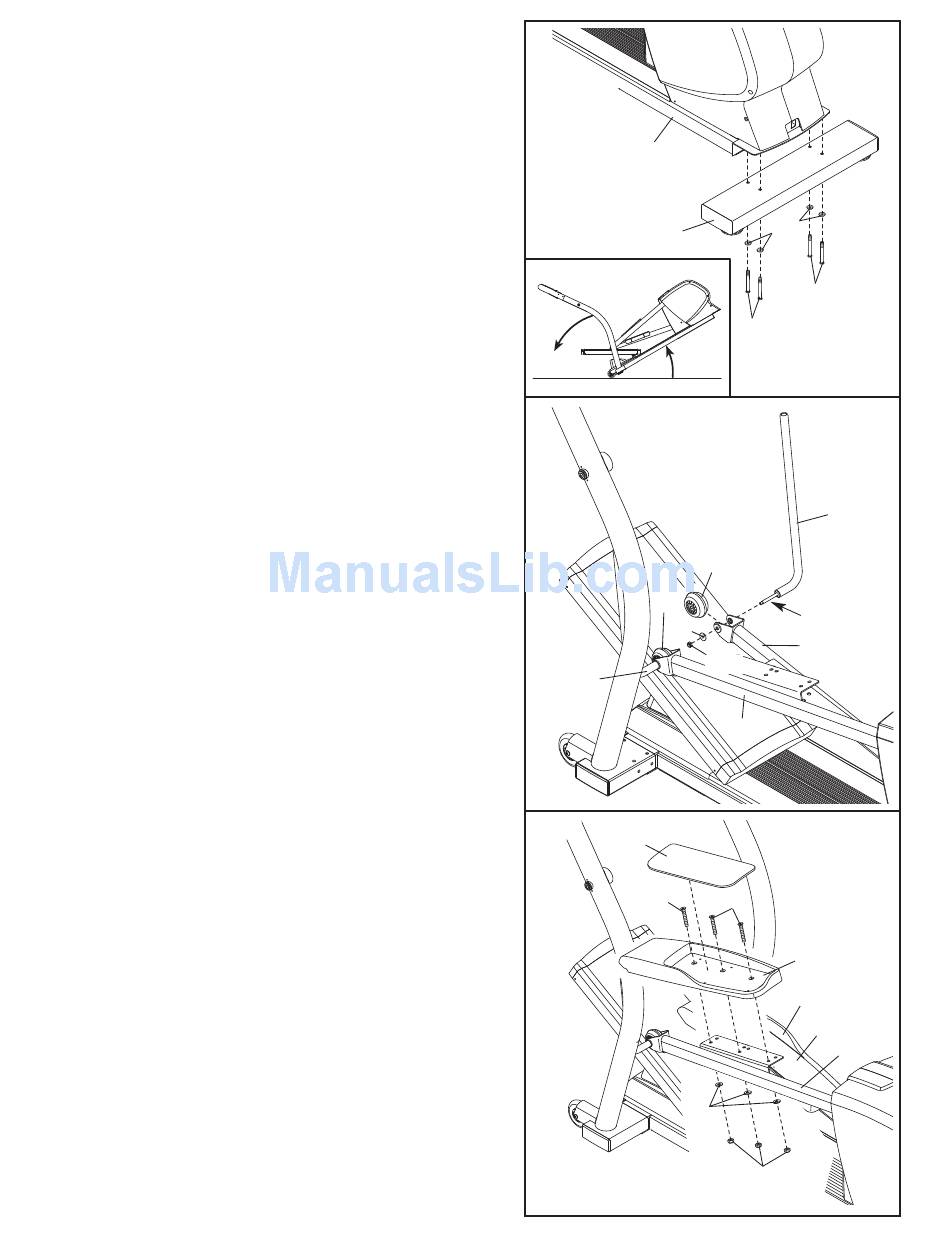

5. See the inset drawing. While another person tips the
elliptical exerciser as shown, place a sturdy piece of
packaging foam beneath the elliptical exerciser.
Orient the Rear Stabilizer (2) so that the holes are
closer to the front. While another person steadies the
elliptical exerciser, attach the Rear Stabilizer to the
back of the Frame (1) with four M8 x 68mm Button
Screws (110) and four M8 Split Washers (101).
Carefully remove the piece of packaging foam and tip
the elliptical exerciser back down.
6. Apply a small amount of grease to the axle on each
Pivot Shaft (15).
Hold a Pedal Wheel (35) inside of the bracket on the
end of the Right Pedal Arm (11). Next, insert a Pivot
Shaft (15) through the holes in the end of the Right
Pedal Arm and the Pedal Wheel as indicated. Tighten
an M8 Nylon Locknut (102) with an M8 x 25mm
Washer (95) onto the end of the Pivot Shaft.
Attach the other Pivot Shaft (15) and the other Pedal
Wheel (35) to the Left Pedal Arm (12) in the same way.
7. Identify the Left Pedal (14). Attach the Left Pedal to the
Left Pedal Arm (12) with three M8 x 23mm Flat Head
Screws (88), three M8 Washers (94), and three M8
Nylon Locknuts (102). Then, press the Left Pedal
Insert (121) onto the Left Pedal.
Attach the Right Pedal (13) to the Right Pedal Arm (not
shown), and press the Right Pedal Insert (122) into the
Right Pedal, in the same way.
5
1
6
15
7
121
88
7
101
2
110
110
15
35
35
Grease
95
11
102
12
88
14
13
122
94
102
12
