Specifications And Options; Specifications - Icom IC-M400BB Instruction Manual

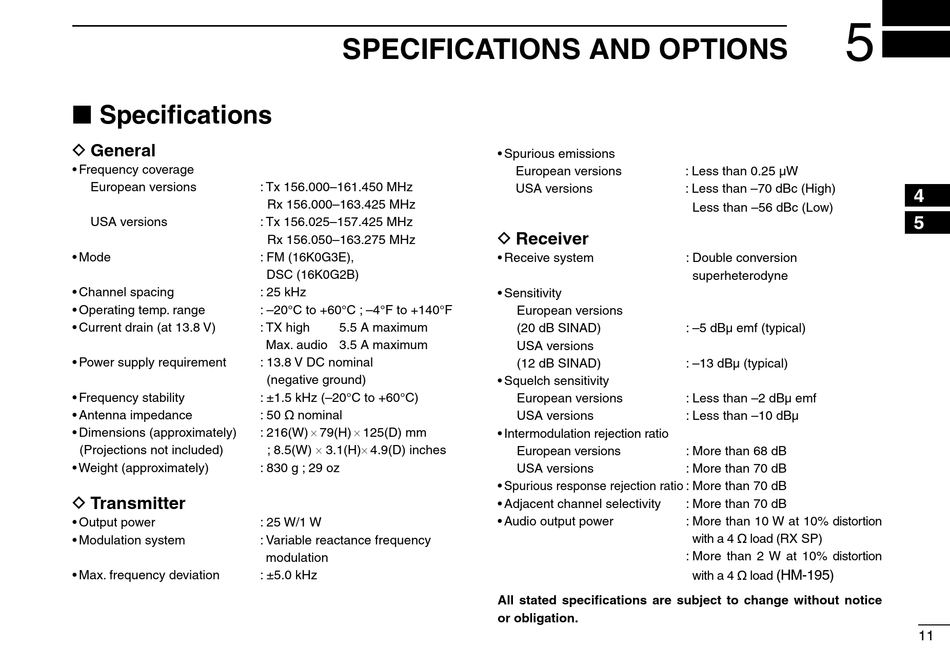

Specifications

■
D General
• Frequency coverage
European versions
USA versions
• Mode
• Channel spacing
• Operating temp. range
• Current drain (at 13.8 V)
• Power supply requirement
• Frequency stability
• Antenna impedance
• Dimensions (approximately)
(Projections not included)
• Weight (approximately)
D Transmitter
• Output power
• Modulation system
• Max. frequency deviation

SPECIFICATIONS AND OPTIONS

: Tx 156.000–161.450 MHz
Rx 156.000–163.425 MHz
: Tx 156.025–157.425 MHz
Rx 156.050–163.275 MHz
: FM (16K0G3E),
DSC (16K0G2B)
: 25 kHz
: –20°C to +60°C ; –4°F to +140°F
: TX high 5.5 A maximum
Max. audio 3.5 A maximum
: 13.8 V DC nominal
(negative ground)
: ±1.5 kHz (–20°C to +60°C)
: 50 ˘ nominal
: 216(W) × 79(H) × 125(D) mm
; 8.5(W) × 3.1(H)× 4.9(D) inches
: 830 g ; 29 oz
: 25 W/1 W
: Variable reactance frequency
modulation
: ±5.0 kHz
• Spurious emissions
European versions
USA versions
D Receiver
• Receive system
• Sensitivity
European versions
(20 dB SINAD)
USA versions
(12 dB SINAD)
• Squelch sensitivity
European versions
USA versions
• Intermodulation rejection ratio
European versions
USA versions
• Spurious response rejection ratio : More than 70 dB
• Adjacent channel selectivity
• Audio output power
All stated specifications are subject to change without notice
or obligation.
5
: Less than 0.25 µW
: Less than –70 dBc (High)
Less than –56 dBc (Low)
: Double conversion
superheterodyne
: –5 dBµ emf (typical)
: –13 dBµ (typical)
: Less than –2 dBµ emf
: Less than –10 dBµ
: More than 68 dB
: More than 70 dB
: More than 70 dB
: More than 10 W at 10% distortion
with a 4 ˘ load (RX SP)
: More than 2 W at 10% distortion
(HM-195)
with a 4 ˘ load
