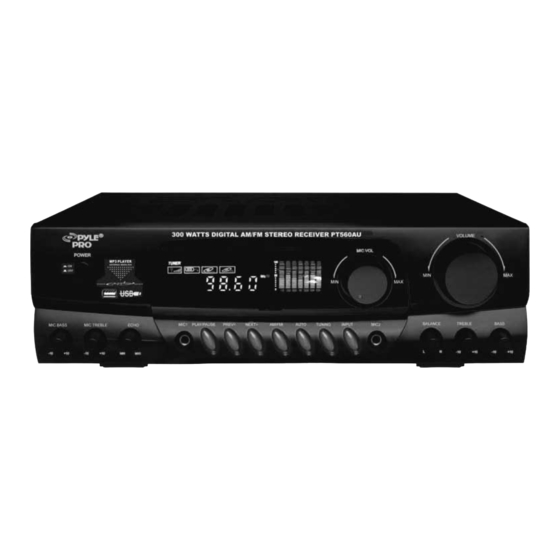

- Page 1 300 Watts Digital AM/FM Stereo Receiver www.pyleaudio.com...
- Page 2 PT560AU Foreword - Features Foreword Thank you for purchasing this fine PYLE PRO amplifier. Please read this operating instruction carefully before using. It will acquaint you fully with all its features and help you enjoy your time. The product adopts the most advanced digital technique in the world. It is 4 channels with high power output, so to speak, the real acoustic centre of your family movie theatre.
- Page 3 PT560AU Precautions Precautions 1. Power source-The unit should be connected to a power supply AC-11 OV/60Hz or AC-220V/SOHz. 2.Ventilation- The unit should be situated so that its location or position does not interfere with its proper ventilation. Place the unit at least 1 Ocm away from the walls.
- Page 4 PT560AU Technical Specifications Technical Specifications Technical PT560AU Main Channel Power Output PMPO, 4 Ohms, 1 KHz test 300WX2 THO(1KHz) <1% Normal Load Impedance 8 Ohm CO/OVO AUXlUSB 300mV/33k Ohm Input Sensitivity Impedance Microphone 6mV/600 Pure Amplifier >76dB Signal to Noise Ratio KARAOKE >71dB...
- Page 5 PT560AU Front panel 300 WATTS DIGITAL AM/H.I STEREO RECEIVER PT560AU ~':l>PYLE" PRe) 9 10 11 12 13 17 18 11.TUNING 1. POWER SWITCH Press to switch the power unit ON or OFF. Press this key and turn the main volume 2.
- Page 6 PT560AU Rear panel GE SELE CT I~~~~I ~F.eANTEN ENGINI:IERI:D IN .JAPAN Esnli t ~~~ ,..'''.""' '''.''' ""'''~ '''' 1. TUNERANT Connect for AM and FM antennas. 2. AUDIO INPUT JACKS Connect the audio output jacks of IPOO/MP3 CO/OVOto these jacks.
- Page 7 PT560AU Remote 1. Signal input selector CD ,AUX ,IPOD/ MP3 ,TUNER selector 2. Number buttons Using for st SELECT & STORE 3. MEMORY After a station has been found, you can store the station by pressing the MEMORY button. 4.AUTO SCAN...
- Page 8 PT560AU Rear Panel Connecting Connecting to amplifier AM ANTENNA fP)) HE AT EX HA [~'~~ IPODor MP3 input © © ® ® CDIDVD A (Left) A(Ri~ht) Speaker Spea er © © ® ® B (Left) B (Right) Speaker Speaker...
-
Page 9: Safety Instructions
PT560AU Safety Instructions SAFETY INSTRUCTIONS 1. Make sure that all connections are properly connected and the main volume is set to minimum level before turning on the unit. 2. When more than one pair of speakers are used, (specially the main...
