Summary of Contents for Pyle pldnv66b
-
Page 2: Table Of Contents
Bluetooth *Only available in select models. Note: Pyle Audio is constantly aiming to improve the customer experience and your receiver's features and specifications are continually changing for the better, with improvements to the user interface experience, software updates, bug fixes, etc. -
Page 3: Precautions
This unit is a standard “Double Din” sized radio. Check to see that your vehicle accepts a double din sized radio. This Compatibility unit conforms to the standard size and dimensions of a DOUBLE DIN radio. Your vehicle may require a vehicle specific or 3 party double din installation kit. -
Page 4: Installing Steering Wheel Control
Audio Technical support can assist you in interfacing into vehicles with existing steering wheel controls. For additional help, contact Pyle Technical Support and be sure to supply Year Make Model and options of vehicle so that proper instructions can be supplied. - Page 5 Factory batteries are sometimes depleted from extended storage time. Replace the batteries if the unit Remote Control does not respond to the remote. Also note that Pyle Receiver Remotes are universal and used between multiple radio models, which may or may not, have some buttons / functions that do not work or provide other functionality with your receiver headunit.
-

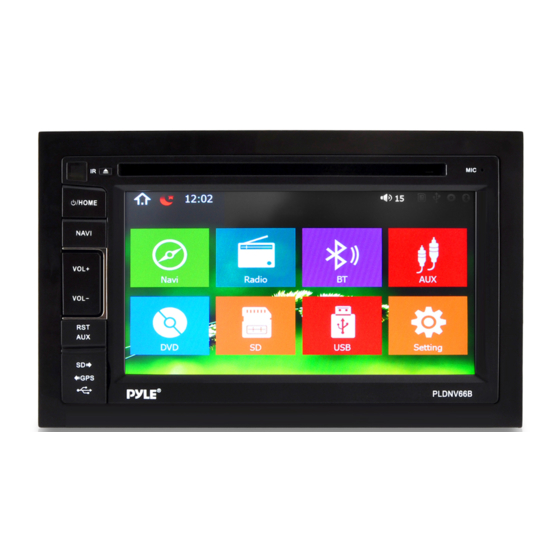

Page 6: Front Panel And Buttons
Front Panel and Buttons IR remote receiver port Button & Feature Layout Ejects disk from the front-loading tray Front-loading disc slot Eject ˄ Microphone port CD/DVD Power/Home Power ON/OFF the unit, also reverts you to the 'Home' screen user interface Press to startup GPS Navigation Software Volume down Navi... -
Page 7: Calendar
Sound GPS - Navigation and CD/DVD options and applications may only be found in select headunit receiver stereo systems, which include these, and other, additional/special features -- not all Pyle stereo *Please Note: models come equipped with GPS Navigation and/or CD/DVD players. - Page 8 1) Scrolling Settings Use the red bar to scroll through the list of all available options. 2) Turn on/ off Many settings can be toggled on or off in this screen *Note: Factory setup is not adjustable by user. Do not attempt to enter this setup menu. 1) Time Options Set Time Turn GPS auto update and 12 hour clock settings on and off here.
- Page 9 Displays the day, month and year. Calendar Use forward and back arrows the view past or future months. Selected dates are highlighted in blue Note: Calendar does not allow entry of appointments. Date must be set within system settings A handy little app for simple calculations Calculator EQ - Equalizer Presets...
- Page 10 1) Scanning: Press, hold, and drag the slider to quickly tune the radio. Radio 2) Current Station: The currently selected station will be displayed in the center. Press the forward and back arrows to change the current station. 3) Favorite Stations: Press and hold one of the six preset slots to set and save a selection for later. SD - Flash Memory File Browsing Warning: Do not attempt to browse files while operating the vehicle 1) Browsing Files...
-
Page 11: Wallpaper
Plug in flash drives to access music video and photos. USB - Flash Memory File Browsing 1) Brightness, Contrast, Hue Video Press, hold and drag to adjust the brightness, contrast and hue of the display. 2) Presets Select to automatically adjust the display settings. Note: Wallpapers can be imported from a flash drive or SD card. - Page 12 - Clear out your device history in your Bluetooth setting menu and attempt to pair / connect again Q: My Map card no longer loads (COCKPIT ERROR DISPLAYED) A: This is caused by bug in map software. Please contact Tech Support: Pyle, www.pyleaudio.com go to the “contact us”...
-
Page 13: Wiring
Wiring - Back Panel: PyleAudio .com... - Page 14 Wiring - Color Wiring: Radio Antenna Radio antenna receptacle Wiring Subwoofer Output Pre amp subwoofer output (5V) Audio / Video Input Auxiliary input for external hardware Audio / Video Output 1 Connect to headrest display (Optional) Audio / Video Output 2 Connect to headrest display (Optional) SW KEY Steering wheel control Key 1 interface wire...
- Page 15 DVD app will only open if a compatible DVD disc is detected. 1) Scrubbing Press and drag along the time line to quickly skip through DVD times line. (Note: DVD formatting does not allow scrubbing through previews and warnings) 2) Menu options & controls: PyleAudio .com...
- Page 16 Bluetooth Bluetooth app allows Bluetooth pairing with compatible devices for making calls and music playback. To pair your phone, ensure Bluetooth is enabled in your phone’s system settings and that you are disconnected from all other devices. In the Bluetooth app of your radio, press the “Gear” icon in the left column to access Bluetooth settings. Next, press the “Magnifying glass”...
