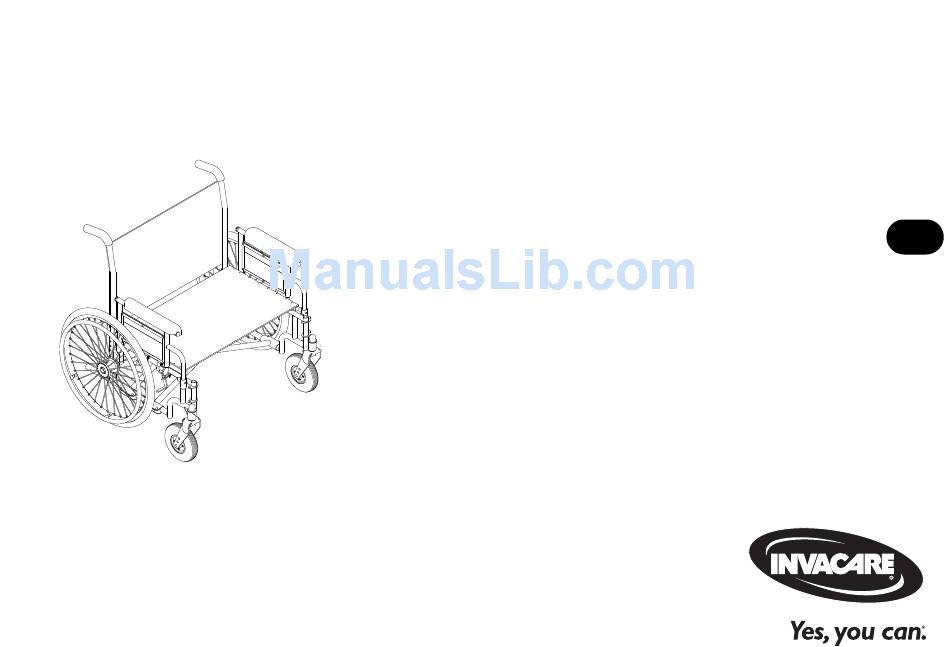

Invacare®9000 Topaz™Wheelchair

User Manual

EN
This manual MUST be given to the user of the product.
BEFORE using this product, read this manual and save for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Invacare 9000 Topaz

Summary of Contents for Invacare 9000 Topaz

  • Page 1: User Manual

    Invacare®9000 Topaz™Wheelchair User Manual This manual MUST be given to the user of the product. BEFORE using this product, read this manual and save for future reference.
  • Page 2 © 2010 Invacare Corporation. All rights reserved. Republication, duplication or modification in whole or in part is prohibited without prior written permission from Invacare. Trademarks are identified by ™ and ®. All trademarks are owned by or licensed to Invacare Corporation or its subsidiaries unless otherwise noted.

  • Page 3: Table Of Contents

    Installing/Removing Swingaway Footrest Assembly ..................................31 Swingaway Footrest Height Adjustment ......................................32 Installing/Removing Elevating Legrest Assembly ................................... 32 Adjusting Elevating Legrest Assembly ......................................33 Raising/Lowering Elevating Legrest Assembly ....................................34 Installing Calf Strap .............................................. 35 Heel Loop Replacement............................................. 36 Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 4 REAR WHEELS Removing/Installing Rear Wheels........................................44 FRONT CASTERS Installing/Replacing Six or Eight-inch Front Casters and Forks..............................45 Front Caster Mounting Adjustments ......................................46 10 ANTI-TIPPERS/WHEEL LOCKS Installing Anti-Tippers ............................................47 Using/Adjusting Wheel Locks ........................................... 49 Invacare®9000 Topaz™Wheelchair Part No 1100869...
  • Page 5 Installing/Removing Solid Back Insert ......................................55 Installing O2 Holder/Telescoping I.V. Rod with O2 Holder..............................56 Installing Telescoping I.V. Rod........................................... 57 Installing/Removing Push Bar..........................................61 Installing/Removing One-Piece Footboard..................................... 62 One Piece Footboard Height Adjustment ..................................... 65 Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 6: General

    Caution indicates a potentially hazardous situation which, if not avoided, may result in property damage or minor injury or both. IMPORTANT Indicates a hazardous situation that could result in damage to property if it is not avoided.  Gives useful tips, recommendations and information for efficient, trouble-free use. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 7: Limited Warranty

    Invacare warrants the side frames and cross members of this product when purchased new and unused to be free from defects in materials and workmanship for a period of three years from the date of purchase from Invacare or a dealer, with a copy of the seller’s invoice required for coverage under this warranty.

  • Page 8: Overview

    Do not remove label. Replace if dam aged P/N 1134890 REV A 08/05 1079203 located  WARNING on seat rail next to the middle DO NOT OPERATE WITHOUT THE ANTI-TIP TUBES H-block. INSTALLED. REV. 5/98 P/N 60106X144 Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 9: Component Identification

    2 OVERVIEW Component Identification Back Upholstery Seat Upholstery Rear Wheel Wheelchair Frame Rear Wheel Axle Handrim Front Caster Wheel Lock Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 10: Typical Product Parameters

    2 OVERVIEW Typical Product Parameters 9000 TOPAZ SEAT WIDTH 20, 22, 24, 26, 28 or 30 inches HANDRIMS 700 lb version (Chrome steel or aluminum) 1000 lb version (Aluminum) OVERALL WIDTH WHEEL LOCKS Toggle lock - push or pull Seat width plus 8...

  • Page 11: Safety

    NOTICE THE INFORMATION CONTAINED IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. Check all parts for shipping damage and test before using. In case of damage, DO NOT use. Contact Invacare/Carrier for further instruction. Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 12: General Warnings

    Invacare strongly recommends ordering the handrims as an additional safeguard for the wheelchair user. Invacare recommends that a non-folding device be installed to keep the wheelchair from being folded when left unoccupied in a public place.
  • Page 13 DO NOT attempt to lift the wheelchair by any removable (detachable) parts. Lifting by means of any removable (detachable) parts of the wheelchair may result in injury to the user or damage to the wheelchair. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 14 ALWAYS wear your seat positioning strap. Inasmuch as the seat positioning strap is an option on this wheelchair (you may order with or without the seat positioning strap), Invacare strongly recommends ordering the seat positioning strap as an additional safeguard for the wheelchair user. The seat positioning strap is a positioning strap only. It is not designed for use as a safety device withstanding high stress loads such as auto or aircraft safety belts.
  • Page 15 • procedure to maintain the proper stability, safety and handling of the wheelchair. BACK HEIGHT • • CASTER POSITION CASTER SIZE • • SEAT-TO-FLOOR ANGLE WHEEL POSITION • • USER CONDITION ANTI-TIPPERS • Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 16: Weight Limitation

    WARNING Invacare does not recommend the use of its wheelchairs as a weight training apparatus. Invacare wheelchairs have not been designed or tested as a seat for any kind of weight training. If occupant uses said wheelchair as a weight training apparatus, Invacare shall not be liable for bodily injury or damage to the wheelchair and the warranty is void.

  • Page 17: Safety/Handling Of Wheelchairs

    Use this information only as a basic guide. The techniques that are discussed on the following pages have been used successfully by many. Individual wheelchair users often develop skills to deal with daily living activities that may differ from those described in this manual. Invacare recognizes and encourages each individual to try what works best for him/her in overcoming architectural obstacles that they may encounter.

  • Page 18: Stability And Balance

    Virtually all activities which involve movement in the wheelchair have an effect on the center of gravity. Invacare recommends using seat/chest positioning straps for additional safety while involved in activities that shift your weight.
  • Page 19 Reaching, Leaning and Bending Coping With Everyday Obstacles Coping with the irritation of everyday obstacles can be alleviated somewhat by learning how to manage your wheelchair. Keep in mind your center of gravity to maintain stability and balance. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 20 Stairways WARNING Extreme caution is advised when it is necessary to move an unoccupied wheelchair up or down the stairs. Invacare recommends using two assistants and making thorough preparations. Make sure to use only secure, non-detachable parts for hand-hold supports.
  • Page 21 FIGURE 2 Stairways If necessary, rotate the anti-tippers so the wheels are facing down. Escalators WARNING DO NOT use an escalator to move a wheelchair between floors. Serious bodily injury may occur. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 22 Remove or flip up the armrest. Engage wheel locks. Shift body weight into seat with transfer. During independent transfer, little or no seat platform will be beneath you. Use a transfer board if at all possible. FIGURE 3 Transferring To and From Other Seats Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 23: Unfolding And Folding Wheelchair

    NOT place any part H-Blocks of the hand under  DO NOT wrap thumb the seat rail. or fingers under the seat rail. Point fingers and thumb to the inside of the wheelchair. FIGURE 4 Unfolding Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 24 With both hands, grasp the middle of the seat upholstery at the front and back edge and lift up. CAUTION DO NOT allow upholstery to hang between the cross braces. Place excess seat upholstery over the armrest. FIGURE 5 Folding Wheelchair Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 25: Safety Inspection/Troubleshooting

    ❑ Inspect seat positioning strap for any signs of wear. Ensure buckle latches. Verify hardware that attaches strap to frame is secure and undamaged. Replace if necessary. ❑ Inspect tires for flat spots and wear. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 26 Check that the wheel locks do not interfere with tires when rolling. ❑ Check that the wheel lock pivot points are free of wear and looseness. ❑ Inspect seat and back for loose or broken hardware. ❑ Inspect cane hand grips for wear/looseness/deterioration. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 27: Troubleshooting

    Sluggish Turn or Casters Squeaks Looseness Solutions Right Veers Left Performance Flutter and Rattles in Chair Check for loose fork stem nuts and bolts. Check that both casters contact the ground at the same time. Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 28: Maintenance

    The rear wheels, casters and tires should be checked periodically for cracks and wear, and should be replaced by a qualified technician if damaged. Periodically adjust wheel locks in correlation to tire wear. Refer to Using/Adjusting Wheel Locks on page 49. Invacare®9000 Topaz™Wheelchair Part No 1100869...
  • Page 29 11. Hand grips should be checked monthly for wear/looseness/deterioration. Clean if desired. Replace if looseness or deterioration is found. Replacing/Repairing Rear Wheel Tire/Tube WARNING Replacement of solid urethane tires is not recommended. If the solid urethane tire needs repaired, Invacare recommends replacing the complete wheel assembly. Replacement of rear wheel tube must be performed by a qualified technician.
  • Page 30 Replacement of solid urethane or semi-pneumatic tires is not recommended. If the solid urethane or semi-pneumatic tires need replaced, Invacare recommends replacing complete caster assembly. For pneumatic tires, replacement of the tire or tube must be performed by a qualified technician.

  • Page 31: Front Riggings

    Plates Removing Push the footrest release lever inward. Rotate swingaway footrest assembly outward. Lift the swingaway footrest assembly off the hinge pins. Repeat STEPS 1-3 for the other side. FIGURE 1 Installing/Removing Swingaway Footrest Assembly Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 32: Swingaway Footrest Height Adjustment

    Rotate elevating legrest assembly toward the inside of the wheelchair until it locks in place. Repeat STEPS 1 and 2 for the other legrest assembly.  The footplates will be facing each other when locked in place. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 33: Adjusting Elevating Legrest Assembly

    Repeat STEPS 1-2 on remaining legrest assembly. Adjusting Calfpad Remove the two mounting screws securing the calfpad to the calfpad support of the elevating legrest assembly. Slide the Calfpad up or down until the desired position is obtained. Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 34: Raising/Lowering Elevating Legrest Assembly

    An assistant should hold the lower legrest assembly and raise the elevating legrests until one of three desired height positions is obtained. Lowering Elevating Legrest Assembly Use one hand to fully support the weight of the user leg and elevating legrest. Pull release lever upward with the other hand. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 35: Installing Calf Strap

    5.6 Installing Calf Strap Calf Strap Remove calf strap from packaged container if it is not already secured to the footrest. Secure one side of the calf strap around each footrest. Footrest Footrest FIGURE 6 Installing Calf Strap Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 36: Heel Loop Replacement

    When securing the heel loop to the footrest assembly, tighten the mounting screw and locknut until the spacer is secure. Bolts Locknuts Mounting Heel Loop Screw Spacer Slide Tube Lower Footrest Assembly Locknut FIGURE 7 Heel Loop Replacement Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 37: Adjusting Armrest Height

    Flip the height adjustment lever on the front of the armrest to the down (vertical) position. Pull the height adjustment lock knob on the rear of the armrest and twist turn into the locked position. Repeat STEPS 1-3 for other armrest. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 38 The armrest for the 700 lb version of the wheelchair is Locked Unlocked shown. The armrest height for the Position Position 1000 lb version of the wheelchair is adjusted the same way. FIGURE 1 Adjusting Armrest Height Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 39: Replacing Desk/Full Length Armrest Pad

    FIGURE 2 Replacing Desk/Full Length Armrest Pad Removing or Replacing Armrest WARNING Make sure the armrest release lever is in the locked position before using the wheelchair.  For this procedure, refer to FIGURE 3 on page 40. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 40 The armrest for the 700 lb version of the wheelchair is shown. The Armrest Release armrest height for the 1000 lb Lever version of the wheelchair is removed/replaced the same way. Arm Socket Arm Socket FIGURE 3 Removing or Replacing Armrest Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 41: Seat And Back

    The following chart determines the number of Seat mounting screws for each seat depth Upholstery SEAT DEPTH NUMBER OF SCREWS Washers 18 inch Wheelchair 20 inch Frame FIGURE 1 Replacing Seat Upholstery Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 42: Replacing Back Upholstery

    Holes numbered from bottom to top for reference only. (There are no numbers on the back canes).  The mounting screws must be securely tightened into the threaded mounting holes of the wheelchair frame before installing the locknuts. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 43: Adjusting Seat Depth

    Frame FIGURE 3 Adjusting Back Height Adjusting Seat Depth WARNING Adjusting the seat depth of the 9000 Topaz wheelchair must be performed by a qualified technician. Contact dealer/Invacare. Adjusting Seat Width WARNING Adjusting the seat width of the 9000 Topaz wheelchair must be performed by a qualified technician. Contact dealer/Invacare.

  • Page 44: Rear Wheels

    Repeat STEP 2 for the opposite rear wheel. Axle To reinstall the rear wheel onto the wheelchair, reverse STEP 2. Spacer  Make sure axle spacer is between rear wheel and Wheelchair wheelchair frame. Frame Mounting Screw FIGURE 1 Removing/Installing Rear Wheels Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 45: Front Casters

    Remove the locknut and washer that secures the fork to the caster headtube. Drop the front caster and fork out of the caster headtube. Slide in the new front caster and fork. Reassemble by reversing STEPS 1-2. Repeat STEPS 1-5 for the opposite front caster. Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 46: Front Caster Mounting Adjustments

    11. Snap dust cover over the locknut and stem. FIGURE 1 Installing/Replacing Six or Eight-inch Front Casters and Forks Front Caster Mounting Adjustments WARNING Adjusting front caster mountings MUST be performed by a qualified technician. Contact dealer/Invacare. Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 47: Anti-Tippers/Wheel Locks

    10.1 Installing Anti-Tippers WARNING Inasmuch as anti-tippers are an option on this wheelchair (you may order with or without the anti-tippers), Invacare strongly recommends ordering anti-tippers as an additional safeguard for the wheelchair user. Anti-tippers are specific to the different rear wheels and/or seat-to-floor heights. Refer to the following charts for correct usage and adjustment.
  • Page 48 Anti-Tipper (1102146) inches 17½ Wheelchair Frame Anti-Tipper (1102146)  When installing/using anti-tipper 1102146 on the 9000 Topaz wheelchair with a seat-to-floor height of 15½ 15½ inches, the anti-tipper wheels must be Wheelchair Frame pointed up away from the ground/floor. Anti-tipper Height inches Invacare®9000 Topaz™Wheelchair...

  • Page 49: Using/Adjusting Wheel Locks

    Depending on the model of wheel lock installed on the wheelchair, perform one (1) of the following: • Push-to-Lock - To engage, push the wheel lock handle forward. • Pull-to-Lock - To engage, pull the wheel lock handle backward. Disengage the wheel locks by reversing STEP 2. Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 50: Adjusting Wheel Locks

    Any wheel lock adjustment should embed the wheel lock shoe 3/16 inch into the tire when engaged. Repeat STEPS 1-6 until the wheel lock shoe embeds the tire 3/16 inch and holds the occupied wheelchair in place when pushed. Repeat STEPS 1-7 for the opposite wheel lock. Invacare®9000 Topaz™Wheelchair Part No 1100869...
  • Page 51 If wheel locks do not hold the occupied wheelchair in place, contact a qualified technician. Otherwise, injury or damage may occur. DETAIL “A” - WHEEL LOCK Socket Screws SHOE ENGAGEMENT Wheel Lock Clamp 3/16 inch Wheelchair Frame Wheel Lock Wheel Lock Shoe Tire Wheel Lock Shoe Rear Wheel FIGURE 3 Adjusting Wheel locks Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 52: Options

    Base should be parallel to step tube to avoid bending spokes when folding the wheelchair. Clamp Locknut The base cleans easily with any chrome or glass cleaner. The strap can be cleaned with mild soap and water. FIGURE 1 Installing Crutch and Cane Carrier Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 53: Installing Seat Positioning Strap

    Mounting Secure the seat positioning strap and back upholstery to the back Screw canes with the two new back upholstery mounting screws and washers. Securely tighten. FIGURE 2 Installing Seat Positioning Strap Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 54: Wheel Lock Extension Handle

    Slide the wheel lock extension handle on to the wheel lock handle. Repeat STEPS 1-4 for the remaining wheel lock. Wheel Lock Extension Handle Wheel Lock Handle Elastic Cord (Loop End) Wheelchair Frame FIGURE 3 Wheel Lock Extension Handle Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 55: Installing/Removing Solid Seat Insert

    Securely fasten with two snaps. Solid Back Insert Removing Release the two snaps securing the two fastening straps around the back canes. Remove the solid back insert. FIGURE 4 Installing/Removing Solid Seat Insert and Installing/Removing Solid Back Insert Part No 1100869 Invacare®9000 Topaz™Wheelchair...

  • Page 56: Installing O2 Holder/Telescoping I.v. Rod With O2 Holder

    DETAIL “B” - O HOLDER ROD/O HOLDER Mounting Telescoping I.V. Bracket Rod/O Holder Tie Wrap Mounting Bracket Screw Holder Screw Locknut Spacer Locknut Step Tube Step Tube Spacer FIGURE 5 Installing O Holder/Telescoping I.V. Rod with O Holder Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 57: Installing Telescoping I.v. Rod

    Secure the lower mounting bracket to the wheelchair frame by securely tightening the two (2) hex screws and locknuts on the mounting bracket. Loosen the adjustment knob and position the IV rod to the desired height and securely tighten the adjustment knob. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 58 Bracket Plate Upholstery Mounting Screw Locknuts Wheelchair Side Frame Screws Screws Long Spacer Spacer Locknuts Lower Spacer Mounting Bracket Step Tube  Back upholstery not shown for clarity. FIGURE 6 Installing Telescoping I.V. Rod - Mounting Instructions Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 59: Repositioning Upper Mounting Bracket

    Firmly grasp the height adjustment assembly and pull to remove from the outer tube. Slide the upper mounting bracket up off the outer tube. Rotate the upper mounting bracket 180° and reinstall onto the outer tube. Reverse STEPS 1-5 to reassemble the telescoping I.V. rod. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 60 11 OPTIONS Inner Tube Upper Mounting Bracket (Shown Rotated 180°) Height Adjustment Assembly Outer Tube Hole Outer Tube Phillips Screw FIGURE 7 Installing Telescoping I.V. Rod - Repositioning Upper Mounting Bracket Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 61: Installing/Removing Push Bar

    For this procedure, refer to FIGURE 8 on page 62.  The 9000 Topaz is folded for either storage or transporting. The push bar must be removed before folding the wheelchair. Installing Push Bar Insert one push bar support into one back cane handle.

  • Page 62: Installing/Removing One-Piece Footboard

    Right and left sides of the wheelchair are determined from the occupant’s position.  Only the right footboard support assembly is secured to the footboard. When in the upright position, the footboard will be vertical and resting against the inside of the right footboard support assembly. Invacare®9000 Topaz™Wheelchair Part No 1100869...
  • Page 63 Lift the footboard into the up position. Push the footboard support release lever inward. Rotate the footboard support assembly outward. Lift the footboard support assembly off of the hinge pins. Repeat STEPS 2-4 for the other footboard support assembly. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 64 Frame Release Lever Footboard Support Release Left Footboard Support Lever Assembly Hinge Pins Footboard Clips Hinge Plates End Cap Hinge Pins Left Lower Footboard Support Right Footboard Support Tube Assembly Footboard FIGURE 9 Installing/Removing One-Piece Footboard Invacare®9000 Topaz™Wheelchair Part No 1100869...

  • Page 65: One Piece Footboard Height Adjustment

    Using the two bolts and locknuts, secure the lower footboard support tube to the upper footboard support. Securely tighten.  Ensure both footboard supports are adjusted to the same height. Repeat STEPS 2-4 to adjust the remaining footboard support assembly. Reinstall the footboard support assembly. Refer to Installing/Removing One-Piece Footboard on page 62. Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 66 11 OPTIONS Upper Footboard Supports Locknuts Lower Footboard Tube Bolts Locknuts Lower Footboard tube Footboard FIGURE 10 One Piece Footboard Height Adjustment Invacare®9000 Topaz™Wheelchair Part No 1100869...
  • Page 67 11 OPTIONS NOTES Part No 1100869 Invacare®9000 Topaz™Wheelchair...
  • Page 68 Invacare Corporation Canada One Invacare Way 570 Matheson Blvd E Unit Elyria, Ohio USA 44036-2125 Mississauga Ontario 800-333-6900 L4Z 4G4 Canada 800-668-5324 Part No 1100869 Rev H - 11/10 www.invacare.com...
