Required Resources; Bracket Hardware - HP Cluster Platform Hardware Kits v2010 Installation Manual

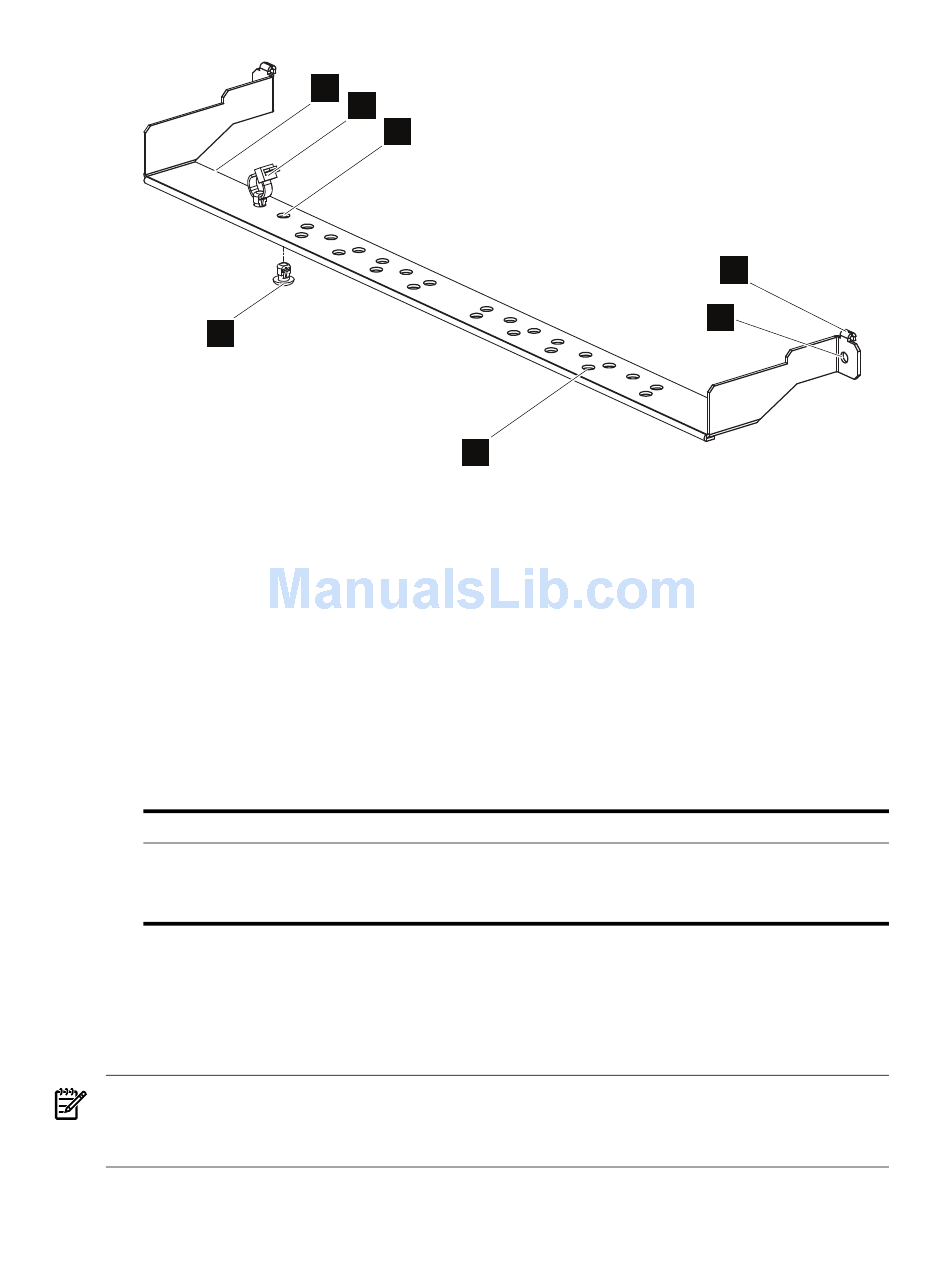

Figure 1-1 Bracket Hardware
The following list describes the callouts in
1. HP BladeSystem c-Class Enclosure Cable Management Bracket
2. Completed releasable cable tie assembly
3. First hole (port 1) of the inside row of holes used for the InfiniBand switch with 16
external uplink ports (489183-B21)
4. Push-button mount
5. Rail-mount hook (one on each end of the bracket)
6. Mounting hole to fasten the bracket to the rack's rear rail (one on each end of the bracket)
7. Outside row of holes used for the InfiniBand switch with 8 external uplink ports
(410398-B21)
• The fasteners that are specified in
Table 1-1 Fasteners (Supplied with Cabinet Mounting Hardware)
Qty. Size
2 M6 cage nuts
2 M6 x 0.625 inch
pan head screws
To prevent screws from becoming loose because of vibration, HP recommends that you use
an adjustable torque drive, set to the torque specifications given in the table above. Contact
your HP sales representative if any parts are missing.
• 16 push-button mounts (see callout 4 in
• 16 releasable cable ties (see callout 2 in
Note:
This cable management bracket might also be adaptable for other cable management solutions
(consult your hardware installation documentation).

1.5 Required Resources

To install the HP c-Class enclosure cable management bracket, you require the following resources:
8 Preparing for Installation
1
2
3
4
Format
Square nut
#2 Cross recess
7
Figure 1-1:
Table 1-1.
Torque Description
N/A Cage nut for M6 screw.
25-30 in/lb Machine screw. For use with M6 cage nut.
Figure 1-1)
Figure 1-1)
5
6
