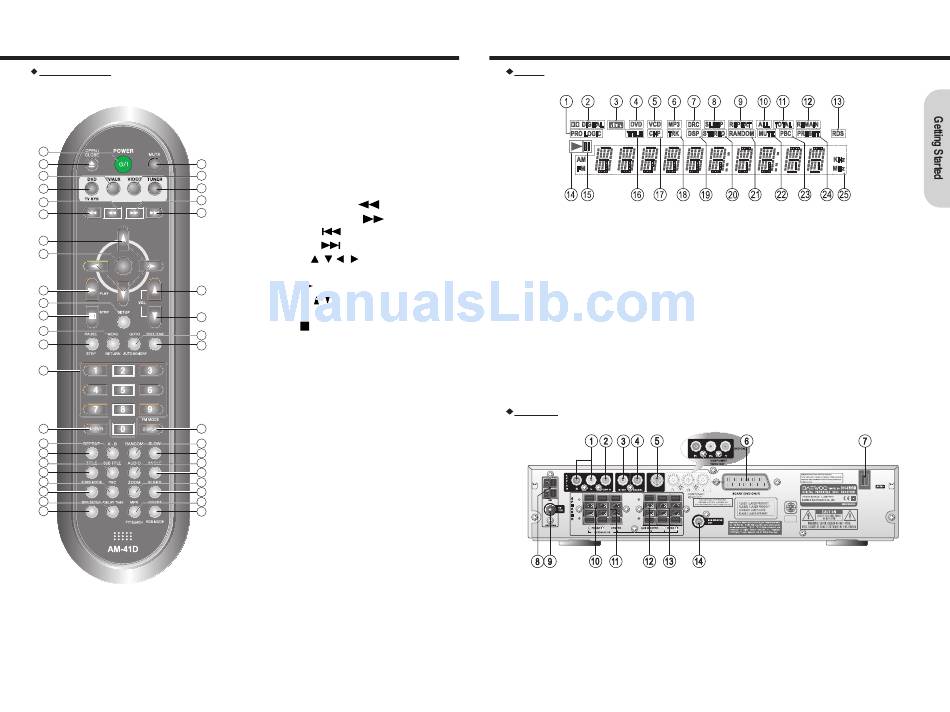

Daewoo DHC-X150E Instruction Manual page 6

Index to Parts and Controls
Remote controller
1
2 3
4 6
5 7
9
8
11
10
12
13
ENTER
14 15
16
17
15
18
20
19
21
22
4 5
23 24
25 27
26 28
29
31
30 32
33 35
34
36
37
39
38 40
8
1. STANDBY/ON button
2. OPEN/CLOSE button
3. MUTE button
4. INPUT SELECTOR: TV/AUX button
5. INPUT SELECTOR: DVD button/
TV SYSTEM(PAL/NTSC: DVD only) button
6. INPUT SELECTOR: VIDEO button
7. INPUT SELECTOR: TUNER button
8. FAST REVERSE(FR) ( ) button
9. FAST FORWARD(FF) ( ) button
10. SKIP PREV ( ) button
11. SKIP NEXT ( ) button
12. Direction ( ) buttons
/ / /
13. Enter button
14. PLAY ( ) button
15. VOLUME( ) buttons
/
16. SETUP button
17. STOP( ) button
18. MENU/RETURN button
19. PAUSE/STEP button
20. GO TO/AUTO MEMORY button
21. TEST-TONE button
22. Number buttons
23. CH-LEVEL button
24. DISPLAY/FM MODE button
25. A-B REPEAT button
26. REPEAT button
27. RANDOM button
28. SLOW button
29. SUB TITLE button
30. TITLE button
31. AUDIO button
32. ANGLE button
33. PBC button
34. SURROUND MODE button
35. ZOOM button
36. SLEEP button
37. DELAY TIME button
38. SPEAKER SETUP button
39. MPX/PTY SEARCH button
40. DIGEST/RDS MODE button
Index to Parts and Controls
Display
1. Pro Logic indicator
2. DOLBY DIGITAL indicator
3. DTS indicator
4. DVD indicator
5. VCD indicator
6. MP3 indicator
7. DRC indicator
8. SLEEP indicator
9. REPEAT indicator
10. ALL indicator
11. TOTAL indicator
12. REMAIN indicator
13. RDS indicator
Rear Panel
S-VIDEO OUT
(DVD ONLY)
1. AUDIO IN jacks
2. VIDEO IN jack
3. MONITOR OUT jack
4. DIGITAL OUTPUT jack
5. S VIDEO MONITOR OUT jack
6. SCART jack or COMPONENT VIDEO OUTPUT
Y/Pb/Pr jacks(Optional)
7. Power cord
14. PLAY indicator
15. PAUSE indicator
16. TITLE indicator
17. CHAPTER indicator
18. TRACK indicator
19. DSP indicator
20. STEREO indicator
21. RANDOM indicator
22. MUTE indicator
23. PBC(Playback Control) indicator
24. PRESET indicator
25. PLAYING INFORMATION display
8. AM ANTENNA connector
9. FM ANTENNA connector
10. FRONT SPEAKER connectors
11. CENTER SPEAKER connectors
12. WOOFER SPEAKER connector
13. REAR SPEAKER connectors
14. SUBWOOFER output jack
9
