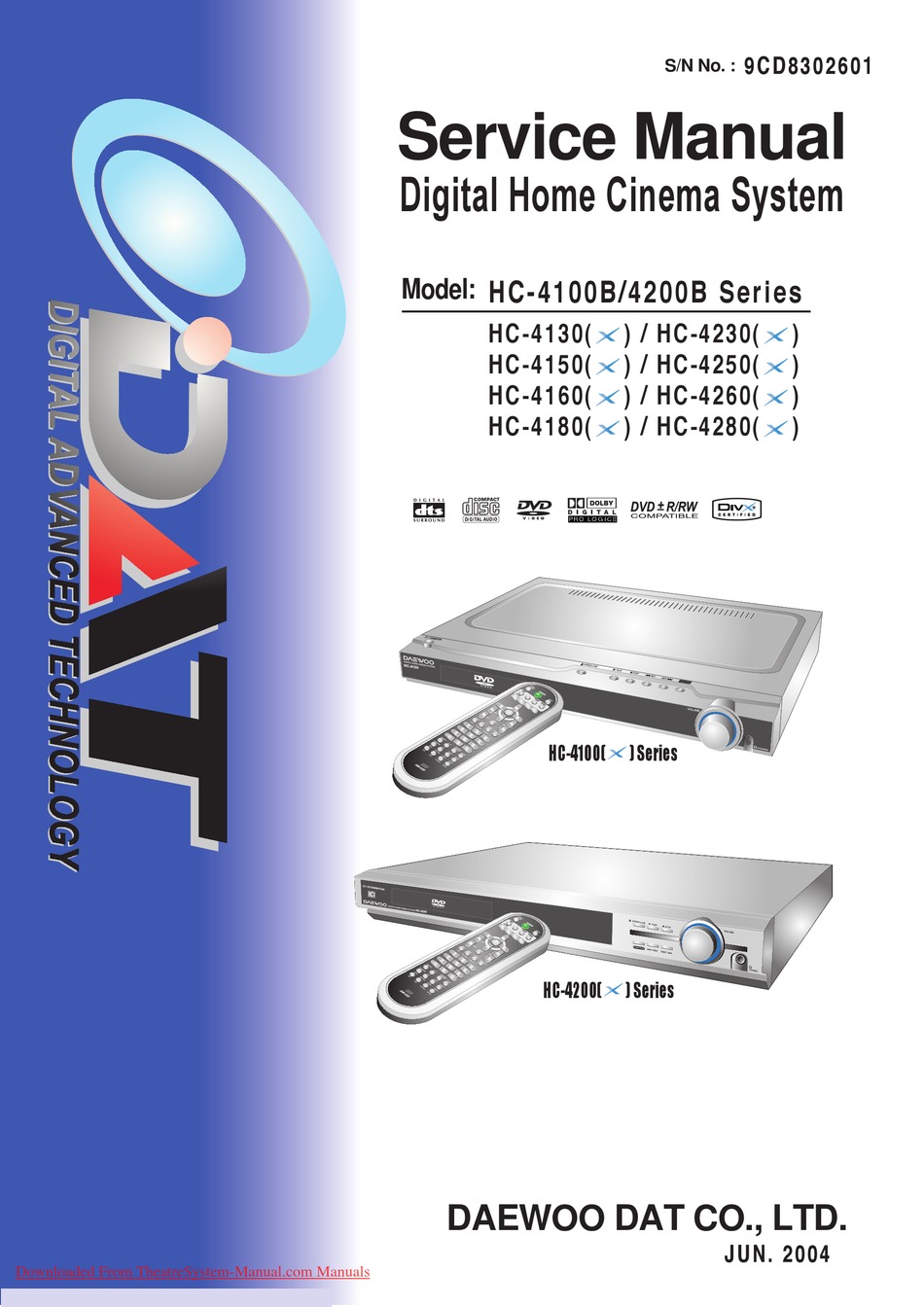

Service Manual
Digital Home Cinema System
Mini Component System
Model:
HC-4100B/4200B Series
HC-4130(
HC-4150(
HC-4160(
HC-4180(
HC-4100(
HC-4200(
DAEWOO DAT CO., LTD.
9CD8302601
S/N No. :
) / HC-4230(
)
) / HC-4250(
)
) / HC-4260(
)
) / HC-4280(
)
) Series
) Series
JUN. 2004
FEB. 2004
