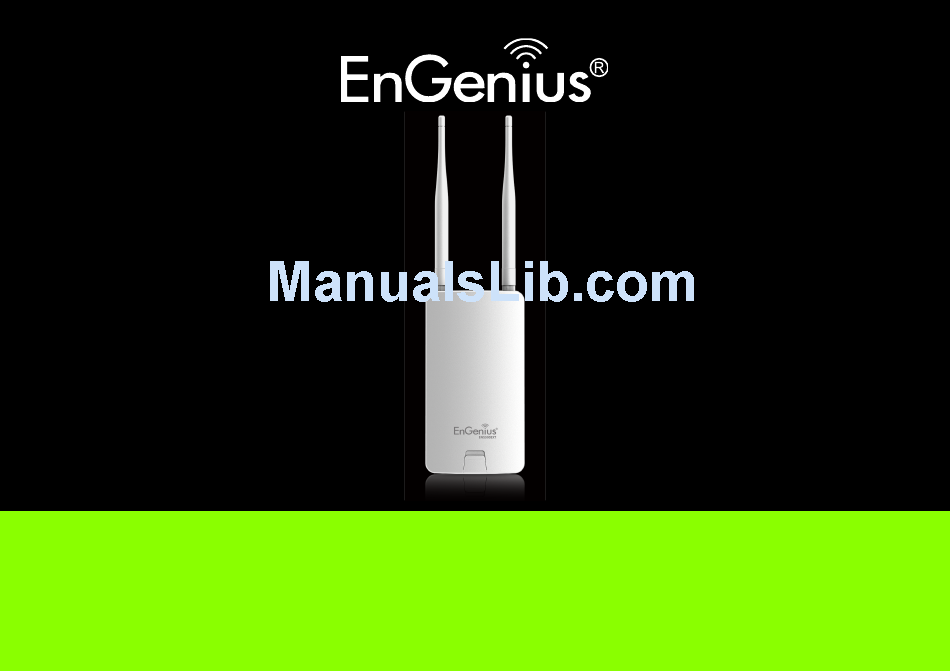

WIRELESS 11N LONG RANGE OUTDOOR AP / CB
ENS500EXT User Guide
V1.0

Advertisement

Table of Contents
loading

Summary of Contents for EnGenius ENS500EXT

  • Page 1 WIRELESS 11N LONG RANGE OUTDOOR AP / CB ENS500EXT User Guide V1.0...
  • Page 2: Table Of Contents

    ABLE OF ONTENTS ABLE OF ONTENTS Conventions 0-vi Copyright 0-viii Product Overview Package Contents Product Overview Hardware Features ...........1-2 Software Features .
  • Page 3 ABLE OF ONTENTS Installation System Requirements Installing the Device Pre-Installation Guidelines ..........2-2 Installing the Device .
  • Page 4 ABLE OF ONTENTS System Setup Configuring Operation Mode Configuring IP Settings 4-10 Configuring Spanning Tree Settings 4-11 Router Setup 4-12 Configuring WAN Settings 4-12 Static IP ............4-12 Dynamic IP.
  • Page 5 ABLE OF ONTENTS Configuring Wireless Security 4-28 Wired Equivalent Privacy (WEP) ......... 4-28 Wi-Fi Protected Access Pre-Shared Key (WPA-PSK) .
  • Page 6 ABLE OF ONTENTS Configuring Wi-Fi Schedule 4-47 Add a Schedule Service ..........4-47 Schedule Services Table.
  • Page 7: General Conventions

    ONVENTIONS Conventions The following conventions are used to give the user additional Example: information about specific procedures or content. It is important Indicates information used to demonstrate or explain an to pay attention to these conventions as they provide informa- associated concept.
  • Page 8: Typographical Conventions

    ONVENTIONS Typographical Conventions The following typographical conventions are used in this docu- ment: Italics Indicates book titles, directory names, file names, path names, and program/process names. Constant width Indicates computer output shown on a computer screen, includ- ing menus, prompts, responses to input, and error messages. Constant width bold Indicates commands lines as entered on the computer.
  • Page 9 OPYRIGHT Copyright This user guide and its content is copyright of © EnGenius Net- works, 2012. All rights reserved. Any redistribution or reproduction in part or in whole in any form is prohibited. Do not distribute, transmit, store in any form of electronic retrieval system or commercially exploit the content without the expressed written permission of EnGenius Networks.
  • Page 10: Product Overview

    Product Overview Chapter 1...
  • Page 11: Package Contents

    RODUCT VERVIEW ACKAGE ONTENTS 1.1 Package Contents ENS500EXT  Quick Start Guide  Technical Support Card  Pole Mounting Strap x2  Wall Mounting Screw Set  PoE Injector (EPE-1212) with Power Adapter  Two detachable 5 dBi high gain omni-directional antennas...
  • Page 12: Product Overview

    PoE Support: Support proprietary 24V passive power  sion range to deliver a stable wireless connection. ENS500EXT over Ethernet integrates 4 operation modes: Access Point, Client Bridge, Cli- ent Router and WDS.
  • Page 13: Benefits

    Wireless extensions to Ethernet networks WLANs enable network managers in dynamic environments to The ENS500EXT is the ideal product around which you can minimize overhead caused by moves, extensions to networks, build your WLAN. The following list summarizes a few key and other changes.
  • Page 14: Technical Specification

    RODUCT VERVIEW ECHNICAL PECIFICATION Technical Specification WDS AP / WDS Bridge / WDS Station  Multicast Supported  Hardware Specification RADIUS Accounting  Physical Interface: VLAN Tag / VLAN Pass-through   2 x RJ-45 for 10/100 Fast Ethernet; one port is compat- Auto Reboot ...
  • Page 15: Wireless Specification

    RODUCT VERVIEW ECHNICAL PECIFICATION Wireless Specification with antenna: 100mm (4”) x 37.5mm (1.375””) x  205mm (8”) (W x D x H) Frequency Band: 802.11a/n  without antenna: 100mm (4”) x 37.5mm (1.37”) x  189mm (7.375”) (W x D x H) Data rate: 300 Mbps ...
  • Page 16: Product Layout

    DESCRIPTION OFF = ENS500EXT is not receiving power Power LED ON = ENS500EXT is receiving power OFF = ENS500EXT is not connected to the network. ON = ENS500EXT is connected to the LAN (2) LEDs network, but not sending or receiving data...
  • Page 17 To configure the ENS500EXT, connect an Ethernet cable to an Ethernet adapter on a LAN Connector computer. For more information about configuring individual features, see Logging The PoE interface allows the ENS500EXT to PoE LAN Connector be powered using the supplied PoE injector...
  • Page 18 Installation Chapter 2...
  • Page 19: System Requirements

    NSTALLATION YSTEM EQUIREMENTS 2.1 System Requirements To install the ENS500EXT, you need the following: Computer (Windows, Linux, Mac OS X Operating System)  Web Browser (Internet Explorer, FireFox, Chrome, Safari)  Network Interface equipped: (one of the following)  Wired connectivity: Network Interface with an open ...
  • Page 20: Installing The Device

    NSTALLING THE EVICE 2.2 Installing the Device Installing the Device Installing the ENS500EXT on a pole or wall optimizes the wire- less access range. To install the ENS500EXT, use the following procedure to Note: mount the device on a pole and refer to the figure below.
  • Page 21 DC port of the PoE injec- tor. CAUTION! ONLY USE THE POWER ADAPTER SUPPLIED WITH THE ENS500EXT. USING A DIFFERENT POWER ADAPTER MIGHT ENS500EXT. DAMAGE THE Figure 2-2: Installing the ENS500EXT 6. Attach and secure the two antennas to the top of the ENS500EXT.
  • Page 22: Wall Mount

    Figure 2-4: Screw Layout Adhesive Label Figure 2-3: Installing the RJ-45 Port Cover 8. Turn over the ENS500EXT. To mount the ENS500EXT on a wall or a pole, follow these steps: Note: Find a position for the ENS500EXT that provides the best...
  • Page 23 Figure 2-5: Wall Mount (1 of 2) Figure 2-6: Wall Mount (2 of 2) 3. Install two screws into the plastic anchors, leaving enough of the screw protruding out to hang the ENS500EXT on.
  • Page 24: Pole Mount

    NSTALLATION NSTALLING THE EVICE Pole mount: 2. Position the ENS500EXT on a pole and secure both cable ties. 1. Thread two cable ties through the mounting bracket on the back of the ENS500EXT. Figure 2-7: Pole Mount (1 of 2) Figure 2-8: Pole Mount (2 of 2) This completes the installation procedure.
  • Page 25: Web Configuration

    Web Configuration Chapter 3...
  • Page 26: Logging In

    ONFIGURATION OGGING 3.1 Logging In The ENS500EXT has a built-in Web Configurator that lets you 3. When the login screen appears, enter admin for the user- manage the unit from any location using a Web browser that name in the top field and admin for the password in the bottom supports HTTP and has Javascript installed.
  • Page 27: Best Practices

    ENS500EXT becomes unstable or crashes. If you forget your password, you will have to reset the ENS500EXT to its factory default settings and lose any customized override settings you configured. However, if you back up an earlier configuration, you will not have to completely reconfigure the ENS500EXT.
  • Page 28: Basic Network Settings

    Basic Network Settings Chapter 4...
  • Page 29: System Status

    ASIC ETWORK ETTINGS YSTEM TATUS 4.1 System Status View the summary of the current system status including system (hardware/software version, date/time), wired network (LAN) and wireless network (WLAN) information. 4.1.1 Using Save/Reload Save and apply the settings shown in the Unsaved changes list, or cancel the unsaved changes and revert to the previous set- tings that were in effect.
  • Page 30: Viewing System Information

    ASIC ETWORK ETTINGS IEWING YSTEM NFORMATION 4.1.2 Viewing System Information Displays status information about the current operating mode. System Information shows the general system information such as operating mode, system up time, firmware version, serial number, kernel version, and application version. LAN Settings shows Local Area Network settings such as the LAN IP address, subnet mask, and MAC address.
  • Page 31 MAC address, connection type, connection status, WAN IP address, subnet mask, primary and secondary DNS. Current Wireless Settings shows wireless information such as frequency and channel. Since the ENS500EXT supports multiple-SSIDs, information about each SSID, such as its ESSID and security settings, are displayed.
  • Page 32: Viewing Wireless Client List

    4.1.3 Viewing Wireless Client List Displays a list of clients associated to the ENS500EXT, along with the MAC addresses and signal strength for each client. To remove an SSID client from the list, click the button that appears in the Kick and Ban column.
  • Page 33: Viewing System Log

    IEWING YSTEM 4.1.4 Viewing System Log The ENS500EXT automatically logs events to internal memory. Note: The oldest events are deleted from the log when memory is full. Click the Save button to save the log information to a text file, click the Refresh button to update the client list, or the Clear button...
  • Page 34: Viewing Connection Status

    ASIC ETWORK ETTINGS IEWING ONNECTION TATUS 4.1.5 Viewing Connection Status Displays the current status of the network. The WLAN information shown includes network type, SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level, and signal strength. The WAN information shown includes the MAC address, connection type, connection status, IP address, IP subnet mask, primary DNS and secondary DNS.
  • Page 35: Viewing Dhcp Client Table

    ABLE 4.1.6 Viewing DHCP Client Table Displays the clients that are associated to the ENS500EXT through DHCP. The MAC addresses, IP addresses, and expiry times period for each client are shown in separate rows. Click the Refresh button to update the client table.
  • Page 36: Viewing Wds Link List

    IEWING 4.1.7 Viewing WDS Link List Displays the clients that are associated to the ENS500EXT through WDS. The MAC addresses, link status and signal strength for each client are also shown. Click the Refresh button to update the client list.
  • Page 37: System Setup

    ETUP 4.2 System Setup The following sections explain the features and functionality of the ENS500EXT in access point mode, client bridge mode, WDS access point mode, WDS bridge mode, WDS station mode and client router mode. 4.2.1 Configuring Operation Mode Set the primary function of the device.
  • Page 38: Configuring Ip Settings

    ETTINGS ONFIGURING ETTINGS 4.2.2 Configuring IP Settings Configure the ENS500EXT LAN settings for the ENS500EXT using a static or dynamic IP address. IP Network Setting Configure the network connection type using either a static IP or dynamic IP. IP Address Enter the LAN IP address of the ENS500EXT.
  • Page 39: Configuring Spanning Tree Settings

    Enable or disable the ENS500EXT Spanning Tree function. Bridge Hello Time Specify Bridge Hello Time, in seconds. This value determines how often the ENS500EXT sends hello packets to communicate information about the topology throughout the entire Bridged Local Area Network Bridge Max Age Specify Bridge Max Age, in seconds.
  • Page 40: Router Setup

    ETUP 4.3 Router Setup 4.3.1 Configuring WAN Settings Configure the WAN settings for the ENS500EXT using a static or dynamic IP address, PPPoE or PPTP. Static IP Setting a static IP address allows an administrator to set a specific IP address for the router and guar- antees that it can not be assigned a different address.
  • Page 41: Dynamic Ip

    Check to Enable to recognize pings on the ENS500EXT WAN interface or Disable to block pings on the ENS500EXT WAN interface. Note: Pinging IP addresses is a common method used by hackers to test whether the IP address is valid. Blocking pings provides some extra security from hackers.
  • Page 42: Point-To-Point Protocol Over Ethernet (Pppoe)

    Check to Enable to recognize pings on the ENS500EXT WAN interface or Disable to block pings on the ENS500EXT WAN interface. Note: Pinging IP addresses is a common method used by hackers to test whether the IP address is valid. Blocking pings provides some extra security from hackers.
  • Page 43: Point-To-Point Tunnelling Protocol (Pptp)

    Connect on Demand If you want the ENS500EXT to end the Internet connection after it has been inactive for a period of time, select this option and enter the number of minutes you want that period of inactivity to last.
  • Page 44 Check to Enable to recognize pings on the ENS500EXT WAN interface or Disable to block pings on the ENS500EXT WAN interface. Note: Pinging IP addresses is a common method used by hackers to test whether the IP address is valid. Blocking pings provides some extra security from hackers.
  • Page 45: Configuring Lan Settings

    Enter the LAN IP subnet mask. Use Router As DHCP Server Check this option to enable the ENS500EXT internal DHCP server. Starting IP Address Specify the starting IP address range for the pool of allocated for private IP addresses. The starting IP address must be on the same subnet as the ending IP address;...
  • Page 46: Configuring Vpn Pass-Through

    4.3.3 Configuring VPN Pass-Through VPN Pass-through allows a secure virtual private network (VPN) connection between two computers. Enabling the options on this page opens a VPN port and enables connections to pass through the ENS500EXT without interruption. PPTP Pass-through Check this option to enable PPTP pass-through mode.
  • Page 47: Configuring Port Forwarding

    ASIC ETWORK ETTINGS ONFIGURING ORWARDING 4.3.4 Configuring Port Forwarding Port forwarding enables multiple server applications on a LAN to serve clients on a WAN over a single WAN IP address. The router accepts incoming client packets, filters them based on the destination WAN, or public, port and protocol and forwards the packets to the appropriate LAN, or local, port.
  • Page 48 ASIC ETWORK ETTINGS ONFIGURING ORWARDING Service Name Enter a name for the port forwarding rule. Protocol Select a protocol for the application: Choices are Both, TCP, and UDP. Starting Port Enter a starting port number. Ending Port Enter an ending port number. All ports numbers between the starting and ending ports will forward users to the IP address specified in the IP Address field.
  • Page 49: Configuring Demilitarized Zone

    ASIC ETWORK ETTINGS ONFIGURING EMILITARIZED 4.3.5 Configuring Demilitarized Zone Configuring a device on the LAN as a demilitarized zone (DMZ) host allows unrestricted two-way Internet access for Internet applica- tions, such as online video games, to run from behind the NAT firewall. The DMZ function allows the router to redirect all packets going to the WAN port IP address to a particular IP address on the LAN.
  • Page 50: Configuring Wireless Lan

    Incorrectly changing these settings may cause the device to stop functioning. Do not modify the settings in this section without a thor- ough understanding of the parameters. Access Point Mode The ENS500EXT supports Access Point Mode. In this mode, users with a wireless client device within range can connect to the ENS500EXT to access the WLAN. Wireless Mode Wireless mode supports 802.11a/n...
  • Page 51 ASIC ETWORK ETTINGS CCESS OINT Current Profile Configure up to four different SSIDs. If many client devices will be accessing the network, you can arrange the devices into SSID groups. Click Edit to configure the profile and check whether you want to enable extra SSIDs. Click Accept to confirm the changes or Cancel to cancel and return previous settings.
  • Page 52: Client Bridge Mode

    ASIC ETWORK ETTINGS LIENT RIDGE Client Bridge Mode Client Bridge Mode lets you connect two LAN segments via a wireless link as though they are on the same physical network. Since the computers are on the same subnet, broadcasts reach all machines. As a result, DHCP information generated by the server reach all client computers as though the clients residing on one physical network.
  • Page 53: Wds Bridge Mode

    WDS B ASIC ETWORK ETTINGS RIDGE WDS Bridge Mode Unlike traditional bridging. WDS Bridge Mode allows you to create large wireless networks by linking several wireless access points with WDS links. WDS is normally used in large, open areas, where pulling wires is cost prohibitive, restricted or physically impossible. Wireless Mode Wireless mode supports 802.11a/n mixed modes.
  • Page 54 WDS B ASIC ETWORK ETTINGS RIDGE Security Select the type of WDS security: None, WEP, or AES. WEP Key Enter the WEP key. AES Pass phrase Enter the AES pass phrase. MAC Address Enter the MAC address of the Access Point to which you want to extend wireless connectivity.
  • Page 55: Client Router Mode

    ASIC ETWORK ETTINGS LIENT OUTER Client Router Mode In Client Router Mode, you can access the Internet wirelessly with the support of a WISP. It also supports VPN pass-through for sen- sitive data secure transmission. Wireless Mode Wireless mode supports 802.11a/n mixed modes.
  • Page 56: Configuring Wireless Security

    IRELESS ECURITY 4.4.2 Configuring Wireless Security The Wireless Security Settings section lets you configure the ENS500EXT’s security modes: WEP, WPA-PSK, WPA2-PSK, WPA- PSK Mixed, WPA, WPA2, and WPA Mixed. We strongly recommend you use WPA2-PSK. Wired Equivalent Privacy (WEP) Security Mode Select WEP from the drop-down list to begin the configuration.
  • Page 57: Wi-Fi Protected Access Pre-Shared Key (Wpa-Psk)

    (WPA-PSK) ASIC ETWORK ETTINGS ROTECTED CCESS HARED Wi-Fi Protected Access Pre-Shared Key (WPA-PSK) Security Mode Select WPA-PSK from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES. ...
  • Page 58: Wi-Fi Protected Access 2 Pre-Shared Key (Wpa2-Psk)

    (WPA2-PSK) ASIC ETWORK ETTINGS ROTECTED CCESS HARED Wi-Fi Protected Access 2 Pre-Shared Key (WPA2-PSK) Security Mode Select WPA2-PSK from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES. ...
  • Page 59: Wi-Fi Protected Access Pre-Shared Key (Wpa-Psk) Mixed

    (WPA-PSK) M ASIC ETWORK ETTINGS ROTECTED CCESS HARED IXED Wi-Fi Protected Access Pre-Shared Key (WPA-PSK) Mixed Security Mode Select WPA2-PSK Mixed from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES. ...
  • Page 60: Wi-Fi Protected Access (Wpa)

    (WPA) ASIC ETWORK ETTINGS ROTECTED CCESS Wi-Fi Protected Access (WPA) Security Mode Select WPA from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES.  TKIP = automatic encryption with WPA-PSK; requires pass- ...
  • Page 61: Wi-Fi Protected Access 2 (Wpa2)

    2 (WPA2) ASIC ETWORK ETTINGS ROTECTED CCESS Wi-Fi Protected Access 2 (WPA2) Security Mode Select WPA2 from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES. ...
  • Page 62: Wi-Fi Protected Access (Wpa) Mixed

    (WPA) M ASIC ETWORK ETTINGS ROTECTED CCESS IXED Wi-Fi Protected Access (WPA) Mixed Security Mode Select WPA Mixed from the drop-down list to begin the configuration. Encryption Select Both, TKIP, or AES as the encryption type. Both = uses TKIP and AES. ...
  • Page 63: Configuring Wireless Mac Filter

    Wireless MAC Filters are used to allow or deny network access to wireless clients according to their MAC addresses. You can manu- ally add a MAC address to restrict the permission to access ENS500EXT. The default setting is Disable Wireless MAC Filters.
  • Page 64: Configuring Wds Link Settings

    Note: You must enter the ENS500EXT’s MAC address in an access point to establish a connection to it. For more information on how to enter a MAC address in the access point, refer to its documentation. Not all access points support this feature.
  • Page 65: Configuring Wireless Advanced Settings

    ASIC ETWORK ETTINGS ONFIGURING IRELESS DVANCED ETTINGS 4.4.5 Configuring Wireless Advanced Settings Configure the advanced wireless settings for your access point using the screens in this section. Leave these settings to their default values if you are not sure what values to enter. Data Rate Select a data rate from the drop-down list.
  • Page 66: Client Limit

    ASIC ETWORK ETTINGS LIENT IMIT Client Limit Enable Client Limit to specify the number of clients (default: 127, Maximum: 127) allowed to connect to this access point. Click Accept to confirm the changes or Cancel to cancel and return previous settings. 4-38...
  • Page 67: Management Setup

    4.5.1 Configuring Administrator Account Click the Administration link under the Management menu to change the user name and password used to log on to the ENS500EXT Web Configurator. The default user name is admin and the default password is admin. Changing these settings protects the ENS500EXT configuration settings from being accessed by unauthorized users.
  • Page 68: Configuring Management Vlan

    Click Accept to confirm the changes or Cancel to cancel and return previous settings. Note: If you reconfigure the Management VLAN ID, you may lose your connection to the ENS500EXT. Verify that the DHCP server supports the reconfigured VLAN ID and then reconnect to the ENS500EXT using the new IP address.
  • Page 69: Configuring Snmp

    ONFIGURING 4.5.3 Configuring SNMP SNMP is used in network management systems to monitor network-attached devices for conditions that warrant administrative atten- tion. SNMP Enable or disable the ENS500EXT SNMP function. Contact Enter the contact details of the device. Location Enter the location of the device.
  • Page 70 SNMP ASIC ETWORK ETTINGS ONFIGURING Engine ID Specify the engine ID for SNMPv3. Click Save/Apply to apply the changes or Cancel to return previous settings. 4-42...
  • Page 71: Configuring Backup/Restore Settings

    ENS500EXT devices that need to be configured with the same settings. This page also lets you return the ENS500EXT to its factory default settings. If you perform this procedure, any changes made to the ENS500EXT default settings will be lost.
  • Page 72: Configuring Auto Reboot Settings

    ASIC ETWORK ETTINGS ONFIGURING EBOOT ETTINGS 4.5.5 Configuring Auto Reboot Settings Click the Auto Reboot Settings link under the Management menu to enable or disable the Auto Reboot function. This feature is par- ticularly convenient to administrators for the scheduling of auto rebooting on the device. This page also allows you to set the frequency of this function.
  • Page 73: Configuring Firmware Upgrade

    Upgrading firmware through a wireless connection is not recommended. Firmware upgrading must be performed while connected to an Ethernet (LAN port) with all other clients disconnected. The firmware upgrade procedure can take several minutes. Do not power off the ENS500EXT during the firmware upgrade, as it can cause the device to crash or become unusable.
  • Page 74: Configuring System Time

    YSTEM 4.5.7 Configuring System Time Change the system time of the ENS500EXT by manually entering the information, synchronizing the device with a PC, or setup auto- matic updates through a network time (NTP) protocol server. Manually Set Date and Time...
  • Page 75: Configuring Wi-Fi Schedule

    ASIC ETWORK ETTINGS ONFIGURING CHEDULE 4.5.8 Configuring Wi-Fi Schedule Use the Wi-Fi schedule function to control the wireless power ON/OFF service that operates on a routine basis. Add a Schedule Service Create a schedule service type and date/time parameters for a specific service. Schedule Name Enter the description of the schedule service.
  • Page 76: Schedule Services Table

    ENS500EXT to an NTP server, see Configuring System Time. Schedule Table Displays a list of scheduled services for the ENS500EXT. The properties of each service displayed are: Displays the ID number of the service in the table. Name Displays the description of the service.
  • Page 77: Configuring Command Line Interface

    4.5.9 Configuring Command Line Interface Most users will configure the ENS500EXT through the graphical user interface (GUI). However, for those who prefer an alternative method there is the command line interface (CLI). The CLI can be access through a command console, modem or Telnet connec- tion.
  • Page 78: Configuring Logging

    4.5.10 Configuring Logging Display a list of events that are triggered on the ENS500EXT Ethernet and wireless interfaces. You can consult this log if an unknown error occurs on the system or when a report needs to be sent to the technical support department for debugging purposes.
  • Page 79: Configuring Diagnostics

    Enter the interval for the speed test. Start Speed Test Click Start Speed Test to begin the speed test operation. IPv4 Port Displays the IPv4 port number of the ENS500EXT. IPv6 Port Displays the IPv6 port number of the ENS500EXT. 4-51...
  • Page 80: Viewing Device Discovery

    ASIC ETWORK ETTINGS IEWING EVICE ISCOVERY 4.5.12 Viewing Device Discovery Device Name Displays the name of the devices connected to the network. Operation Mode Displays the operation mode of the devices connected to the network. IP Address Displays the IP address of the devices connected to the network. System MAC Address Displays the system MAC address of the devices connected to the network.
  • Page 81: Configure Denial Of Service Protection

    ASIC ETWORK ETTINGS ONFIGURE ENIAL OF ERVICE ROTECTION 4.5.13 Configure Denial of Service Protection Use TCP SYN Cookies Protection Click to enable TCP SYN cookies protection. SYN Flood Attack Protection Click to enable or disable SYN Flood Attack Protection. Match Interval Per Second Enter the allowed number of packets per second.
  • Page 82: Logging Out

    ASIC ETWORK ETTINGS OGGING 4.5.14 Logging Out Click Logout to logout from the ENS500EXT. 4-54...
  • Page 83: Federal Communication Commission Interference Statement
