PART IDENTIFICATION CHART

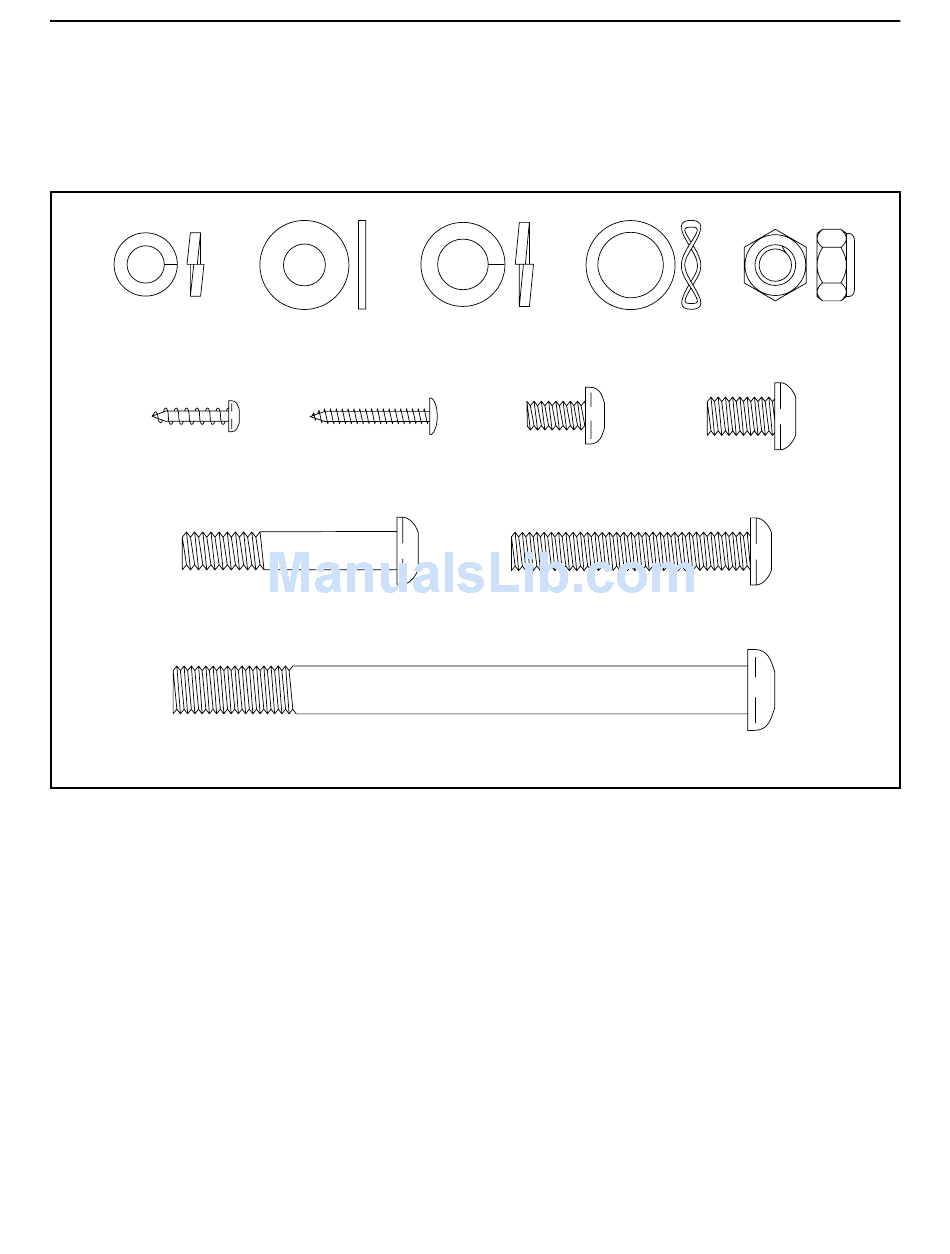

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the
key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it
has been preassembled. Extra parts may be included.
M8 Split Washer
(131)––6
M4 x 16mm
Screw (93)––16
M8 x 45mm Bolt (104)––6
M8 x 23mm
Washer (128)––4
x 1.5mm Washer
(126)––10
M4 x 25mm
Screw (132)––2
M10 x 120mm Screw (100)––4
M10 Split Wave Washer
(118)––2
M6 x 12mm
Screw (111)––2
M8 x 50mm Screw
(123)––6
5
M8 Locknut
(105)––6
M8 x 16mm
Screw (102)––18
