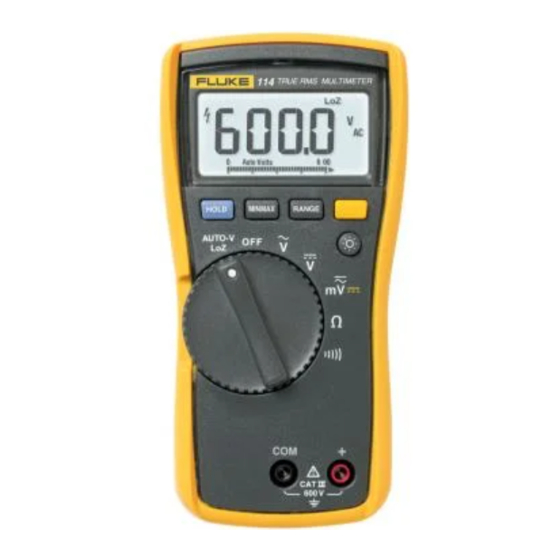

Fluke 114
Electrical Multimeter
Actual size
R
N10140

Technical Data

Compact true-rms
meter for electrical
troubleshooting
The Fluke 114 is the troubleshooting
tool for "go/no-go" testing. It includes
a feature to prevent false readings
caused by ghost voltage.
Features include:
•
AutoVolt: automatic ac/dc voltage selection
•
Large white LED backlight to work in poorly lit areas
•
Resistance and continuity
•
Min/Max/Average to record signal fluctuations
•
CAT III 600 V safety rated

General specifications

Accuracy is specified for 1 year after calibration, at operating
temperatures of 18 °C to 28 °C, with relative humidity at
0 % to 95 %.
The accuracy specifications take the form of:
± ( [ % of Reading ] + [ Counts ] )
Maximum voltage between
any terminal and earth
ground
Surge protection
Display
Bar graph
Operating temperature
Storage temperature
Battery
Battery life
600 V
6 kV peak per IEC 61010-1 600 V
CAT III, Pollution Degree 2
Digital: 6,000 counts, updates 4/sec
33 segments, updates 32/sec
-10 °C to + 50 °C
-40 °C to + 60 °C
9 volt Alkaline, NEDA 1604A/
IEC 6LR61
400 hours typical, without backlight

Advertisement

loading

Related Manuals for Fluke 114

Summary of Contents for Fluke 114

  • Page 1: Technical Data

    Fluke 114 Electrical Multimeter Technical Data Compact true-rms meter for electrical troubleshooting The Fluke 114 is the troubleshooting tool for “go/no-go” testing. It includes a feature to prevent false readings caused by ghost voltage. Features include: • AutoVolt: automatic ac/dc voltage selection • Large white LED backlight to work in poorly lit areas •...
  • Page 2 0.9 % + 1 600.0 kW 0.1 kW 6.000 MW 0.001 MW 40.00 MW 0.01 MW 1.5 % + 2 Notes: All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of ≤ 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Fluke. Keeping your world up and running. Ordering Information Fluke Corporation Fluke-114 Electrical Multimeter PO Box 9090, Everett, WA USA 98206 Included Fluke Europe B.V. TL75 Test leads, holster, User’s manual PO Box 1186, 5602 BD Eindhoven, The Netherlands and 9 V battery (installed). For more information call: In the U.S.A. (800) 443-5853 or...
