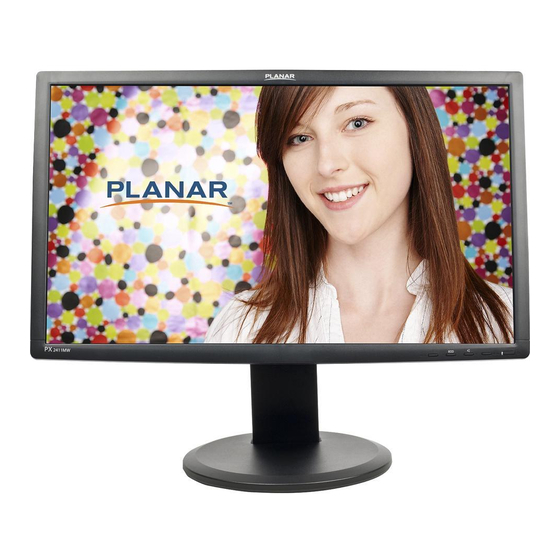

- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
TABLE OF CONTENTS For your safety ----------------------------------------------------------- 1 Safety precautions ------------------------------------------------ 2 ----------------------------- Special notes on lcd monitors Before you operate the monitor ----------------------------------- 3 Features -------------------------------------------------------------- 3 Packing list ---------------------------------------------------------- 3 Installation instructions ------------------------------------------ 4 Controls and connectors ------------------------------------------ 5 Adjusting the viewing angle ----------------------------------- 6 Operating instructions --------------------------------------------------- 7 General instructions ---------------------------------------------- 7... -
Page 4: For Your Safety
FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Safety Precautions
PRECAUTIONS • Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement. • Do not place the monitor on an unstable cart, stand, or table. If the monitor falls, it can injure a person and cause serious damage to the appliance. -
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. -
Page 7: Installation Instructions
INSTALLATION INSTRUCTIONS STAND 1 Put a piece of soft cloth on the table beforehand to prevent the monitor from being scratched. Lay the monitor flat on a table with front face down. 2 Install the Stand-Base to the Monitor. 3 Fix the Monitor with the Stand by the screw 2 firmly, and the knob of the scew push down. -
Page 8: Controls And Connectors
CONTROLS AND CONNECTORS SIGNAL CABLE Connecting the Signal Cable : Plug one end of the signal cable to the LCD monitor and the other end to a computer or a video source. Caution: If the AC outlet is not grounded (with three holes), install the proper grounding adapter (not supplied). -
Page 9: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. -
Page 10: Operating Instructions
OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. •... - Page 11 FRONT PANEL CONTROL • Power Button Press this button to switch ON/OFF monitor’s power. • Power Indicator: Blue — Power On mode. Orange —Off mode. • MENU / ENTER : Activates OSD menu or function adjust confirm. • ECO/(-) Activates the ECO control when the OSD is OFF or navigate through adjustment icons when OSD is ON or adjust a function when function is activated.
-
Page 12: How To Adjust A Setting
HOW TO ADJUST A SETTING 1. Press the MENU-button to activate the OSD window. 2. Press + or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press + or - again to navigate through the sub-menu functions. -
Page 13: Adjusting The Picture
ADJUSTING THE PICTURE Main Main Menu Menu Description Item Menu Icon Enhances Contrast Ratio Note: When this function is turned "On" you cannot adjust the current settings for Contrast, Brightness, ECO mode or Gamma. (VGA input only) (VGA input only) (VGA input only) (VGA input... - Page 14 Main Main Menu Menu Description Item Menu Icon...
- Page 15 Main Main Menu Menu Description Item Menu Icon...
- Page 16 Main Main Menu Menu Description Item Menu Icon...
-
Page 17: Plug And Play
PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. -
Page 18: Technical Support(Faq)
TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution *Check if the Power Switch is in the ON Power LED is not on position *Power Cord should be connected *Check if the PC system is Plug & Play compatible *Check if the Video Card is Plug & Play No Plug &... -
Page 19: Error Message & Possible Solution
TECHNICAL SUPPORT (FAQ) (cont.) CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width. FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture. -
Page 20: Appendix
APPENDIX SPECIFICATIONS Driving system TFT Color LCD LCD Panel Size 60cm(23.6") Pixel pitch 0.2715( H ) × 0.2715( V ) Video R,G,B Analog Interface HDMI Input Separate Sync. H/V TTL Analog:24-80kHz,Digital:30kHz – 80kHz H-Frequency Analog&Digital:55-75Hz V-Frequency Display Colors 16.7M Colors Dot Clock 170MHz 1920X1080@60Hz... -
Page 21: Factory Preset Timing Table
FACTORY PRESET TIMING TABLE HORIZONTAL VERTICAL STAND RESOLUTION FREQUENCY(kHZ) FREQUENCY(Hz) 640 x 480 31.469 59.94 640 x 480 66.667 640 x 480 37.861 72.809 Mac VGA 640 x 480 37.5 Dos-mode 720 x 400 31.469 70.087 800 x 600 35.156 56.25 800 x 600 37.879... -
Page 22: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION Green Detect Cable Blue Ground Ground DDC-Serial Data Ground H-Sync R-Ground V-Sync G-Ground DDC-Serial Clock B-Ground 24 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. - Page 23 19 - Pin Color Display Signal Cable DESCRIPTION DESCRIPTION TMDS Data 2+ 11. TMDS Clock Shield TMDS Data TMDS Clock- Shield TMDS Data 2- 13. CEC TMDS Data 1+ 14. N.C. TMDS Data DDC SCL Shield TMDS Data 1- 16. DDC CLK TMDS Data 0+ 17.
-
Page 24: Wall Mounting (Optional)
Wall Mounting (Optional) Refer to the instructions that come with the base mounting kit. To convert your LCD display from a desk-mounted to a wall-mounted display, do the following: Verify that the Power button is turned Off, then disconnect the power cord. -
Page 25: Product Registration And Technical Support
Product Registration and Technical Support Register Your Planar Products Today Thank you choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html... - Page 26 Q41G240193511A...
