Planar PX2411 User Manual

Planar px2411: user guide
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
PX241 W
1

Advertisement

Table of Contents
loading

Related Manuals for Planar PX2411

Summary of Contents for Planar PX2411

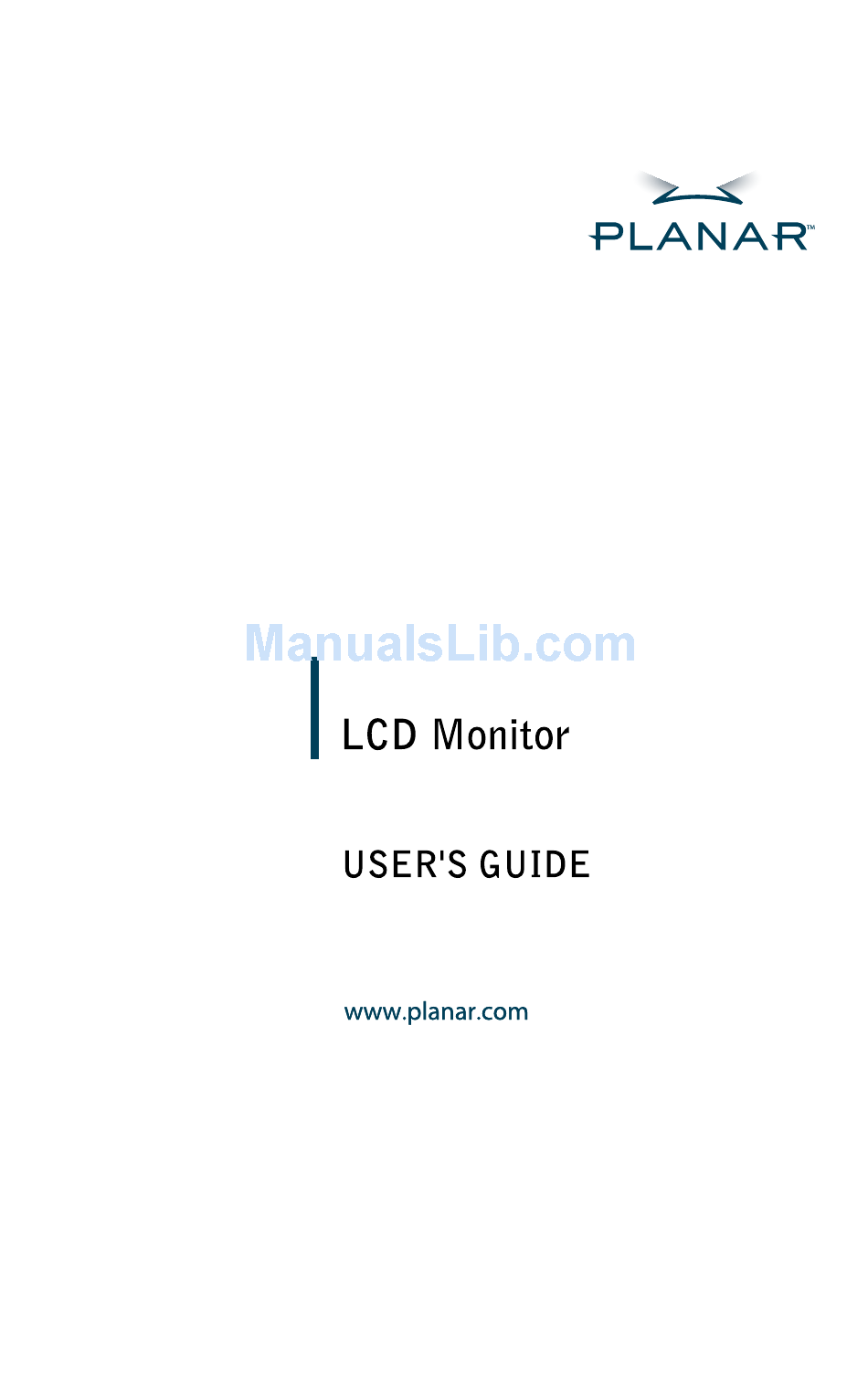

  • Page 1 PX241 W...
  • Page 2 Planar your support question. Talk to a Customer Service Representative To contact Planar's Customer First(TM) Technical Support Service call 1.866.PLANAR.1 (866.752.6271). This service is available 5am - 5pm Pacific Time, 8am - 8pm Eastern Time, Monday through Friday. Contact Us 24x7 Online Technical Support: http://www.planar.com/support...
  • Page 4 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.

  • Page 6: Table Of Contents

    For Your Safety -----------------------------------------------------------5 For Your Safety General Notes ----------------------------------------- 7 Special notes on LCD monitors ------------------------------------------------------------ 7 Other notes Before You Operate The Monitor ---------------------------------------------------------------- 8 Features ----------------------------------- 8 Checking the contents of the package Installation Instructions ---------------------------------------------------------- 9 Power source...

  • Page 7: For Your Safety

    WARNING: To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.
  • Page 8 Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

  • Page 9: General Notes

    • The LCD panel used in this monitor is a very high technology product with 6,912,000 thin film transistors giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black.

  • Page 10: Before You Operate The Monitor

    Monitor 24-Pin DVI Cable Register Your Planar Products Today Thank you for choosing Planar. To assure you receive all the benefits of your Planar product and services, register your Planar product today. Visit our website to register your product at http://www.planar.com/support/product_registration.html...

  • Page 11: Installation Instructions

    Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This LCD monitor has an internal Universal Power Supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)

  • Page 12: Connecting The Cables

    1. Connect the female end of the AC power cord to the AC-in port on the back of the monitor. Connect the other end to a nearby AC-outlet. 2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port.

  • Page 13: Tilt And Height Adjustment

    INSTALLATION INSTRUCTIONS (cont.) Tilt Adjustment For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's angle to your own preference. Hold the stand so you do not topple the monitor when you change the monitor's angle.

  • Page 14: Operating Instructions External Controls

    OPERATING INSTRUCTIONS EXTERNAL CONTROLS Source Auto Adjust button/Exit </Contrast • Power Button: Press this button to turn the monitor ON or OFF. • >/ Brightness Adjust brightness or function adjust. • </Contrast Adjust contrast or function adjust. • MENU / ENTER: Activates OSD menu or confirms function .

  • Page 15: Power Indicator

    Standby mode. • OSD-Lock Function: To lock the OSD, press and hold the MENU- button while the monitor is off and then press power button to turn the monitor on. To un-lock the OSD - press and hold the MENU- button...

  • Page 16: How To Adjust A Setting

    OPERATING INSTRUCTIONS (cont.) How To Adjust A Setting 1. Press the MENU-button to activate the OSD window (Figure 5). 2. Press ＜　or ＞ to navigate through the functions. Once the desired function is highlighted, press the MENU-button selected has a sub-menu, press ＜ or ＞ again to navigate through the sub-menu functions.

  • Page 17: The Descriptions For Function Control Leds

    OPERATING INSTRUCTIONS (cont.) The descriptions for function control LEDS Main Main Menu Menu Menu Item Icon Luminance Contrast Brightness Image Focus Setup Clock Image H. Position Position V. Position Color Warm Temp. Cool sRGB User / Red User / Green User / Blue Menu Item...
  • Page 18 OPERATING INSTRUCTIONS (cont.) Main Main Menu Menu Icon Item Input Select OSD Setup Language Information Reset Exit Menu Menu Icon Item Analog Digital H. Position V. Position Timeout Language Information Description Select input signal from analog source(D-Sub) Select input signal from digital source (DVI) Adjust the horizontal position of the OSD.

  • Page 19: Technical Support (Faq)

    *Check if the Video Card is Plug & Play compatible *Check if the D-15 plug pin of Video Cable is bent *Make sure the LCD Monitor Drivers are installed *Adjust the Contrast and Brightness Controls. *Move electrical devices that may cause electrical interference.

  • Page 20: Error Message & Possible Solution

    TECHNICAL SUPPORT (FAQ) (cont.) CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width. FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture.

  • Page 21: Appendix

    APPENDIX SPECIFICATIONS LCD Panel Input Display Colors Dot Clock Max. Resolution Plug & Play Power Consumption Input Connector Input Video Signal Maximum Screen Size Power Source Environmental Considerations Dimensions Weight (N. W.) Driving system TFT Color LCD Size 61cm(24") Pixel pitch 0.270mm( H )x 0.270mm( V ) Video R,G,B Analog Interface...
  • Page 22 APPENDIX (cont.) External Controls: Power Consumption Regulatory Compliance Switch • Auto Adjust button/Exit • Contrast • Brightness • Menu/Enter • Power Button • Functions Contrast • Brightness • Focus • Clock • H.Position • V.Position • (Warm) Color • (Cool)Color •...

  • Page 23: Preset Display Modes

    APPENDIX (cont.) Preset Display Modes STANDARD RESOLUTION SVGA 832x624 SXGA 1152x870 SVGA VESA 1024x768 1024x768 1024x768 1152x864 SXGA 1280x960 1280x960 1280x1024 1280x1024 WXGA+ 1440x900 UXGA 1600x1200 WSXGA 1680x1050 WUXGA 1920x1200 HORIZONTAL FREQUENCY(KHZ) 720x400 31.469 640x480 31.500 640x480 35.000 49.725 67.500 640x480 31.469 640x480...

  • Page 24: Connector Pin Assignment

    APPENDIX (cont.) Connector Pin Assignment PIN NO. DESCRIPTION Video-Red Video-Green Video-Blue Ground GND-R GND-G GND-B PIN NO. DESCRIPTION TMDS Data 2- TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock DDC Data TMDS Data 1- TMDS Data 1+ TMDS Data 1/3 Shield...
  • Page 25 Beaverton, OR 97006-1992 www.planar.com © 200 Planar Systems, Inc. Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice. Q41G2401935 1A...

This manual is also suitable for:

Px2411w
