Summary of Contents for Dual XD250

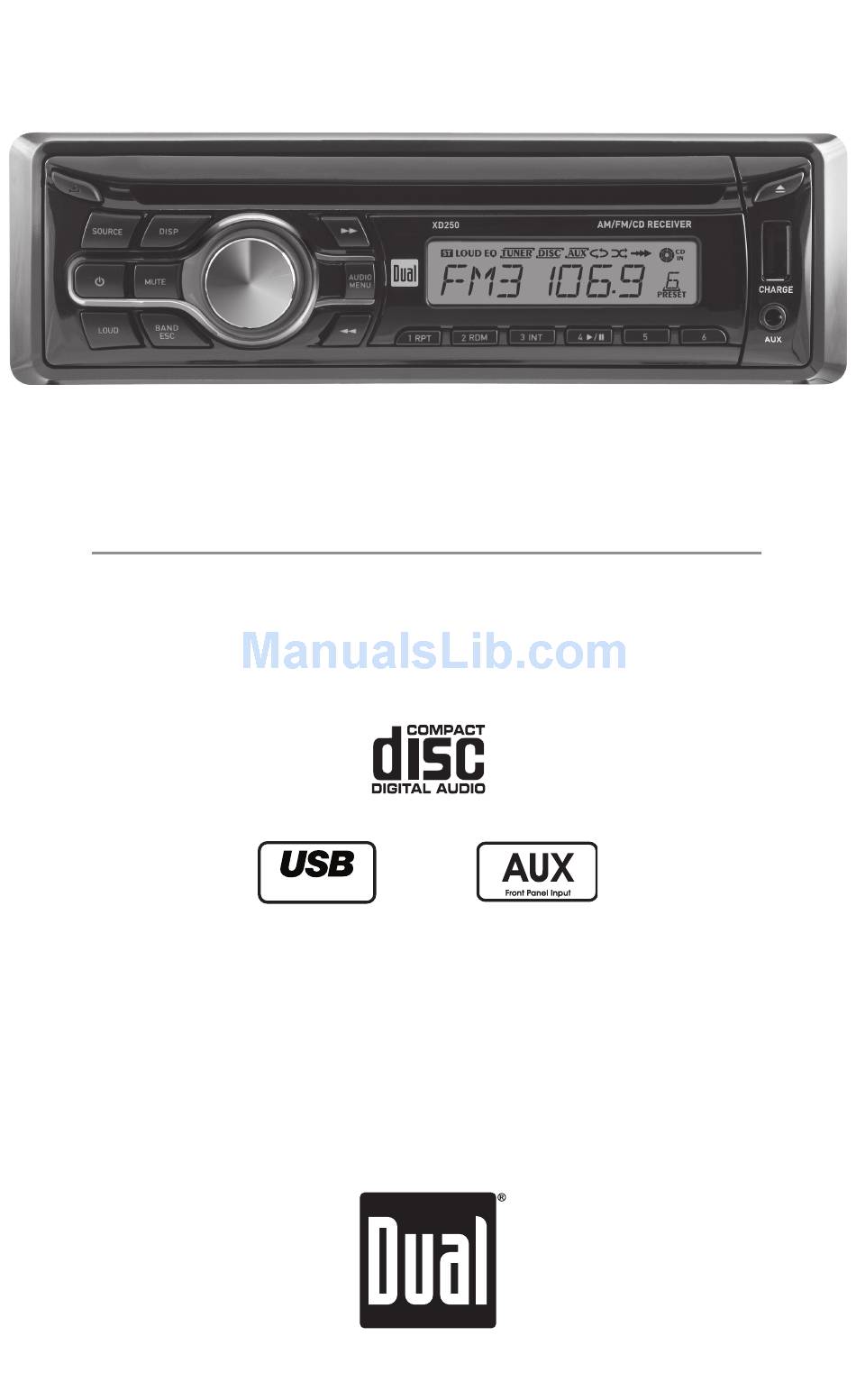

- Page 1 XD250 INSTALLATION/OWNER'S MANUAL AM/FM/CD Receiver Charge Port...
-
Page 2: Preparation
XD250 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration. -
Page 3: Wiring Diagram
Gray/Black (-) Violet/Black (-) Using an incorrect fuse could Violet (+) Gray (+) damage the radio. The XD250 uses one 5 amp AGC fuse located in-line. Left Front Left Rear White/Black (-) Green/Black (-) White (+) Green (+) * Caution - Do not attach any speaker leads to ground as severe damage will occur. -
Page 4: Control Locations
Preset 6 Power The XD250 has an easy-to-use interface that provides a rewarding experience, as well as support for your favorite tunes. Audio CD-R and CD-RW disc playback ensures compatibility with your music collection, and the RCA preamp output provides the right connections to expand your system. -
Page 5: General Operation
XD250 OPERATION General Operation Faceplate Removal Press RELEASE and pull away from the left side to remove. To re-install, insert right side of faceplate first then push left side to secure. Semi-permanent Remove trim ring and install supplied #1 x 7/32” Phillips Faceplate Installation head screw through left side of mounting frame into faceplate. - Page 6 XD250 OPERATION General Operation Press and hold AUDIO/MENU for more than 3 seconds to Setup Menu access the setup menu, then press AUDIO/MENU to cycle through menu options. When desired option appears in the display, rotate the volume knob left/right to adjust or activate the desired function.
-
Page 7: Audio Operation
XD250 OPERATION Audio Operation Bass Press AUDIO until BAS appears Rotate the volume knob left/right to adjust (-6 minimum / 6 maximum) Treble Press AUDIO until TRE appears Rotate the volume knob left/right to adjust (-6 minimum / 6 maximum) Balance Press AUDIO until BAL appears Rotate the volume knob left/right to adjust... -
Page 8: Cd Player Operation
XD250 OPERATION CD Player Operation Insert CD With the label facing up, insert a standard size CD into the CD slot. The CD will automatically begin playback. Eject CD Press the EJECT button to stop and eject the CD. The unit will change to tuner mode. -
Page 9: Troubleshooting
XD250 OPERATION Troubleshooting Problem Cause Action Yellow wire not connected or incorrect voltage Check connections for proper voltage Red wire not connected or incorrect voltage (11~16VDC) Unit will not turn on (no power) Black wire not connected Check connection to ground Fuse blown Replace fuse Speaker wires not connected Check connections at speakers Unit has power ... -
Page 10: Limited One Year Warranty
2. If you require service during the the original purchase. warranty period, you must carefully pack the product (preferably in the Dual Electronics Corp. agrees, at our original package) and ship it by prepaid option, during the warranty period, transportation with a copy of the original... -
Page 11: Fcc Compliance
XD250 OPERATION FCC Compliance This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Specifications
Power Output: 5 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to noise ratio: 75dBA (reference: 1 watt into 4 ohms) Dual Electronics Corp. Toll Free: 1-866-382-5476 www.dualav.com ©2012 Dual Electronics Corp. All rights reserved. NSA0512-V01...
