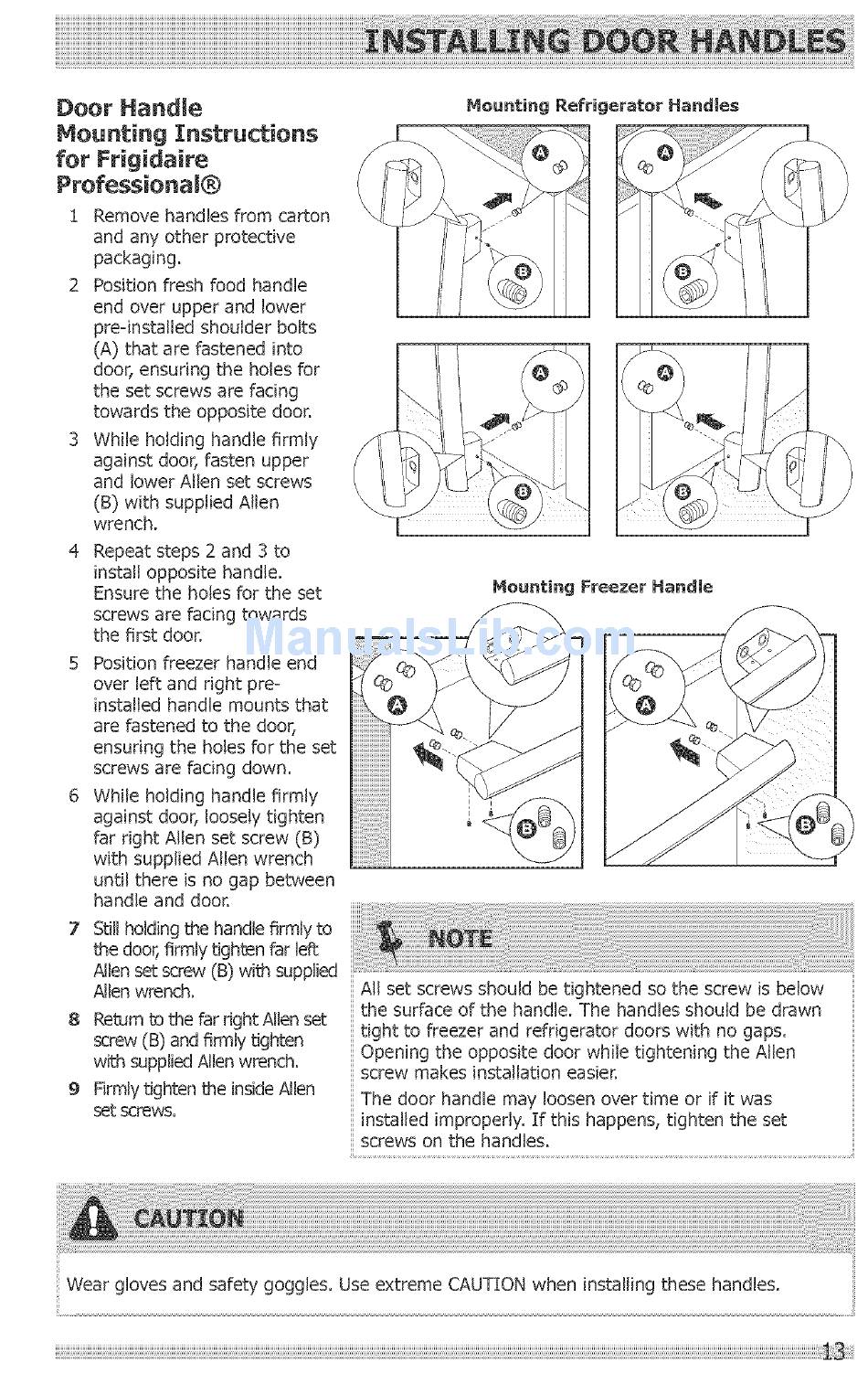

Door Handle
Mounting Instru_ion$
for Frigidaire
Professional®
1 Remove handles from carton
and any other protective
packaging.
2 Position fresh food handle
end over upper and lower
pre-installed shoulder bolts
(A) that are fastened into
door, ensuring the holes for
the set screws are facing
towards the opposite door.
3 While holding handle firmly
against door, fasten upper
and lower Allen set screws
(B) with supplied Allen
wrench.
Repeat steps 2 and 3 to
install opposite handle,
Ensure the holes for the set
screws are facing towards
the first door.
5 Position freezer handle end
over left and right pre-
installed handle mounts that
are fastened to the door,
ensuring the holes for the set
screws are facing down.
6 While holding handle firmly
against door, loosely tighten
far right Alien set screw (B)
with supplied Allen wrench
until there is no gap between
handle and door.
Still holding the handle firmly to
the door, firmly tighten far left
Allen set screw (B) with supplied
Alien wrench.
8 Return tD the far right Allen set
screw (B) and firmly tighten
with supplied Allen wrench.
9 Firmly tighten the inside Allen
set screws.
Mounting Refrigerator Handles
All set screws should be tightened so the screw is below
the surface of the handle. The handles should be drawn
tight to freezer and refrigerator doors with no gaps.
Opening the opposite door while tightening the Allen
screw makes installation easier.
The door handle may loosen over time or if it was
installed improperly. :If this happens, tighten the set
screws on the handles.
Wear gloves and safety goggles, Use extreme CAUTIONwhen installing these handles,
