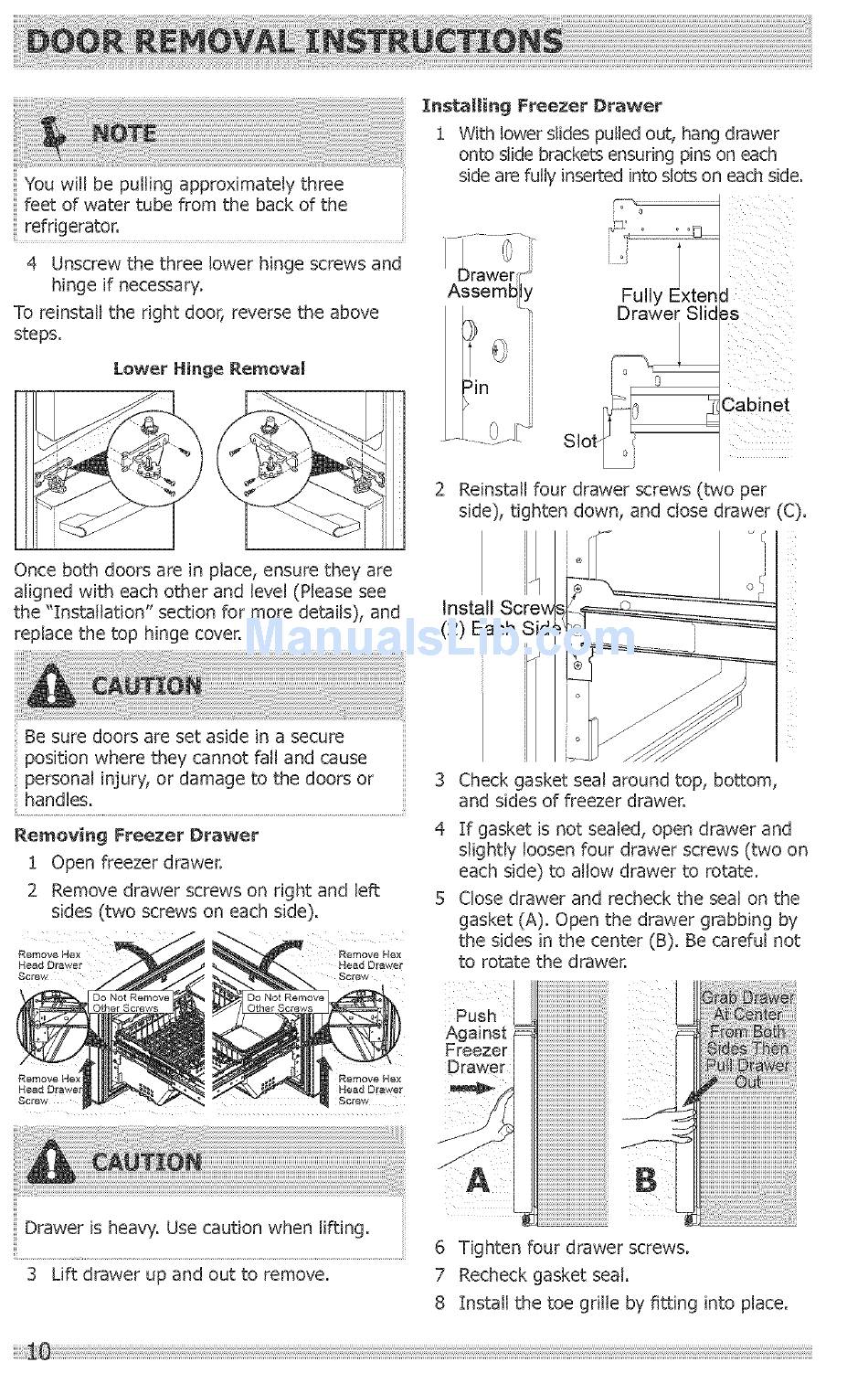

Frigidaire 242292001 Use & Care Manual page 10

You will b epulling approximately three
feet o fwater tube from the back o fthe
refrigeraton
4 Unscrew the three l ower hinge screws and
hinge i fnecessary.
To reinstall the right d oor, reverse the above
steps.
Lower Hinge Removal
Once both doors are in place, ensure they are
aligned with each other and level (Please see
the "Installation" section for more details), and
replace the top hinge cover.
Be sure doors are set aside in a secure
position where they cannot fall and cause
personal injury; or damage to the doors or
handles.
Removing Freezer Drawer
1 Open freezer drawer.
2 Remove drawer screws on right and left
sides (two screws on each side).
Head Drawer
Screw Screw
Remove Hex
Head Drawer
Screw Screw
Drawer is heavy. Use caution when lifting.
3 Lift drawer up and out to remove.
:]Installing Freezer Drawer
1 With lower slides pulled out, hang drawer
onto slide brackets ensuring pins on each
side are fully inserted into slots on each side.
%*%
i 0
.............. ;_-. _=_: . .......... ::_
urawerri _
Assemb!LY Fully Exten
Drawer Slid
Slo_ _ cabinet
2 Reinstall four drawer screws (two per
side), tighten down, and close drawer (C).
(2) Each Sid_
3 Check gasket seal around top, bottom,
and sides of freezer drawer.
4 If gasket is not sealed, open drawer and
slightly loosen four drawer screws (two on
each side) to allow drawer to rotate.
5 Close drawer and recheck the seal on the
gasket (A). Open the drawer grabbing by
the sides in the center (B). Be careful not
to rotate the drawer.
Push
Against
Freezer
Drawer
6 Tighten four drawer screws.
7 Recheck gasket seal.
8 Install the toe grille by fitting into place.
