Kenmore 141.152832 Use And Care Manual

Dual purpose electric grill

Advertisement

Available languages

Available languages

Quick Links

Use and Care Guide
Dual Purpose ElectricGrill
Model 141.152832
LISTED
This dual purpose
grill can be used as a portable
model
or attached
to the included
grill cart as shown
above right.
Call us first if you have any problem
with
this product.
We can help you with ques-
tions about assembly and grill operation
or
if there
are damaged
or missing
parts
when you unpack this unit from the ship-
ping box. Please
call before
contacting
your local retailer.
1 - 888-317-7642
8am-8pm
CST, Monday
throu,qh
Friday
• NOTE TO ASSEMBLER/INSTALLER:
Leave this Guide with the consumer.
• NOTETOCONSUMER:
Keep this Guide for future reference.
" RECORDYOURSERIAL#
(See rating label on grill)
Failure to comply with these instructions
could
result in a fire or electric shock that could cause
serious bodily injury or property damage.
FOR OUTDOOR
USE ONLY. DO NOTUSE
INDOORS OR FOR COMMERCIAL
COOKING.
Whether this grill was assembled by you or some-
one else, you must read this entire
manual
before
using
your
grill
to ensure the grill is
properly assembled, installed and maintained.
Your grill will get very hot. Always wear a flame
retardant BBQ Mitt when cooking on your grill.
Never lean over cooking areas while using grill. Do
not touch cooking surfaces, Lid, grill housing or
other partswhile grill is in operation, or until the grill
has cooled down after use.
Use your grill at least 2 feet away from anywall
or surface. Use your grill at least 2 feet away from
combustible objects that can melt or catch fire
(such as vinyl or wood siding, fences and over-
hangs) or sources of ignition including pilot lights
on water heaters and live electrical appliances.
Guide # P80174003H - Date:2007/12/11
Sears, Roebuck
and Co., Hoffman
Estates,
IL 60179,
USA www.sears.com

Advertisement

loading

Summary of Contents for Kenmore 141.152832

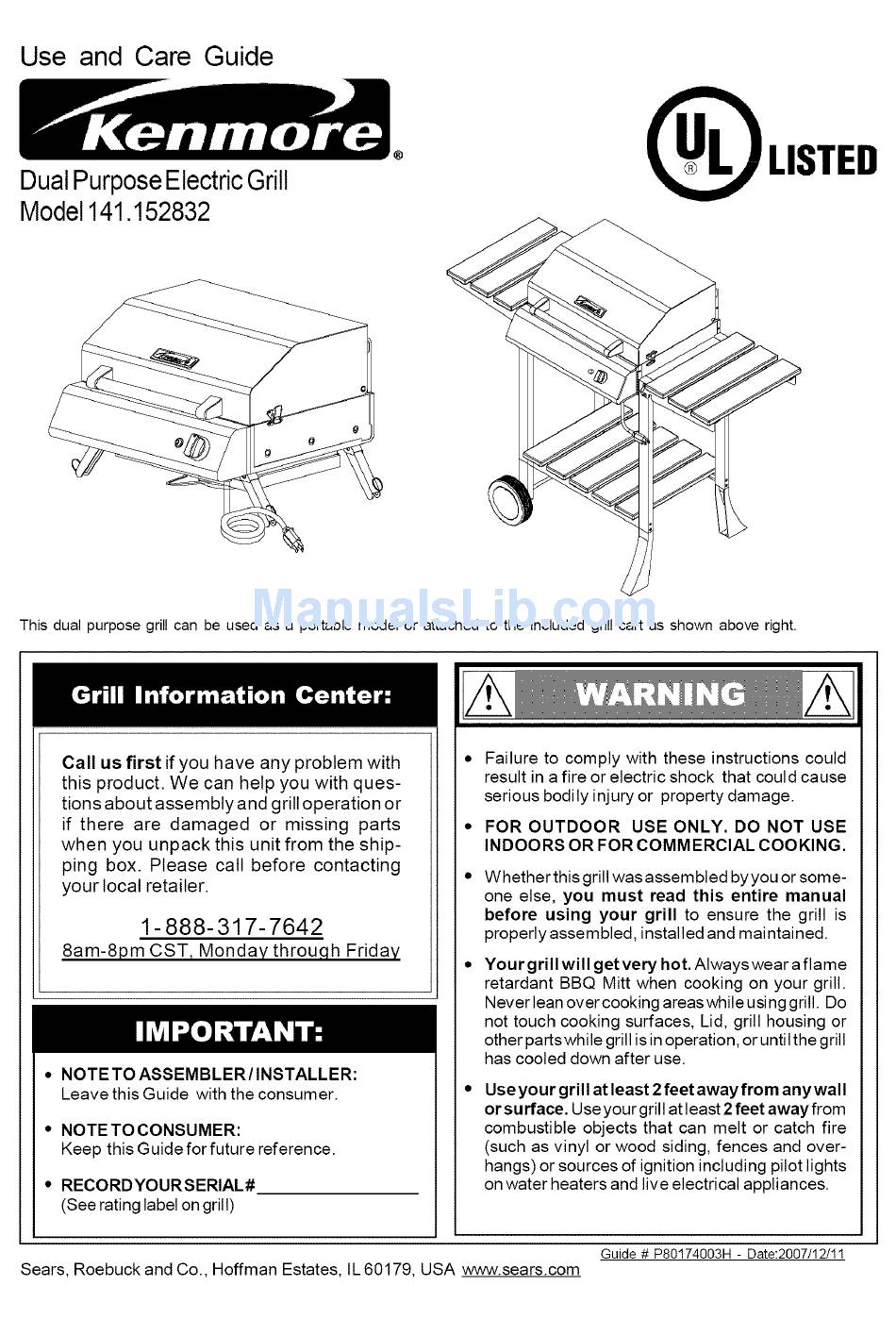

  • Page 1 Use and Care Guide LISTED Dual Purpose ElectricGrill Model 141.152832 This dual purpose grill can be used as a portable model or attached to the included grill cart as shown above right. Failure to comply with these instructions could Call us first if you have any problem...
