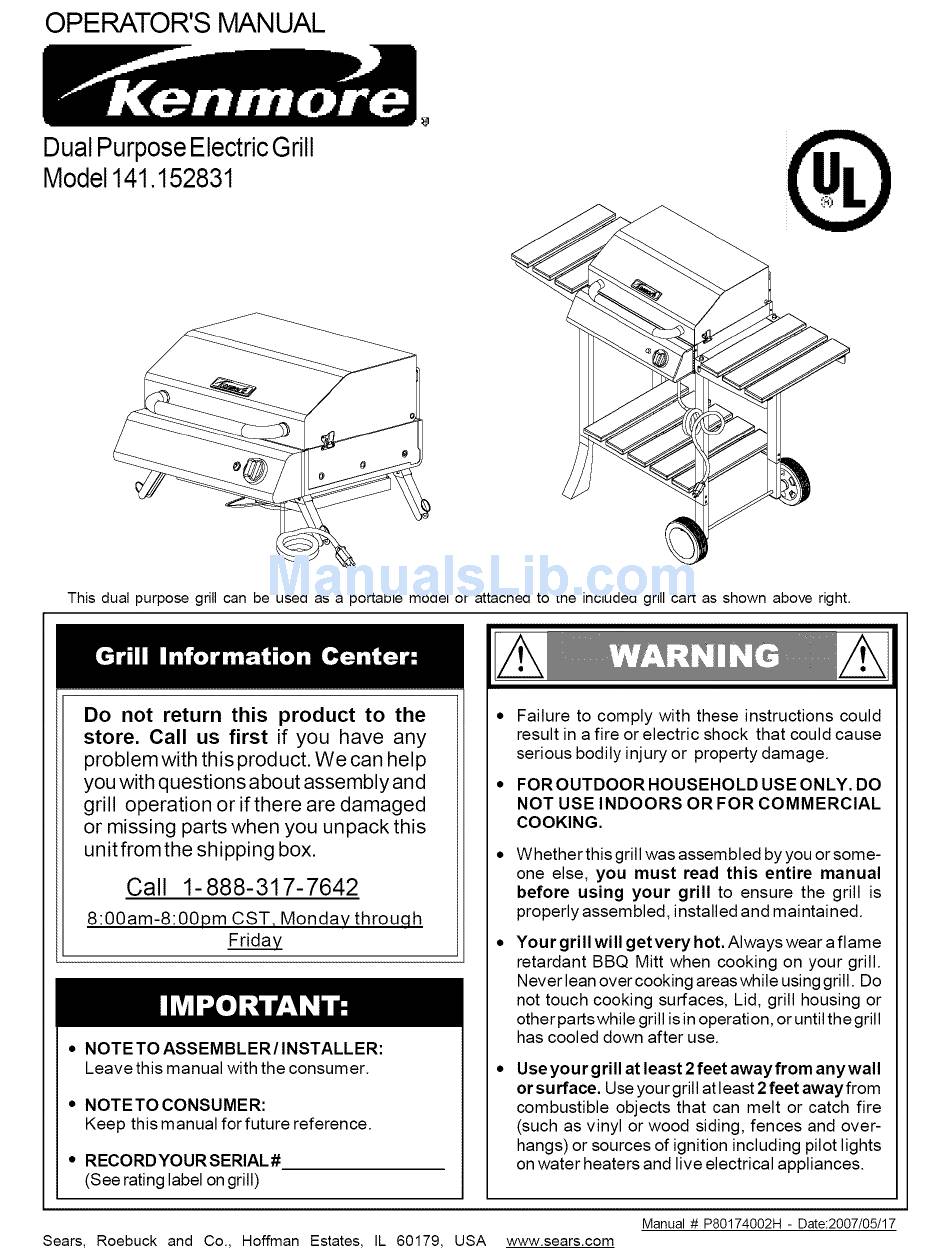

OPERATOR'S MANUAL
DualPurpose ElectricGrill
Model141.152831

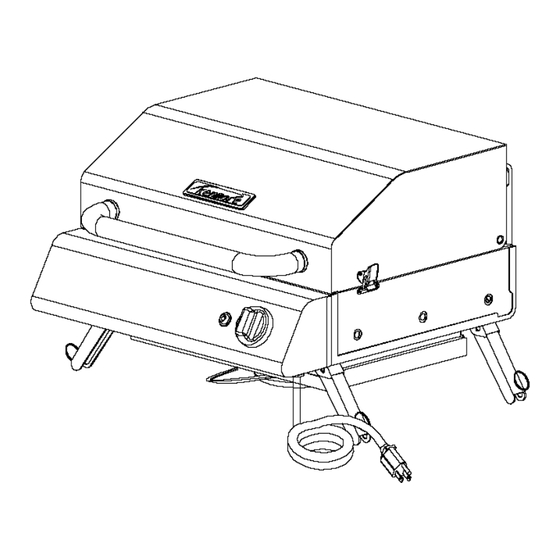

This dual purpose
grill can be used as a portable
model or attached
to the included
grill cart as shown
above
right.
Do not return
this
product
to the
store.
Call us first
if you have any
problem with this product. We can help
you with questions about assembly and
grill operation
or if there are damaged
or missing parts when you unpack this
unit from the shipping box.
Call 1-888-317-7642
8:00am-8:00pm
CST, Monday
throuqh
Friday
• NOTE TO ASSEMBLER/INSTALLER:
Leave this manual with the consumer.
• NOTETO CONSUMER:
Keep this manual for future reference.
• RECORDYOURSERIAL#
(See rating label on grill)
Failure to comply with these instructions
could
result in a fire or electric shock that could cause
serious bodily injury or property damage.
FOR OUTDOOR HOUSEHOLD USE ONLY. DO
NOT USE INDOORS OR FOR COMMERCIAL
COOKING.
Whether this grill was assembled by you or some-
one else, you must
read this entire
manual
before
using
your grill
to ensure the grill is
properly assembled, installed and maintained.
Your grill will get very hot. Always wear a flame
retardant BBQ Mitt when cooking on your grill.
Never lean over cooking areas while using grill. Do
not touch cooking surfaces, Lid, grill housing or
other partswhile grill is in operation, or until the grill
has cooled down after use.
Use yo u r g rill at least 2 feet away from any wall
or surface. Use your grill at least 2 feet away from
combustible objects that can melt or catch fire
(such as vinyl or wood siding, fences and over-
hangs) or sources of ignition including pilot lights
on water heaters and live electrical appliances.
Manual # P80174002H
- Date:2007/05/17
Sears,
Roebuck
and
Co.,
Hoffman
Estates,
IL 60179,
USA
www.sears.com
Advertisement
Related Manuals for Kenmore 141.152831
Summary of Contents for Kenmore 141.152831
- Page 1 OPERATOR'S MANUAL DualPurpose ElectricGrill Model141.152831 This dual purpose grill can be used as a portable model or attached to the included grill cart as shown above right. Do not return this product to the Failure to comply with these instructions could result in a fire or electric shock that could cause store.
- Page 2 • Always keep cord dry and off the ground. • Never put the cord or heating element in water or any liquid. One-Year Full Warranty on Kenmore Grill If this grill fails due to a defect in material or work- •...
-
Page 3: Pre-Assembly
3) The appliance is of the grounded type, the extension cord should be a grounding-type 3- When using this grill or any electrical appliances, wire cord. basic safety precautions should always be • Outdoor extension cords should be used with followed including the following: outdoor use products and are surface •... - Page 4 PART # PURPOSE OF PART PART DESCRIPTION P06001057A Hardware Pack For use in assembly of Model 152831 P05501106B Cotter Pin Attaches Wheel Axle and Wheels to Lower $411G07012 Washer 7/16" T=1/16" Right Cart Legs Attaches Cart Bottom Shelf Bracket $112G04321 Phillips Head Screw 1/4"x2"...
- Page 6 PART DESCRI PTION PART # PD01010015 Lid Trim Plate PD01020012 Lid Handle PD02010021 Handle Seat PD02010035 Name Plate P00410041C Lid Latch, Upper PD03010011 Lid Latch, Lower PD03020011 Bowl Outer PD04010015 Bowl Inner PD04020012 Burner, Electric PD05010010 Cooking Grid PD07010013 Thermostat Bracket PD08010025 Thermostat Protector PD08010042...
- Page 7 CAUTION While it is possible for one person to assemble this grill, obtain assistance from another person when handling some of the larger, heavier pieces. Install Wheel Thread Wheel Axle on the Lower Front Left Cart Legs. Insert 1 Wheel 1 Washer 7/16"...
- Page 8 Install Cart Bottom Shelf Attach the Cart Bottom Shelf between the Cart Legs (as shown). Note: Ensure single hole faces outward on 4 Cart Legs. Tighten securely using Phillips Head Screws 1/4"x2". Single hole faces outward Phillips Head Screw 1/4"x2" Qty.
- Page 9 Install Grill Head Control Knob Place Grill Head onto Bowl Bracket. Tighten securely using 6 Wing Bolts 1/4"x5/8" from under- side Left and Right Side Shelf. Attach Control Knob shown. Wing Bolt 1/4"x5/8" Qty. 6 Part # S233G04101 Control Knob for Electric Burner Qty.
- Page 10 Fold-Away Option Side Shelf Loosen Pattern Head Screws 1/4"x5/8" to the Left Right Right Side Shelf. Rest both hands either side of Right Side Shelf in one sweeping action lift to dislodge slot from fixed position. Pull Right Side Shelf away from grill head...
- Page 11 Install Cooking Grid Release the latch on either side of Lid Panel and open the Lid to place Cooking Grid in the Grill Bowl ledge. Upper Latch Lower Latch Direction: Cooking Grid Foot Facing down When you have finished assembling your grill be sure that all screws are tightened...
- Page 12 Turning Important Note About Cooking Temperatures Grill 1. Make sure the Control Knob is set to OFF. The suggested heat settings and cooking times 2. Disconnect other appliances from the circuit before shown on the cooking chart are approximate. using your grill.
- Page 13 Circuit breaker continues to trip: Caused bya power surge. Make sure the Control Knob is set to OFF before If the grill fails to produce any heat: plugging OR unplugging your grill. Be sure there is power to the grill. Turn the Circuit may be overloaded with appliances.
-
Page 14: Regular Cleaning
Kenmore grill as an outdoor kitchen. stay clean and operate with minimum effort. CAUTION: Be sure your grill is OFF and cool before cleaning. - Page 15 All cooking times are after grill has been properly pre-heated Grilling Steak Cut of Meat Temperature Approx. Cooking Times 500 - 570 T-bone steak Rare: 7-10 minutes Preheat the grill using the highest setting for 15-20 Sirloin steak Medium: 12-15 minutes minutes with the Lid closed.
