A. SELECT LOCATION
FOR YOUR WASHER -
Selecting the proper location for your
washer will improve its performance
and minimize concerns like washer
walk or noise,

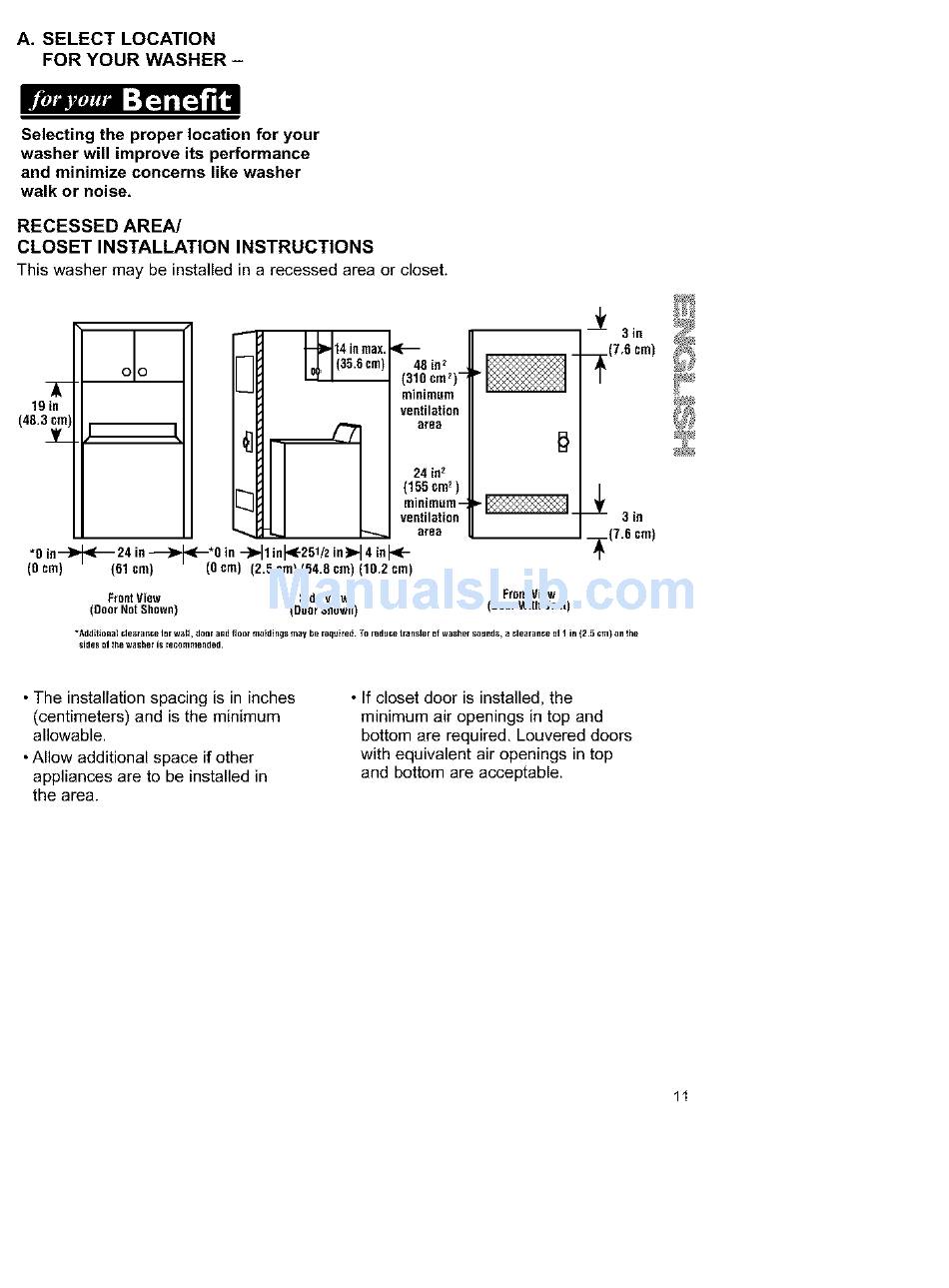

RECESSED AREA/
CLOSET INSTALLATION INSTRUCTIONS
This washer may be installed in a recessed area or closet.
3[-
1gin
(48.3cm}
N_
*O in--)"
(Ocm)
3
24in --)"_--* Oin -)'11 in_251/2 in_ 4in_-
(61 cm} (Ocm} (2,5cm)(64.8 cm) (10.2cm)
48in2
mlnlmufn
ventilation
area
24 in_
(155 cm2)
minimum-
ventilation
area
3in
_(76 cm)
3 in
__(7.6 cnl)
FrontView Side View Front View
(Door Not Shown) (Door Shown) (DoorWith Vent)
*Addinonal cle_zrance Ior wail, door and floor moldings may be required To reduce Iransler of washer sounds, a clearance ol 1 in (2 5 cm) on the
sides nl the washer is recommended¸
• The installation spacing is in inches
(centimeters) and is the minimum
allowable.
• Allow additional space if other
appliances are to be installed in
the area.
• If closet door is installed, the
minimum air openings in top and
bottom are required. Louvered doors
with equivalent air openings in top
and bottom are acceptable.
