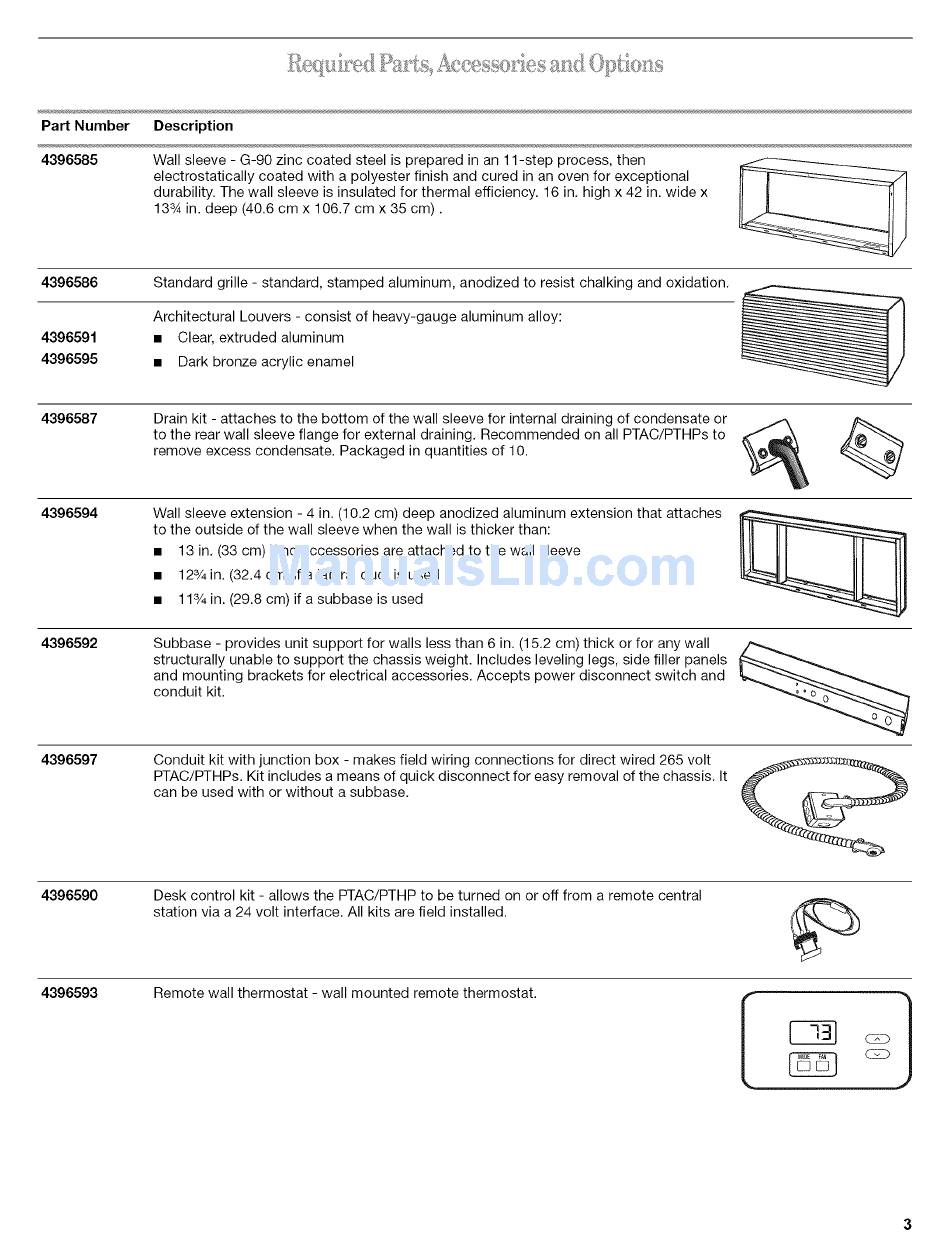

Part Number
Description
4396585
Wall sleeve - G-90 zinc coated steel is prepared in an 11-step process, then
electrostatically
coated with a polyester finish and cured in an oven for exceptional
durability. The wall sleeve is insulated for thermal efficiency. 16 in. high x 42 in. wide x
133A in. deep (40.6 cmx 106.7 cm x 35 cm).
4396586
Standard grille - standard, stamped aluminum, anodized to resist chalking and oxidation.
4396591
4396595
Architectural
Louvers - consist of heavy-gauge aluminum alloy:
•
Clear, extruded aluminum
•
Dark bronze acrylic enamel
4396587
4396594
Drain kit - attaches to the bottom of the wall sleeve for internal draining of condensate or
to the rear wall sleeve flange for external draining. Recommended
on all PTAC/PTHPs to
remove excess condensate.
Packaged in quantities of 10.
Wall sleeve extension - 4 in. (10.2 cm) deep anodized aluminum extension that attaches
to the outside of the wall sleeve when the wall is thicker than:
•
13 in. (33 cm) if no accessories are attached to the wall sleeve
•
123/4in. (32.4 cm) if a lateral duct is used
•
113/4in. (29.8 cm) if a subbase is used
4396592
4396597
Subbase - provides unit support for walls less than 6 in. (15.2 cm) thick or for any wall
structurally unable to support the chassis weight. Includes leveling legs, side filler panels
and mounting brackets for electrical accessories.
Accepts power disconnect
switch and
conduit kit.
Conduit kit with junction box - makes field wiring connections for direct wired 265 volt
__
PTAC/PTHPs. Kit includes a means of quick disconnect for easy removal of the chassis. It
can be used with or without a subbase.
4396590
4396593
Desk control kit - allows the PTAC/PTHP to be turned on or off from a remote central
station via a 24 volt interface. All kits are field installed.
Remote wall thermostat - wall mounted remote thermostat.
