Electrical
Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical
shock.
1.
2.
Disconnect
power.

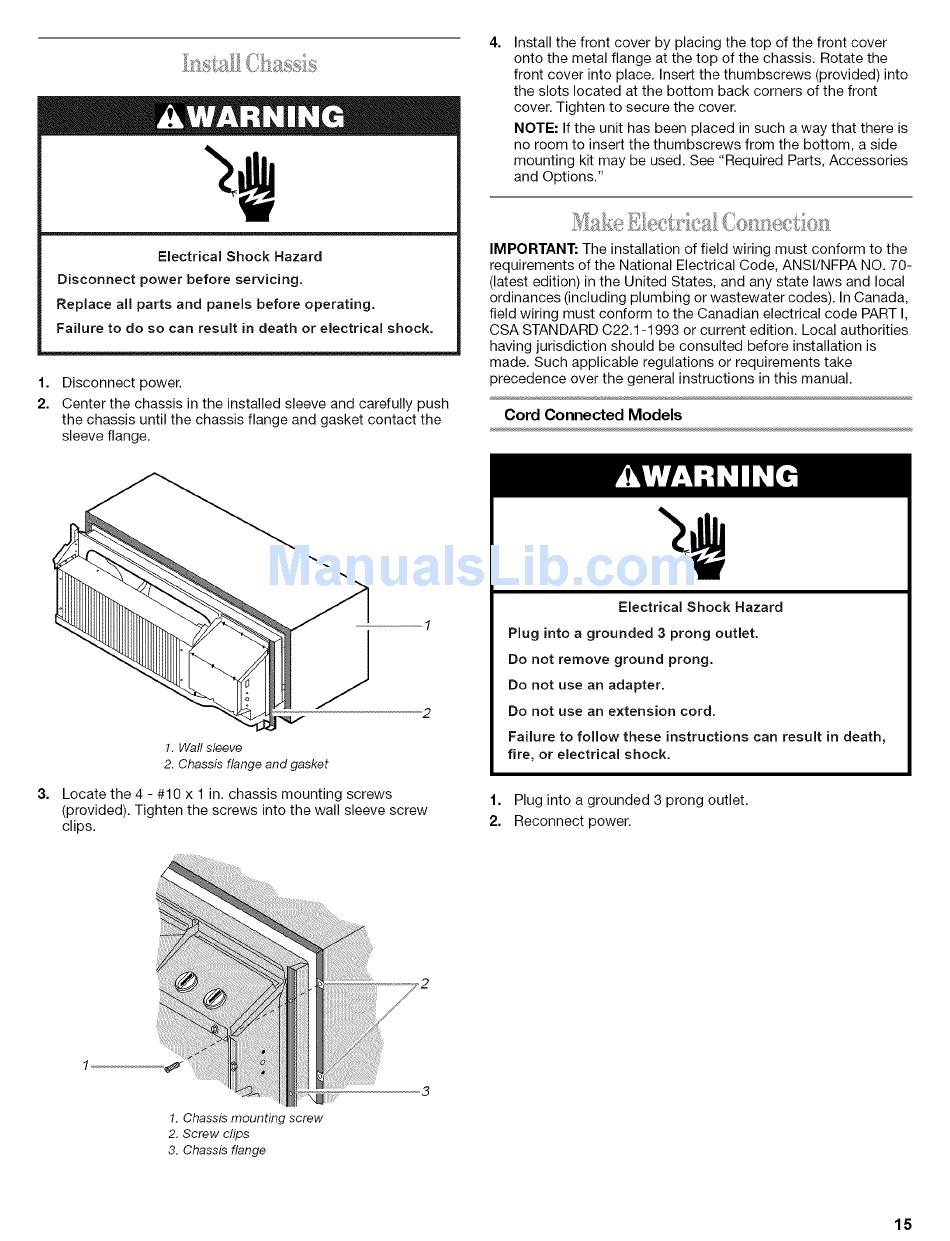

Center the chassis in the installed sleeve and carefully push
the chassis until the chassis flange and gasket contact the
sleeve flange.
4.
Install the front cover by placing the top of the front cover
onto the metal flange at the top of the chassis. Rotate the
front cover into place. Insert the thumbscrews
(provided) into
the slots located at the bottom back corners of the front
cover. Tighten to secure the cover.
NOTE: If the unit has been placed in such a way that there is
no room to insert the thumbscrews
from the bottom, a side
mounting kit may be used. See "Required Parts, Accessories
and Options."
IMPORTANT: The installation of field wiring must conform to the
requirements of the National Electrical Code, ANSI/NFPA NO. 70-
(latest edition) in the United States, and any state laws and local
ordinances (including plumbing or wastewater codes). In Canada,
field wiring must conform to the Canadian electrical code PART I,
CSA STANDARD C22.1-1993 or current edition. Local authorities
having jurisdiction
should be consulted before installation is
made. Such applicable regulations or requirements take
precedence over the general instructions
in this manual.
Cord Connected
Models
3.
!. Wall sleeve
2. Chassis flange and gasket
Locate the 4 - #10 x 1 in. chassis mounting screws
(provided). Tighten the screws into the wall sleeve screw
clips.
Electrical
Shock
Hazard
Plug into a grounded
3 prong
outlet.
Do not remove
ground
prong.
Do not use an adapter.
Do not use an extension
cord.
Failure
to follow
these
instructions
can result
in death,
fire, or electrical
shock.
1. Plug into a grounded 3 prong outlet.
2. Reconnect power.
1. Chassis
mounting
screw
2. Screw
clips
3. Chassis
flange
15
