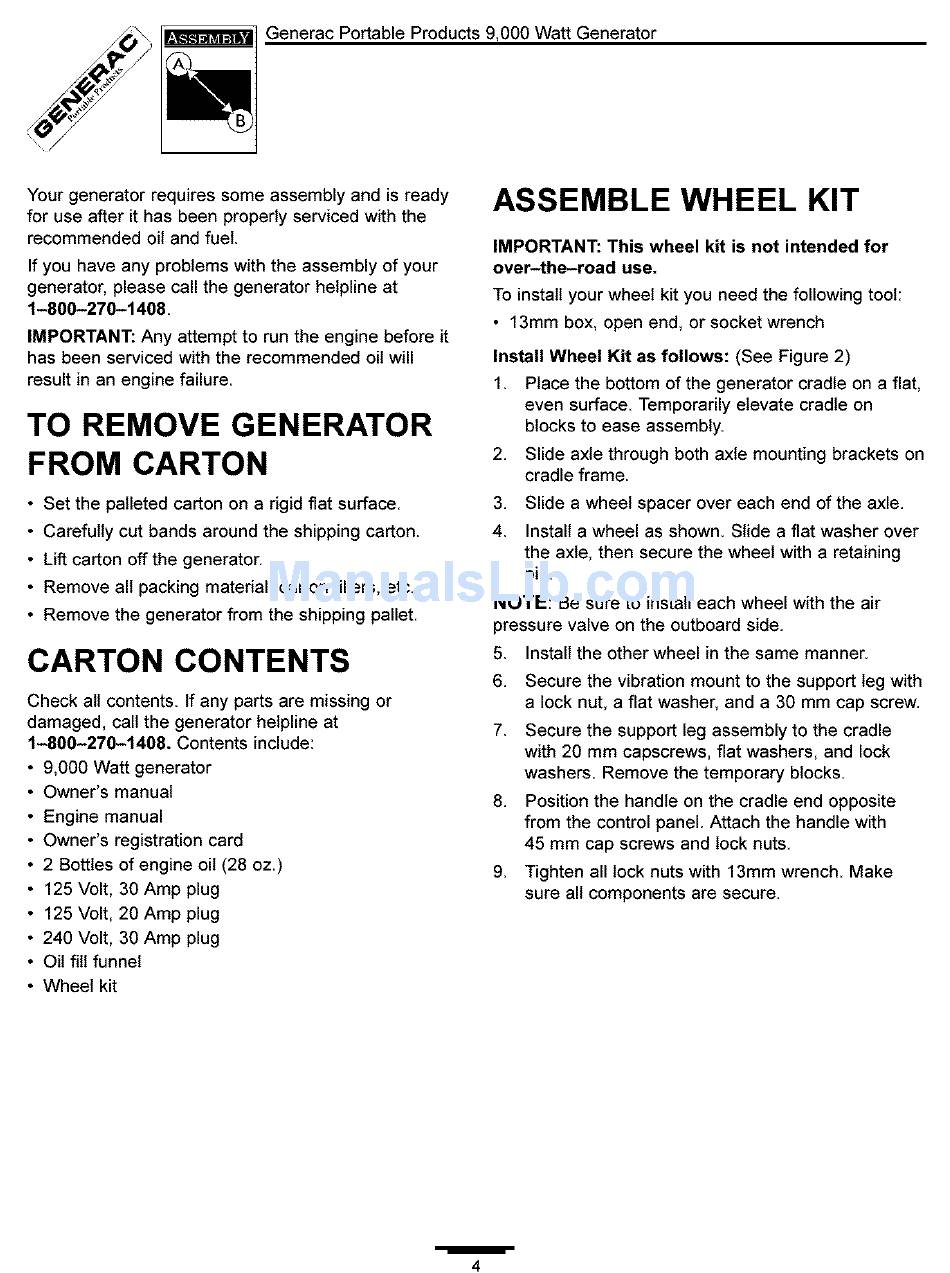

Generac Portable Products 9 ,000WattGenerator
Yourgenerator requires someassembly a ndis ready
for useafterit hasbeenproperly s erviced withthe
recommended oilandfuel.
If youhaveanyproblems w iththeassembly ofyour
generator, please callthegenerator helpline at
1-800-270-1408.
IMPORTANT: Any attempt to run the engine before it
has been serviced with the recommended
oil will
result in an engine failure
TO REMOVE GENERATOR
FROM CARTON
• Set the palleted carton on a rigid fiat surface
• Carefully cut bands around the shipping carton
• Lift carton off the generator.
• Remove all packing material, carton fillers, etc.
• Remove the generator from the shipping pallet.
CARTON CONTENTS
Check all contents. If any parts are missing or
damaged, call the generator helpline at
1-800-270-1408.
Contents include:
9,000 Watt generator
Owner's manual
Engine manual
Owner's registration card
2 Bottles of engine oil (28 oz.)
125 Volt, 30 Amp plug
125 Volt, 20 Amp plug
240 Volt, 30 Amp plug
Oil fill funnel
Wheel kit
ASSEMBLE WHEEL KIT
IMPORTANT: This wheel kit is not intended for
over-the-road
use.
To install your wheel kit you need the following toot
• 13mm box, open end, or socket wrench
Install Wheel Kit as follows:
(See Figure 2)
1.
Place the bottom of the generator cradle on a flat,
even surface Temporarily elevate cradle on
blocks to ease assembly
2.
Slide axle through both axle mounting brackets on
cradle frame
3.
Slide a wheel spacer over each end of the axle.
4.
Install a wheel as shown. Slide a fiat washer over
the axle, then secure the wheel with a retaining
pin
NOTE
Be sure to install each wheel with the air
pressure valve on the outboard side.
5.
Install the other wheel in the same manner
6.
Secure the vibration mount to the support leg with
a lock nut, a flat washer, and a 30 mm cap screw.
7.
Secure the support leg assembly to the cradle
with 20 mm capscrews, flat washers, and lock
washers Remove the temporary blocks
8.
Position the handle on the cradle end opposite
from the control panel Attach the handle with
45 mm cap screws and lock nuts.
9.
Tighten all lock nuts with 13mm wrench Make
sure all components are secure.
/
