Generac P ortable Products 9 ,000 WattGenerator
I
l/!
m

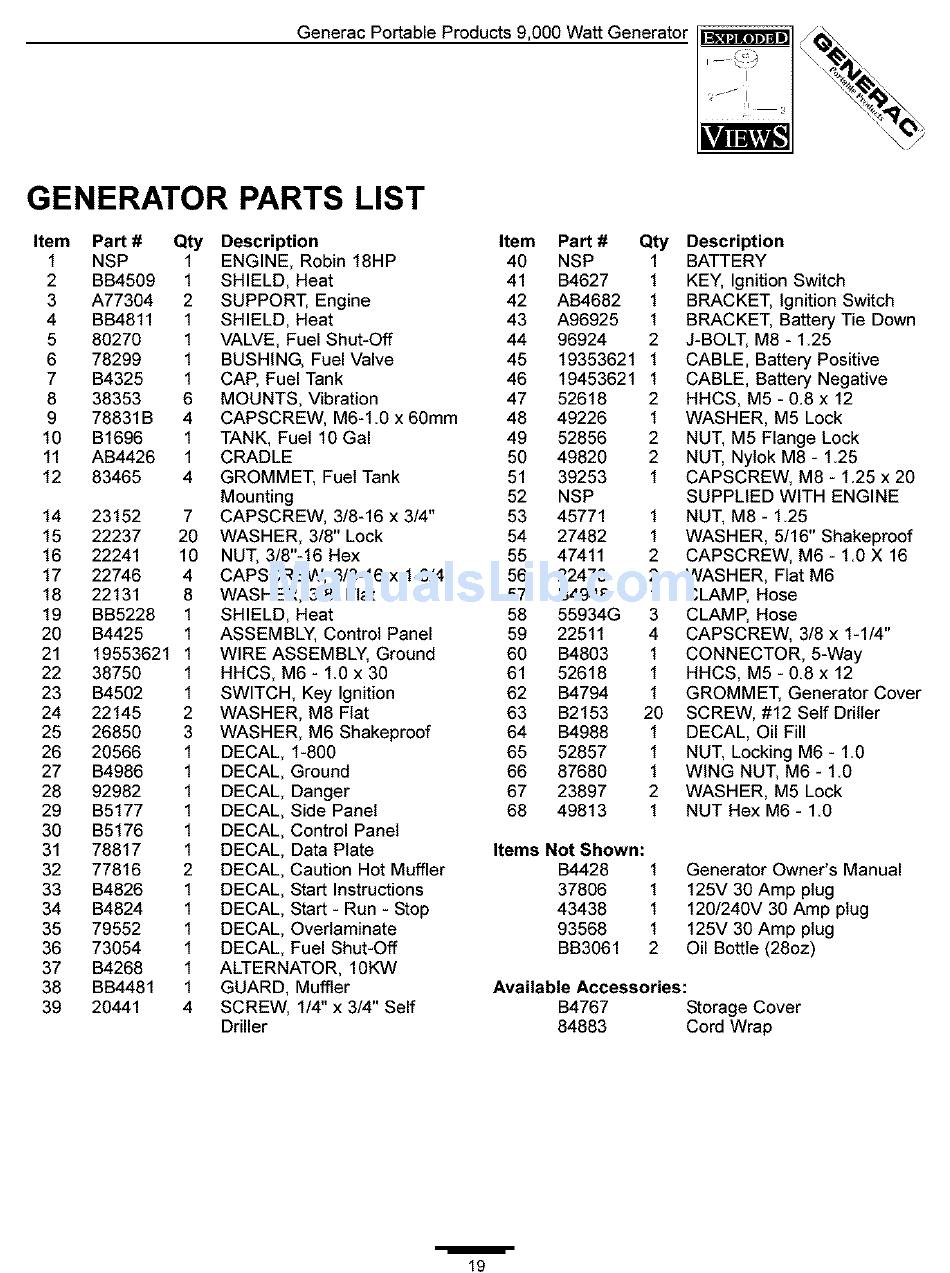

GENERATOR PARTS LIST
Item
Part #
Qty
1
NSP
1
2
BB4509
1
3
A77304
2
4
BB4811
1
5
80270
1
6
78299
1
7
B4325
1
8
38353
6
9
78831B
4
10
B1696
1
11
AB4426
1
12
83465
4
14
23152
7
15
22237
20
16
22241
10
17
22746
4
18
22131
8
19
BB5228
1
20
B4425
1
21
19553621
1
22
38750
1
23
B4502
1
24
22145
2
25
26850
3
26
20566
1
27
B4986
1
28
92982
1
29
B5177
1
30
B5176
1
31
78817
1
32
77816
2
33
B4826
1
34
B4824
1
35
79552
1
36
73054
1
37
B4268
1
38
BB4481
1
39
20441
4
Description
ENGINE, Robin 18HP
SHIELD, Heat
SUPPORT, Engine
SHIELD, Heat
VALVE, Fuel Shut-Off
BUSHING, Fuel Valve
CAP, Fuel Tank
MOUNTS, Vibration
CAPSCREW, M6-1.0 x 60mm
TANK, Fuel 10 Gal
CRADLE
GROMMET, Fuel Tank
Mounting
CAPSCREW, 3/8-16 x 3/4"
WASHER, 3/8" Lock
NUT, 3/8"-16 Hex
CAPSCREW, 3/8-16 x 1-3/4"
WASHER, 3/8" Flat
SHIELD, Heat
ASSEMBLY, Control Panel
WIRE ASSEMBLY, Ground
HHCS, M6 - 1.0 x 30
SWITCH, Key Ignition
WASHER, M8 Flat
WASHER, M6 Shakeproof
DECAL
1-800
DECAL Ground
DECAL
Danger
DECAL Side Panel
DECAL Control Panel
DECAL
Data Plate
DECAL Caution Hot Muffler
DECAL Start Instructions
DECAL Start - Run - Stop
DECAL Ovedaminate
DECAL Fuel Shut-Off
ALTERNATOR,
10KW
GUARD, Muffler
SCREW, 1/4" x 3/4" Self
Driller
Item
Part #
Qty
Description
40
NSP
1
BATTERY
41
B4627
1
KEY, Ignition Switch
42
AB4682
1
BRACKET, Ignition Switch
43
A96925
1
BRACKET, Battery Tie Down
44
96924
2
J-BOLT, M8 - 1.25
45
19353621
1
CABLE, Battery Positive
46
19453621
1
CABLE, Battery Negative
47
52618
2
HHCS, M5 - 0.8 x 12
48
49226
1
WASHER, M5 Lock
49
52856
2
NUT, M5 Flange Lock
50
49820
2
NUT, Nylok M8 - 1.25
51
39253
1
CAPSCREW,
M8 - 1.25 x 20
52
NSP
SUPPLIED WITH ENGINE
53
45771
1
NUT, M8 - 1.25
54
27482
1
WASHER, 5/16" Shakeproof
55
47411
2
CAPSCREW,
M6 - 1.0 X 16
56
22473
2
WASHER, Flat M6
57
B4948
1
CLAMP, Hose
58
55934G
3
CLAMP, Hose
59
22511
4
CAPSCREW,
3/8 x 1-1/4"
60
B4803
1
CONNECTOR,
5-Way
61
52618
1
HHCS, M5 - 0.8 x 12
62
B4794
1
GROMMET, Generator Cover
63
B2153
20
SCREW, #12 Self Driller
64
B4988
1
DECAL, Oil Fill
65
52857
1
NUT, Locking M6 - 1.0
66
87680
1
WING NUT, M6 - 1.0
67
23897
2
WASHER, M5 Lock
68
49813
1
NUT Hex M6 - 1.0
Items Not Shown:
B4428
1
Generator Owner's Manual
37806
1
125V 30 Amp plug
43438
1
120/240V 30 Amp plug
93568
1
125V 30 Amp plug
BB3061
2
Oil Bottle (28oz)
Available Accessories:
B4767
Storage Cover
84883
Cord Wrap
/
