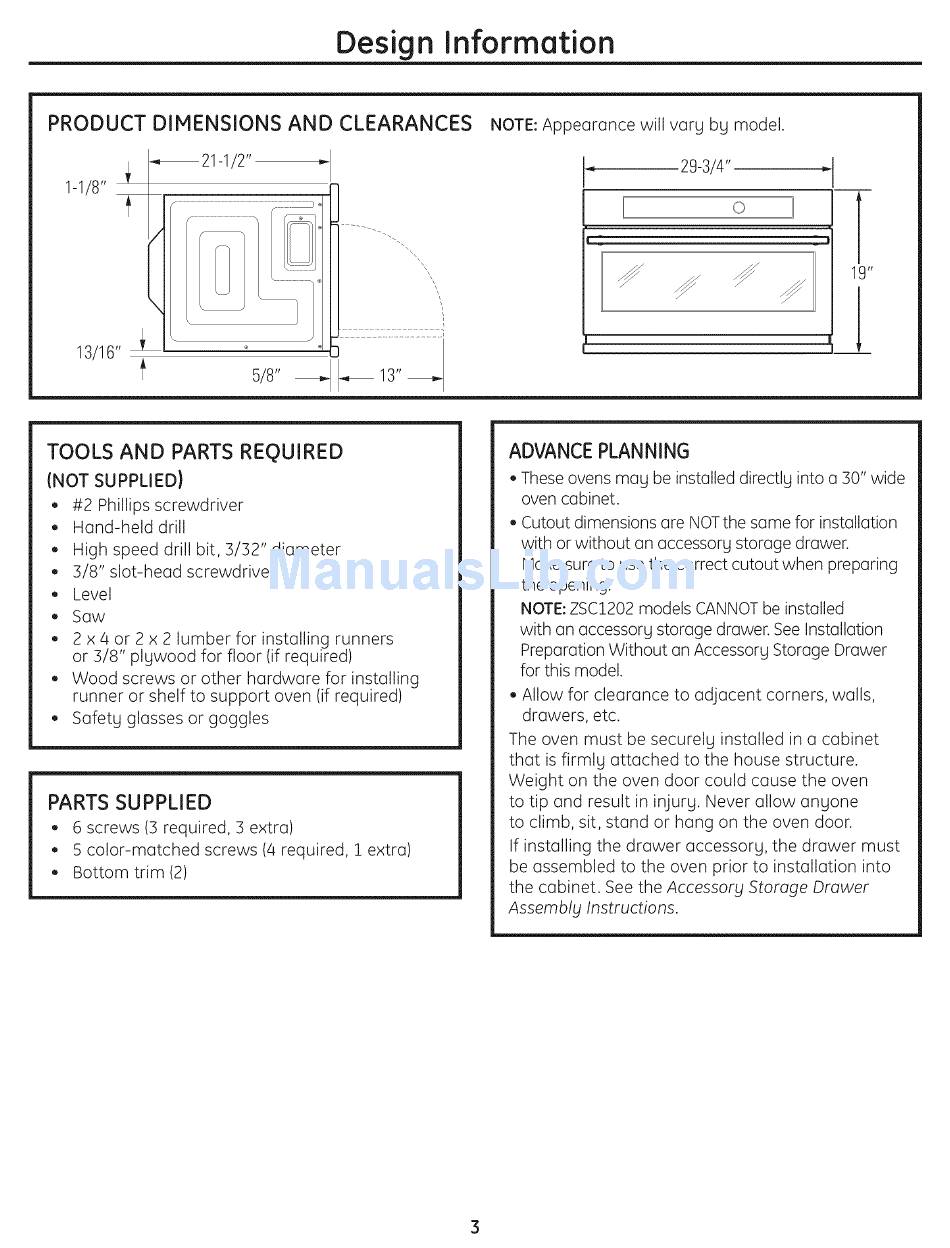

Design Information
PRODUCT DIMENSIONS AND CLEARANCES
1-1/8"
\
13/16" _
_21-1/2"
/
5/8"
NOTE: Appearance will vary by model.
29-3/4"
LJ
__ m
1
19"
TOOLS AND PARTS REQUIRED
(NOT SUPPLIED}
• #2 Phillips screwdriver
• Hand-held drill
• High speed drill bit, 3/32" diameter
• 3/8" slot-head screwdriver
• Level
I Saw
• 2 x 4 or 2 x 2 lumber for installing runners
or 3/8" plgwood for floor (if required)
Wood screws or other hardware for installing
runner or shelf to support oven (if required)
Safetg glasses or goggles
PARTS SUPPLIED
• 6 screws (3 required, 3 extra)
• 5 color-matched screws (4 required, 1 extra)
• Bottom trim (2)
ADVANCEPLANNING
• These ovens mag be installed directlg into a 30" wide
oven cabinet.
• Cutout dimensions are NOTthe same for installation
with or without an accessorg storage drawer.
Make sure to use the correct cutout when preparing
the opening.
NOTE: ZSC1202 models CANNOT be installed
with an accessorg storage drawer. See Installation
Preparation Without an Accessorg Storage Drawer
for this model.
Allow for clearance to adjacent corners, walls,
drawers, etc.
The oven must be securelg installed in a cabinet
that is firmlg attached to the house structure.
Weight on the oven door could cause the oven
to tip and result in injurg. Never allow angone
to climb, sit, stand or hang on the oven door.
If installing the drawer accessorg, the drawer must
be assembled to the oven prior to installation into
the cabinet. See the Accessorg Storage Drawer
Assembl£ Instructions.
