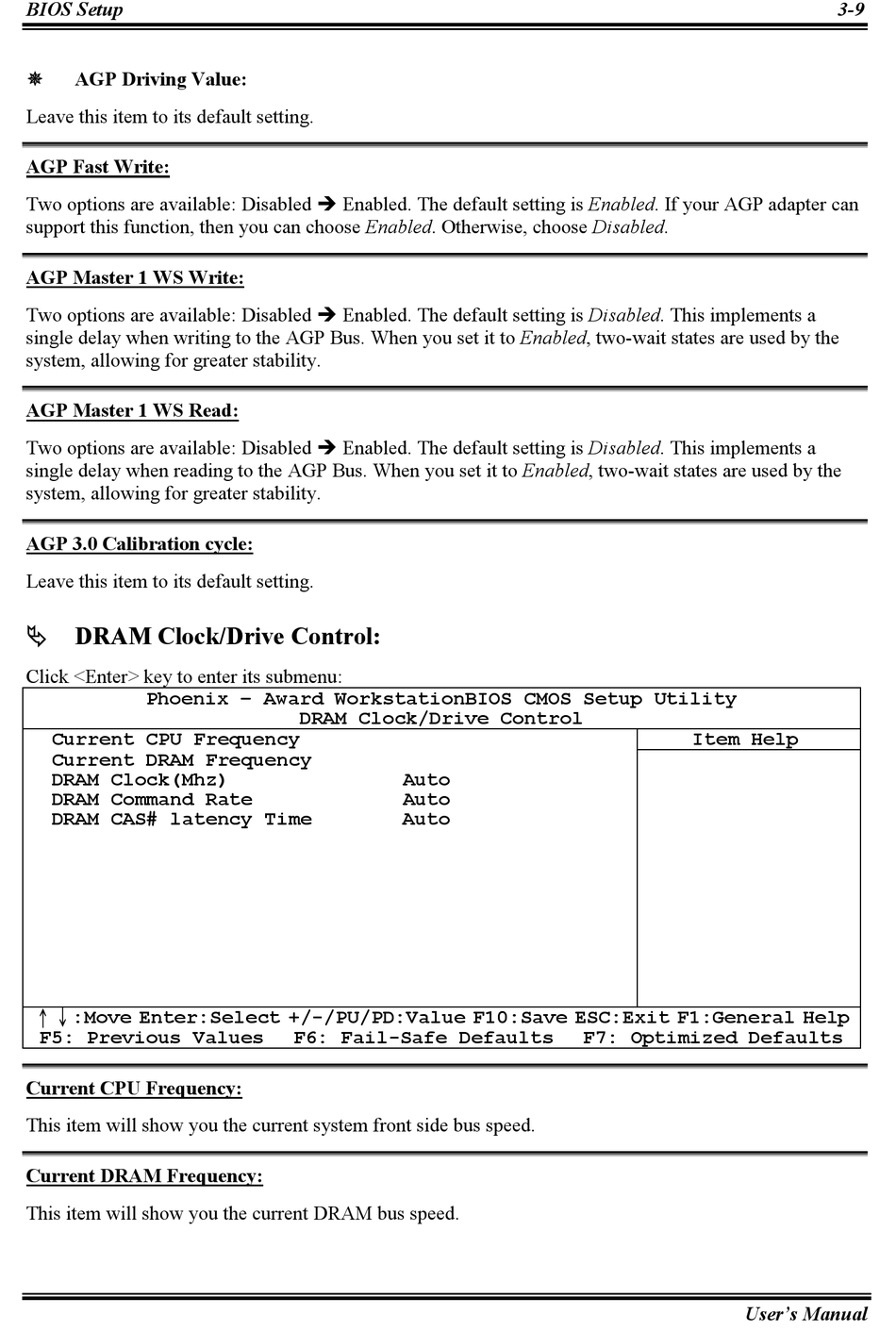

Abit AMD Athlon 64 System Board Socket 754 User Manual page 31

BIOS Setup
! AGP Driving Value:
Leave this item to its default setting.
AGP Fast Write:
Two options are available: Disabled $ Enabled. The default setting is Enabled. If your AGP adapter can
support this function, then you can choose Enabled. Otherwise, choose Disabled.
AGP Master 1 WS Write:
Two options are available: Disabled $ Enabled. The default setting is Disabled. This implements a
single delay when writing to the AGP Bus. When you set it to Enabled, two-wait states are used by the
system, allowing for greater stability.
AGP Master 1 WS Read:
Two options are available: Disabled $ Enabled. The default setting is Disabled. This implements a
single delay when reading to the AGP Bus. When you set it to Enabled, two-wait states are used by the
system, allowing for greater stability.
AGP 3.0 Calibration cycle:
Leave this item to its default setting.
# DRAM Clock/Drive Control:
Click <Enter> key to enter its submenu:
Phoenix – Award WorkstationBIOS CMOS Setup Utility
Current CPU Frequency
Current DRAM Frequency
DRAM Clock(Mhz)
DRAM Command Rate
DRAM CAS# latency Time
↑↓:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values
Current CPU Frequency:
This item will show you the current system front side bus speed.
Current DRAM Frequency:
This item will show you the current DRAM bus speed.
DRAM Cloc /Drive Control k
Auto
Auto
Auto
F6: Fail-Safe Defaults
Item Help
F7: Optimized Defaults
User's Manual
3-9
