Installation
Microwave Oven

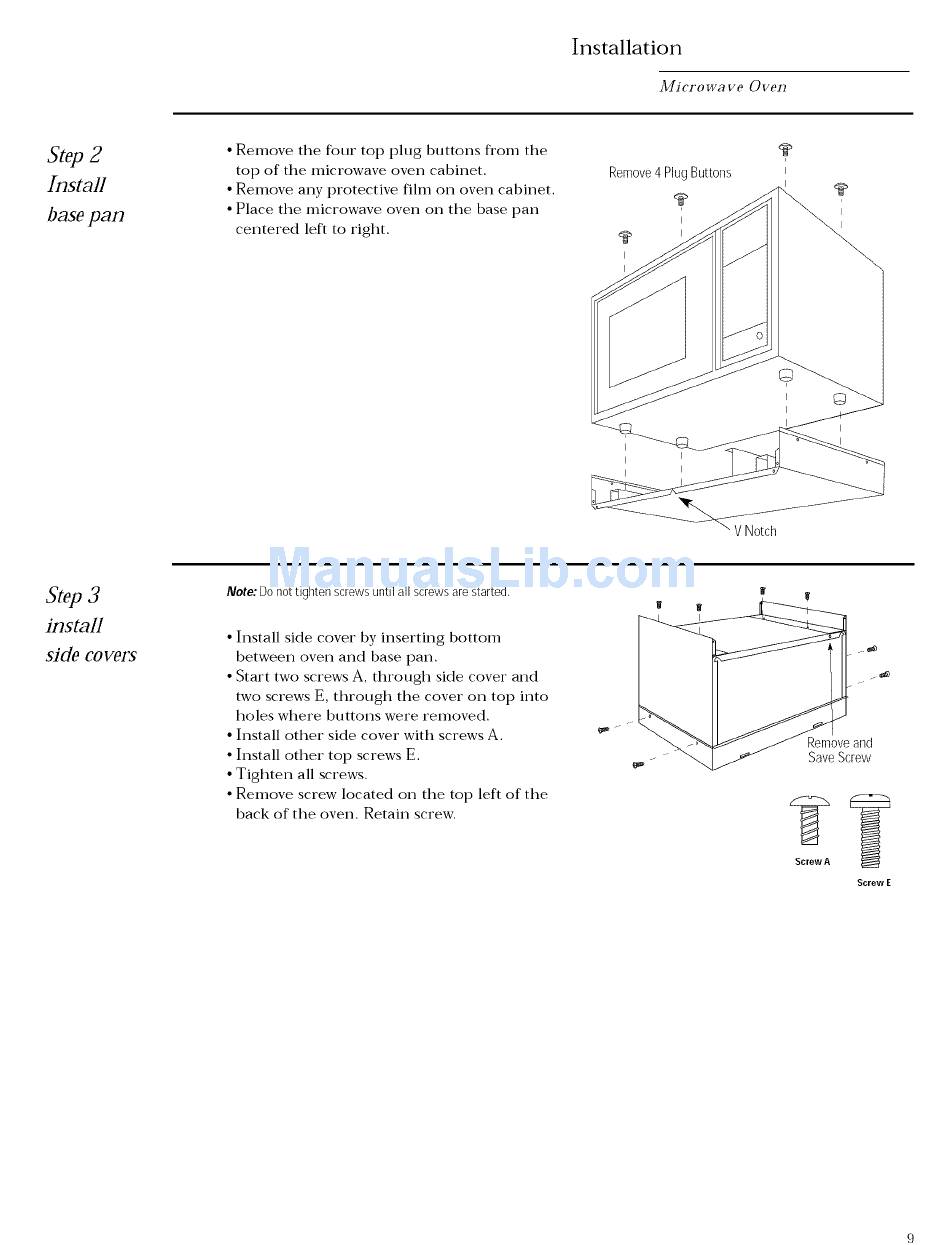

Step 2
Install
base pan
• Remove tile four top plug buttons fl'om the
top of the microwave oven cabinet.
• Remove any protective fihn on oven cabinet.
• Place the microwave oven on the base pan
centered left to right.
Remove 4 PlugButtons
I
I
I
i
i
\
\
Step 3
install
side covers
Note: Do not tighten screws until all screws are started,
• Install side cover by inserting bottom
between oven and base pan.
• Start two screws A, through side cover and
two screws E, through the cover on top into
holes where buttons were removed.
• Install other side cover with screws A.
• Install other top screws E.
• Tighten all screws.
• Remove screw located on the top left of the
back of the oven. Retain screw.
Remove and
SaveScrew
Screw A
Screw E
