GE Monogram ZEM200 Series Installation Instructions Manual page 10

Installation
Microwave Oven

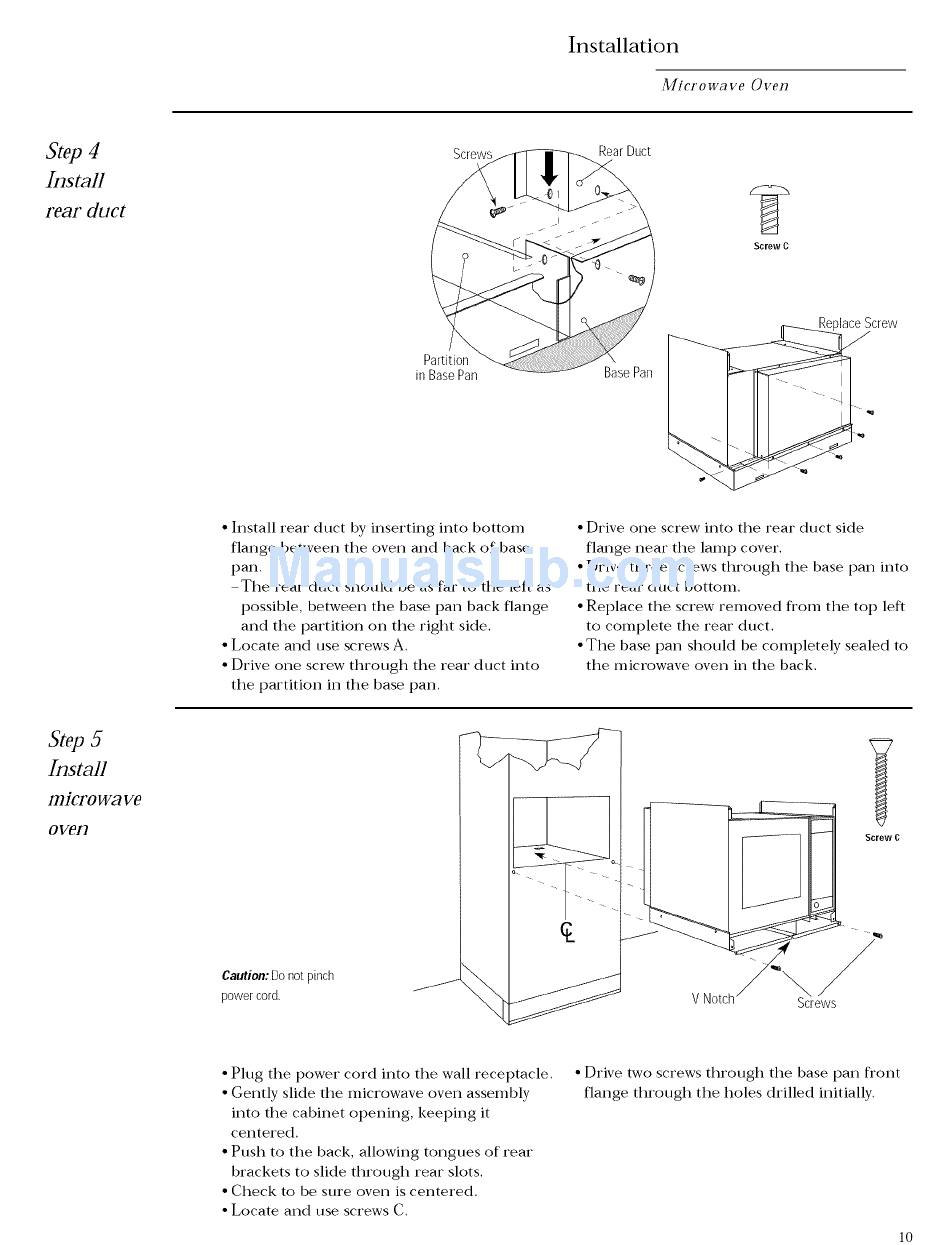

Step 4
Install
rear duct
Screws RearDuct
Screw C
Partition
in BasePan
BasePan
-%ceScrew
• Install rear duct by inserting into bottom
flange between the oven and back of base
pan.
The rear duct should be as far to the left as
possible, between the base pan back flange
and the partition on the right side.
• Locate and use screws A.
• Drive one screw through the rear duct into
the partition in the base pan.
• Drive one screw into the rear duct side
flange neat" the lamp cover.
• Drive three screws through the base pan into
the rear duct bottom.
• Replace the screw removed fl'om the top left
to complete the rear duct.
• The base pan should be completely sealed to
the microwave oven in the back.
Step 5
Install
In]€FOWa ve
0 veil
Screw C
Caution: Do not pinch
power cord,
/
Screws
• Plug the power cord into the wall receptacle.
• Gently slide the microwave oven assembly
into the cabinet opening, keeping it
centered.
• Push to the back, allowing tongues of rear
brackets to slide through rear slots.
• Check to be sure oven is centered.
• Locate and use screws C.
• Drive two screws through the base pan fl'ont
flange through the holes drilled initially.
10
