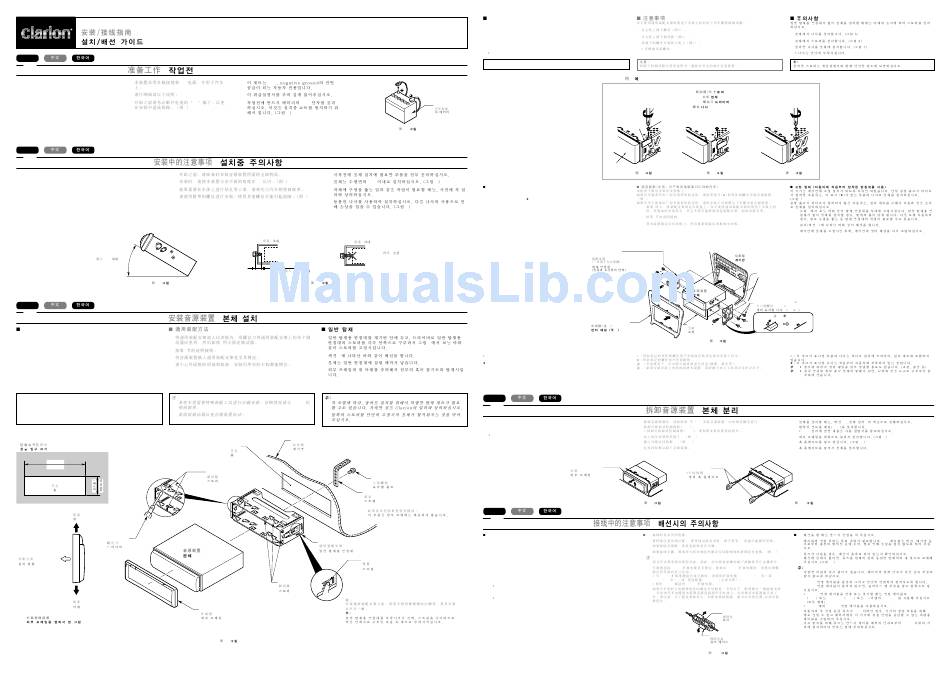

2006/12
Installation/Wire Connection Guide
English
1.
BEFORE STARTING /
/
1. This set is exclusively for use in cars with a
1.
12V
negative ground, 12 V power supply.
2. Read these instructions carefully.
2.
3. Be sure to disconnect the battery "-" terminal
-
3.
before starting. This is to prevent short circuits
1
during installation. (Figure 1)
English
2.
CAUTIONS ON INSTALLATION /
1. Prepare all articles necessary for installing the source unit before
1.
starting.
2.
2. Install the unit within 30° of the horizontal plane. (Figure 2)
3.
3. If you have to do any work on the car body, such as drilling holes,
consult your car dealer beforehand.
4.
4. Use the enclosed screws for installation. Using other screws can
cause damage. (Figure 3)
Max. 30˚ /
30˚
/
30˚
Figure 2 /
2
/
2
English
3.
INSTALLING THE SOURCE UNIT /
Universal Mount
1. Place the universal mounting bracket into the instrument panel, use a
1.
screwdriver to bend each stopper of the universal mounting bracket
inward, then secure the stopper as shown in Figure 4.
2.
6
2. Wire as shown in Section 6.
3.
3. Insert the source unit into the universal mounting bracket until it
locks.
4.
4. Take care of the top and bottom of the outer escutcheon and mount it
so that all the hooks are locked.
Notes:
1) Some car models require special mounting kits for proper
1)
installation. Consult your Clarion dealer for details.
2) Fasten the front stopper securely to prevent the source unit from
2)
coming loose.
• Console opening dimensions
7-3/16"
(182 mm)
Hole
Top
Screwdriver
Source Unit
Installation direction
Bottom
Outer escutcheon side view
284-1003-00
1.
12V
2.
3.
"-"
1
/
1.
30°
2
2.
30°
3.
3
4.
Chassis /
/
Chassis /
/
Damage /
Max. 8 mm /
8 mm
/
8 mm
Figure 3 /
3
/
3
/
1.
4
2.
6
3.
4.
Clarion
1)
2)
Instrument panel
Hole
Stoppers
Hexagonal bolt
Strap
This part is not provided in some models.
*
*
*
Universal mounting bracket
Spring
Stoppers
Note:
Before attaching the universal mounting bracket, slightly bend
the spring toward the inside with your fingers and attach it to the
side of car.
Outer escutcheon
Figure 4 /
4
/
4
PRECAUTION
Remove the stopper following the procedures below when this source unit is installed
without the universal mounting bracket.
1. Remove the screw from the source unit (Figure 5).
2. Remove the stopper from the source unit (Figure 6).
3. Install the remove screw to the source unit (Figure 7).
Securely attach the screw.
Note:
Store the removed stopper in a safe place together with the Instruction Manual.
Car battery
Figure 1 /
1
/
1
2
Fixed Mount (Using the bracket originally equipped in vehicle)
This unit is designed for fixed installation in the dashboard.
If the vehicle is equipped with a factory-installed radio, install the source unit with the
parts and screws marked ( ). (Figure 8)
If the vehicle is not equipped with a factory-installed radio, obtain an installation kit to
3
install the source unit in the following procedure.
1. Secure the mounting brackets to the chassis as shown in Figure 8. When the
source unit is installed without the universal mounting bracket, holes exist;
modification, such as drilling new holes, of the mounting brackets may be required
for other models.
2. Wire as shown in Installation (Section 6).
3. Secure the unit in the dashboard, and then reassemble the dashboard and the
center panel.
/
4
: The parts and SCREW with this mark are used to install radio or included in the
installation kit.
: The screws with this mark are originally attached to the vehicle.
Note 1: In some cases, the center panel may require some modification (trimming, filling,
etc.).
Note 2: If a hook on the installation bracket interferes with the unit, bend and flatten it
with a nipper or a similar tool.
English
4.
REMOVAL OF THE SOURCE UNIT /
1. When removing the source unit, disassemble it in the reverse of the order in
Section "3. INSTALLING THE SOURCE UNIT".
2. Remove the Detachable Control Panel (DCP).
For instructions on removing the DCP, refer to the owner's manual.
3. Press the outer escutcheon upward and remove it. (Figure 9)
4. Insert and lock the hook plates. (Figure 10)
5. Pull the hook plates to remove the source unit.
English
5.
CAUTIONS ON WIRING /
1. Be sure to turn the power off when wiring.
2. Be particularly careful where you route the wires. Keep them well away from the
engine, exhaust pipe, etc. Heat may damage the wires.
3. If the fuse should blow, check that the wiring is correct.
If it is, replace the fuse with a new one with the same amperage rating as the
original one. (Figure 11)
Note:
There are various types of fuse holder. Do not let the battery side touch other
metal parts.
4. Connect the CeNET extension cable fully and securely until it locks. When the
CeNET extension cable is pulled, hold the slide cap part and pull it towards you.
When the CeNET extension cable is extended or branches, use extension
cable CCA-520 (2.5m) or CCA-521 (0.6m), or Y-adapter CCA-519 (each of
them is sold separately).
Use the CeNET extension cable made by Clarion.
5. When the main power supply fuse in the car is 15 A or less, purchase an
automotive cable that can withstand 15 A and supply this unit with power
directly from the battery to ensure that the unit will operate normally.
Note that a fuse must be installed at a distance no longer than 30 cm from the
cable battery terminal to prevent accidents.
1.
2.
3.
Example 1/
1/
1
1 Stopper/
/
2 Source Unit/
/
3 Screwdriver/
/
3
4 Screw/
/
4
1
2
Figure 5 /
5
/
5
Figure 6 /
6
/
6
8
1.
8
2.
6
3.
Mounting bracket
*
Dashboard
(1 pair for the left and right sides)
*
*
Source Unit
Center Panel (Note 1)
Pocket
1
1
Figure 8 /
8
/
8
1
2
/
1.
3
3
2.
DCP
DCP
3.
9
4.
10
5.
Outer escutcheon
2–Hook plate
2
Figure 9 /
9
/
9
/
1.
2.
3.
4.
CeNET
CeNET
CeNET
CCA-520 2.5
521 0.6
Y
CCA-519
Clarion
CeNET
5.
15
15
30
Fuse
Fuse case
Figure 11 /
11
/
11
1.
2.
3.
Figure 7 /
7
/
7
8
1.
8
2.
6
3.
*
4–Hexagonal screw
(M5
8)
*
4
(M5
8)
*
4
M5
8
Note 2 /
2
/
2
1
2
1.
"3
"
2.
DCP
DCP
3.
9
4.
10
5.
Figure 10 /
10
/
10
1.
2.
11
3.
11
CCA-
4. CeNET
CeNET
CeNET
CCA-520
2.5m
CCA-521 0.6m
Y
CCA-519
Clarion
CeNET
5.
15A
15A
30 cm
