DISPLAY THE WX FEATURE ON THE MAP

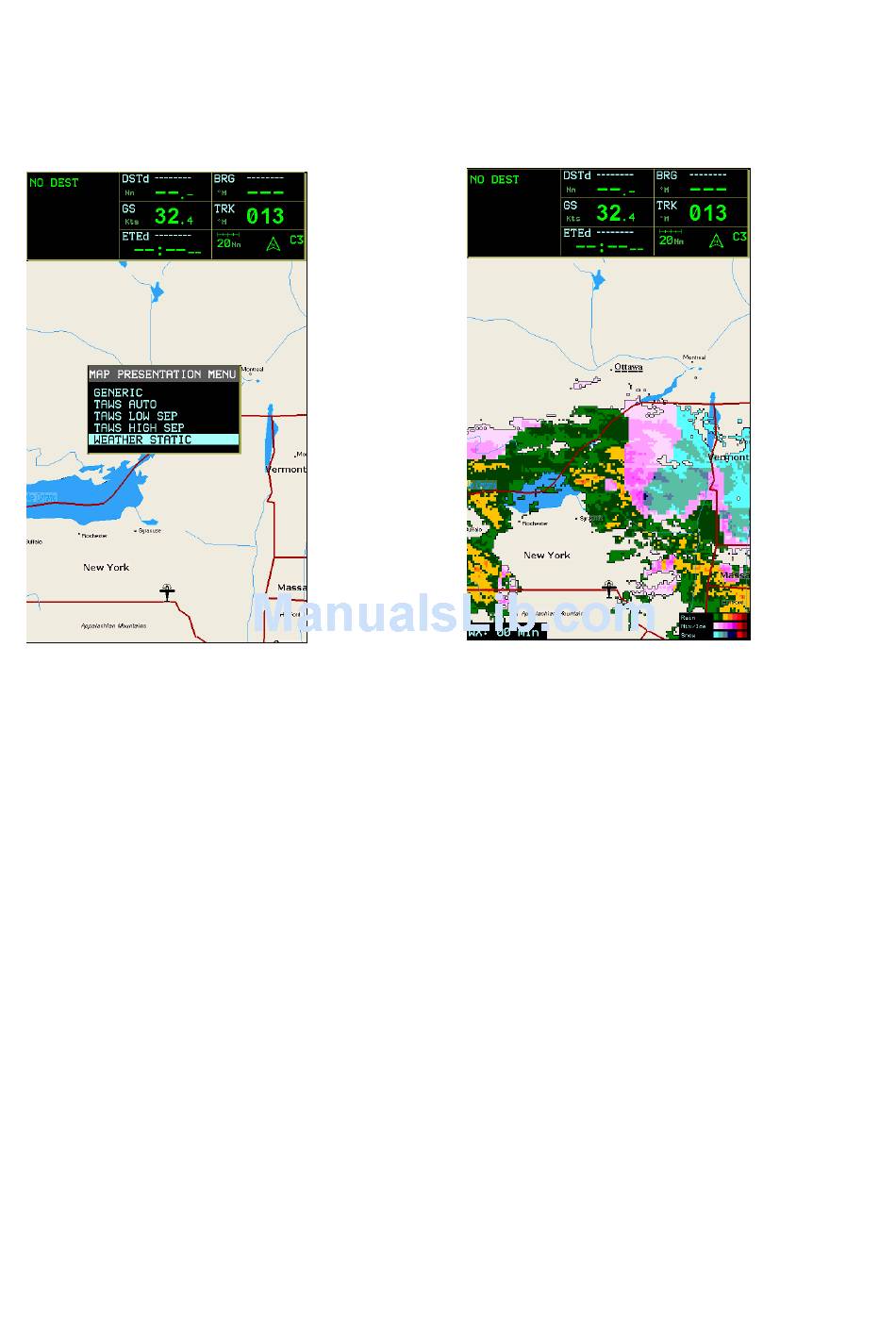

While on the Moving Map hold CYCLE (EKP IV) or hold MENU (GPII+) to enter the Map
Presentation Menu and Select WEATHER STATIC.
This will enable the display of weather data on the navigator. At any time the MAP
PRESENTATION MENU can be reselected in order to return to the normal GENERIC Moving
Map Mode or to the TAWS mode.
Once in WEATHER STATIC mode a timer in the bottom left corner of the screen will show the
elapsed time since the last NEXRAD product was received by the navigator.
In order to see NEXRAD color pattern legend on the bottom right side of the Moving Map, on the
XM WEATHER page set Moving Map Legend to ON.
