1.3.1 the Moving Map

Before starting, connect the EKP-IV to power and place the antenna with a clear view of the sky.
Turn On the unit pressing 'POWER'. Press 'ENTER' to exit from the Warning page and enter the
Moving Map mode. The Moving Map is the default state displaying the Moving Map screen and the
Data Window. The Data Window contains navigation information boxes (See Chapter 3 for details
on Moving Map mode).
Note: If no Fix is available, red dashed cross is displayed over the map for increased Pilot
Awareness.
to Change the Scale of the Moving Map
Use 'ZOOM IN' and 'ZOOM OUT' to change the map display scale.
to Select Position
Use the cursor key to scroll to the location you want.

1.3.2 the Main Menu

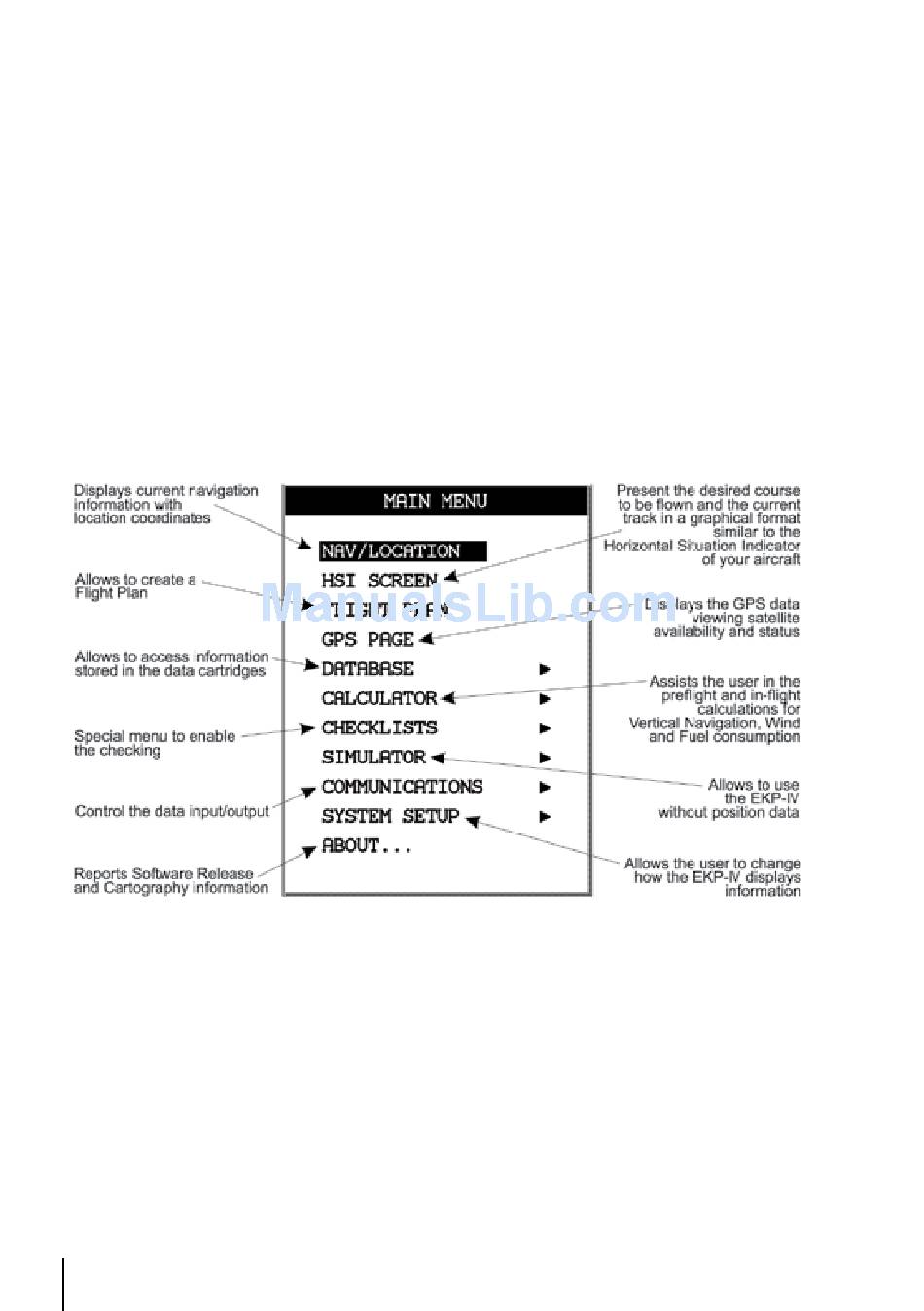

From Moving Map press 'MENU' for 1 second to display the Main Menu:
Fig. 1.3.2 - Main Menu

1.3.3 Moving Map Functions

The Moving Map operates in Auto Home, Auto Zoom, and Cursor Mode. The screen will behave
differently based on the mode of operation selected. The Auto Home mode will allow the user to
pan away from his present position to view other parts of the map, and return to present position
automatically when no buttons are pushed for a pre-determined amount of seconds. Auto Zoom
mode will keep your present position, and your destination in the screen at all times. The screen
will automatically zoom in as you get closer. To shut off this function, simply select OFF.
The Cursor Mode (OFF Selected) will allow you to move the map to any position to view data or
details. To return to your present position, just press 'CLEAR' while in moving map.
The control for these functions is found in the Moving Map Menu, under Auto Position Mode.
