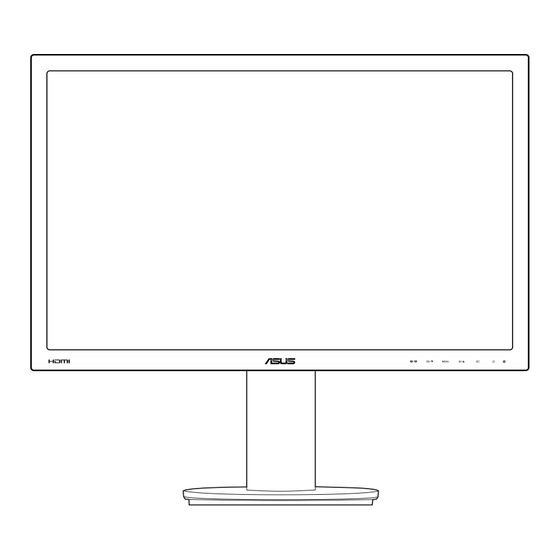

- Page 1 VS24AxL Series LCD Monitor User Guide...
- Page 2 INCIDENTAL, OR CONSEQUENTIAL DAMAGES (INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR ERROR IN THIS MANUAL OR PRODUCT.
-
Page 3: Table Of Contents
Contents Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 QuickFit Function ............1-4 Chapter.2:..Setup 2.1. -
Page 4: Notices
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety.information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 6: Care.&.Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. -
Page 7: Takeback.services
These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials. - Page 8 viii...
-
Page 9: Welcome
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Monitor.introduction
Monitor introduction 1.3.1. Front.view button: • Selects a desired preset mode. • Exits the OSD menu or goes back to the previous menu when the OSD menu is active. • Automatically adjusts the image to its optimized position, clock, and phase by pressing this button for 2-4 seconds (for VGA mode only). -
Page 11: Back View
DVI.port. This 24-pin port is for PC (Personal Computer) DVI-D digital signal connection. VGA.port. This 15-pin port is for PC VGA connection. Earphone. jack. This port is only available when an HDMI cable is connected. Kensington.lock.slot. ASUS VS24AxL Series LCD Monitor... -
Page 12: Quickfit Function
1.3.3. QuickFit.Function The QuickFit function contains three kinds of patterns: (1) Grid patterns (2) Paper size (3) Photo size. To activate QuickFit, press the QuickFit hotkey, and then press the MENU key to switch between different pattern sizes. Grid patterns The grid patterns facilitate designers and users to organize content and layout on a page and achieve a consistent look and feel. - Page 13 When QuickFit is activated, press the control buttons on the front panel to make adjustments. The QuickFit OSD displayed in the lower right corner of the screen will guide users to make selections. The QuickFit OSD shown on the screen is not accessible by tapping on it. ASUS VS24AxL Series LCD Monitor...
- Page 14 Chapter 1: Product introduction...
-
Page 15: Assembling.the.monitor.arm/Base
(Figure 4) We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Figure 1 Figure 2 160˚ 160˚ 0˚ Figure 3 Figure 4 ASUS VS24AxL Series LCD Monitor... -
Page 16: Adjusting.the.monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling when you change its angle. •... -
Page 17: Detaching.the.arm/Base.(For.vesa.wall.mount)
Hold the stand while removing the screws. • The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm) ASUS VS24AxL Series LCD Monitor... -
Page 18: Connecting.the.cables
Connecting the cables Connect the cables as the following instructions: HDMI Earphone jack •. To.connect.the.power.cord: connect one end of the power cord securely to the monitor’s AC input, the other end to a power outlet. •. To.connect.the.VGA/HDMI/DVI.cable: Plug one end of the VGA/DVI/HDMI cable to the monitor’s VGA/DVI/ HDMI port. - Page 19 ASUS VS24AxL Series LCD Monitor...
- Page 20 Chapter 2: Setup...
-
Page 21: Osd.(On-Screen.display).Menu
Night.View.Mode: best choice for dark-scene games or movies with SPLENDID™ Video Enhancement. •. sRGB: best choice for viewing photos and graphics from PCs. In the Standard Mode, the ASCR, Saturation and Sharpness functions are not user-configurable. ASUS VS24AxL Series LCD Monitor... - Page 22 Aspect.Control: adjusts the aspect ratio to “Full”, “4:3”, or “OverScan” (only available for the HDMI input). •. ASCR: turns on/off the ASCR (ASUS Smart Contrast Ratio) function. •. Position: adjusts the horizontal position (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100.
- Page 23 Language: there are 21 languages for your selection, including English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatia, Polish, Romanian, Hungarian, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian. •. All.Reset: “Yes” allows you to restore the default settings. ASUS VS24AxL Series LCD Monitor...
-
Page 24: Specifications.summary
3.2 Specifications summary Panel Type TFT LCD Panel size 24.1" (16:10, 61.13 cm) wide screen Max. Resolution 1920 x 1200 Pixel pitch 0.27 mm Brightness (Max.) 300 cd/m Contrast Ratio (Typ.) 1000:1 Contrast Ratio (Max.) 80,000,000:1 (with ASCR on) Viewing angle(H/V) CR>10 178˚/178˚... -
Page 25: Troubleshooting.(Faq)
• Ensure that the HDMI cable is properly connected to the monitor and the computer. • Adjust the volume settings of both your monitor and HDMI device. • Ensure that the computer sound card driver is properly installed and activated. ASUS VS24AxL Series LCD Monitor... -
Page 26: Supported.operating.modes
Supported operating modes Resolution. Horizontal. Vertical.Frequency.. Pixel.. Frequency Frequency.(KHz) (Hz) (MHz) 640x480 31.47(N) 59.94(N) 25.18 800x600 35.16(P) 56.25(P) 800x600 37.88(P) 60.32(P) 1024x768 48.36(N) 60.00(N) 1280x960 60.00(P) 60.00(N) 1280x1024 63.98(P) 60.02(P) 1366x768 47.712(P) 59.79(P) 85.5 1440x900 55.94(N) 59.89(P) 106.5 1600x1200 75.00(P) 60.00(P) 1680x1050 65.29(N)
