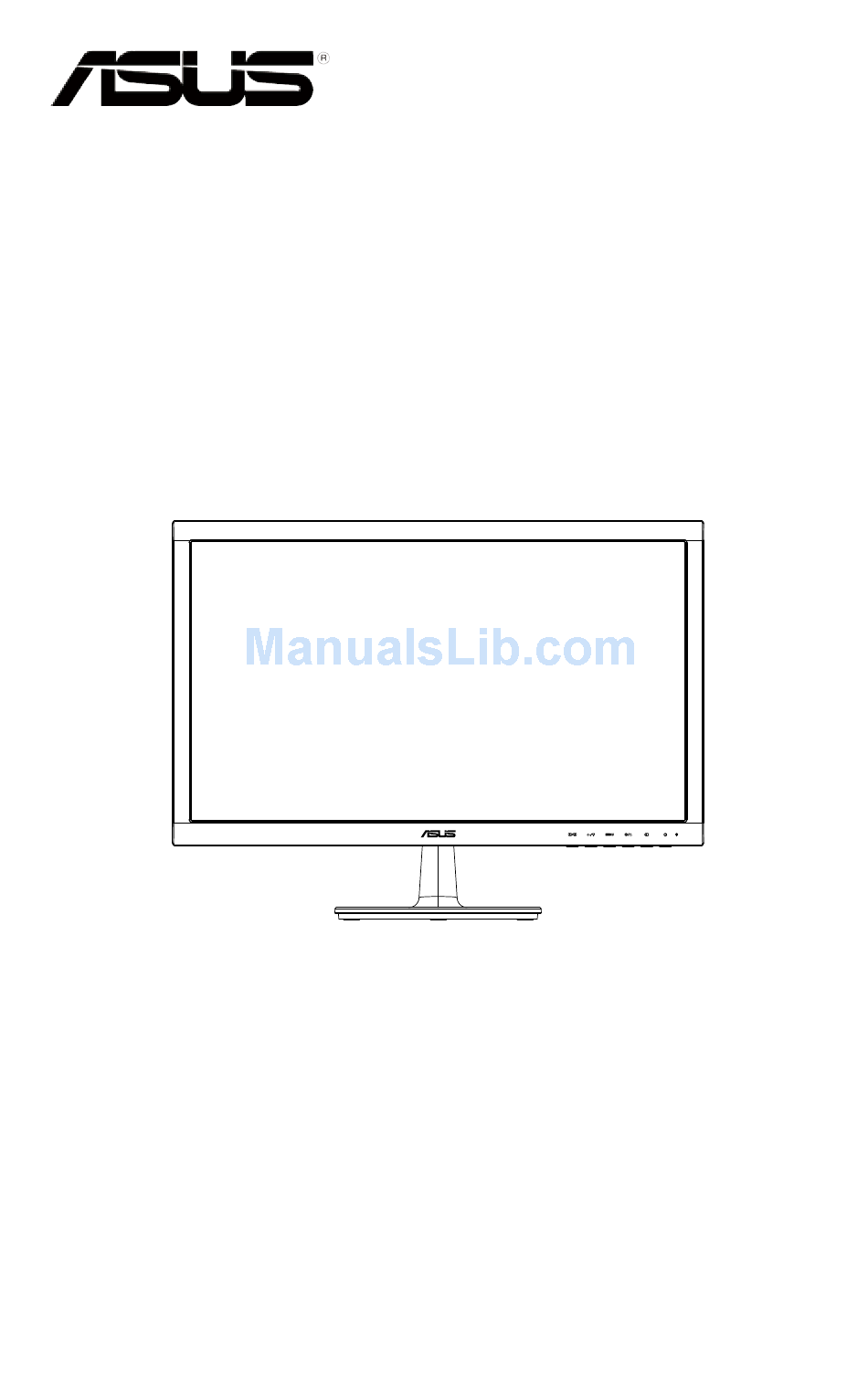

- Page 1 VS228T-P LCD Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with manufacturer’s instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment to an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. ® As an Energy Star Partner, our company has determined ® that this product meets the Energy Star guidelines for energy efficiency. Canadian Department of Communications Statement This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus set out in the Radio Interference Regulations of the Canadian Department of Communications. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. • If the power supply is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer. • Before using the product, make sure all cables are correctly connected and the power cables are not damaged. If you detect any damage, contact your dealer immediately. • Slots and openings on the back or top of the cabinet are provided for ventilation. Do not block these slots. Never place this product near or over a radiator or heat source unless proper ventilation is provided. • The monitor should be operated only from the type of power source indicated on the label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. • Use the appropriate power plug which complies with your local power standard. • Do not overload power strips and extention cords. Overloading can result in fire or electric shock. • Avoid dust, humidity, and temperature extremes. Do not place the monitor in any area where it may become wet. Place the monitor on a stable surface. • Unplug the unit during a lightning storm or if it will not be used for a long period of time. This will protect the monitor from damage due to power surges. • Never push objects or spill liquid of any kind into the slots on the monitor cabinet. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. Turn your monitor off and unplug the power cord. Clean the monitor surface with a lint-free, non-abrasive cloth. Stubborn stains may be removed with a cloth dampened with mild cleaner. • Avoid using a cleaner containing alcohol or acetone. Use a cleaner intended for use with the LCD. Never spray cleaner directly on the screen, as it may drip inside the monitor and cause an electric shock. The following symptoms are normal with the monitor: • The screen may flicker during the initial use due to the nature of the fluorescent light. Turn off the Power Switch and turn it on again to make sure that the flicker disappears. • You may find slightly uneven brightness on the screen depending on the desktop pattern you use. • When the same image is displayed for hours, an afterimage of the previous screen may remain after switching the image. The screen will recover slowly or you can turn off the Power Switch for hours. • When the screen becomes black or flashes, or cannot work anymore, contact your dealer or service center to fix it. Do not repair the screen by yourself! Conventions used in this guide WARNING: Information to prevent injury to yourself when trying to complete a task. -
Page 6: Where To Find More Information
Where to find more information Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer. These documents are not part of the standard package. -
Page 7: Welcome
Welcome! ® Thank you for purchasing the ASUS VS228T-P Series LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual experience that the VS228T-P Series brings you! Package contents Check your VS228T-P Series LCD monitor package for the following items: LCD monitor Monitor base Quick start guide 1 x Power cord 1 x VGA cable 1 x DVI cable (Only for some models) 1 x Warranty card If any of the above items is damaged or missing, contact your retailer immediately. ASUS LCD monitor VS228T-P... -
Page 8: Assembling The Monitor Base
Assembling the monitor base To assemble the monitor base: Connect the base with the arm of monitor and turn clockwise. A click indicates that the base has been connected successfully. Adjust the monitor to the angle that is most comfortable for you. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Connecting cables To connect cables: Connect the cables you need based on chapter 1.5.2, page1-5. Chapter 1: Product Introduction... -
Page 9: Monitor Introduction
Front of the LCD monitor Button: • Automatically adjust the image to its optimized position, clock, and phase by long pressing this button for 2-4 seconds (for VGA mode only).( • Use this hotkey to switch among six video preset modes (Scenery, Standard, Theater, Game, Night View, and sRGB Mode) with SPLENDID™ Video Enhancement Technology.Exit the OSD menu or go back to the previous menu as the OSD menu is active. ( Button: • Press this button to decrease the value of the function selected or move to the next fuction. • This is also a hotkey for volume adjustment. MENU Button: • Press this button to enter the OSD menu. • Press this button to enter/select the icon (function) highlighted while the OSD is activated. Button: • Press this button to increase the value of the function selected or move right/up to the next function. • This is also a hotkey for brightness adjustment. Input Select Button: • Use this hotkey to switch among VGA or DVI inputs. ASUS LCD monitor VS228T-P... - Page 10 Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the table below. Status Description Blue Amber Standby mode Chapter 1: Product Introduction...
-
Page 11: Rear Of The Lcd Monitor
1.5.2 Rear of the LCD monitor AC-In Audio-In DVI-In VGA-In ASUS LCD monitor VS228T-P... -
Page 12: Detaching The Arm/Stand (For Vesa Wall Mount)
Detaching the arm/stand (for VESA wall mount) The detachable stand of the VS228T-P Series LCD monitor is specially designed for VESA wall mount. To detach the arm/stand: Pull the stop lever and turn anticlockwise to unlock. Detach the base from the monitor. Use your fingers gently pull away the plate that covers the stand neck. Use a screwdriver to remove the four screws that secure the stand to the monitor. Detach the stand from the monitor. • W e recommend that you cover the table surface with soft cloth to prevent damage to the monitor. • H old the stand of the monitor while removing the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/ load according to the model listed in the specification table (Screw size: M4 x 10 mm). Chapter 2: Setup... -
Page 13: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. • You can adjust the monitor’s angle from -5˚ to 20˚. -5 ~ 20 ASUS LCD monitor VS228T-P... -
Page 14: Osd (On-Screen Display) Menu
OSD (On-Screen Display) menu 3.1.1 How to reconfigure VS228 Splendid Scenery Mode Color Standard Mode Image Theater Mode Input Select Game Mode System Setup Night View Mode sRGB Move Menu Exit Press the [MENU] button to activate the OSD menu. Press and to navigate through the functions. Highlight and activate the desired function by pressing the [MENU] button. If the function selected has a sub-menu, press and again to navigate through the sub-menu functions. Highlight and activate the desired sub-menu function by pressing the [MENU] button. Press and to change the settings of the selected function. To exit the OSD menu, press the button. Repeat step 2 and step 3 to adjust any other function. - Page 15 Skin Tone Natural Smart View Move Menu Exit Brightness: The adjusting range is from 0 to 100. The button • is also a hotkey to activate this function. Contrast: The adjusting range is from 0 to 100. The button is • also a hotkey to activate this function. • Saturation: The adjusting range is from 0 to 100. • Color Temp.: Contain three preset color modes (Cool, Normal, Warm) and one User Mode. • Skin Tone: Contain three color modes including Reddish, Natural, and Yellowish. • Smart View: Enable a clearer visibility after tilted the screen. In the User Mode, colors of R (Red), G (Green), and B (Blue) are userconfigurable; the adjusting range is from 0 ~ 100. ASUS LCD monitor VS228T-P...
- Page 16 Aspect Control Full Image ASCR Input Select Position System Setup Focus Move Menu Exit • Sharpness: Asjust the picture sharpness. The adjusting range is from 0 to 100. (Only available for selecting “Standard Mode” in Splendid menu.) • Aspect Control: Adjust the aspect ratio to “Full”, “4:3”, or “Over Scan”. • ASCR: Select ON or OFF to enable or disable dynamic contrast ratio function. (ASCR: ASUS Smart Contrast Ratio. Disabled at “Standard Mode”.) • Position: Adjust the horizontal postition (H-Position) and the vertical position (V-Position) of the image. The adjusting range is from 0 to 100. (Only available for VGA input.) • Focus: Reduce Horizonal-line noise and Vertical-line noise of the image by adjusting (Phase) and (Clock) separately. The adjusting range is from 0 to 100. (Only available for VGA input.) 4:3 is only available when input source is in 4:3 format. OverScan is only available for the HDMI input source. Chapter 3: General Instruction...
-
Page 17: Input Select
ECO Mode Input Select OSD Setup System Setup Language English Information Move Menu Exit page 1/2: VS228 Splendid All Reset Color Image Input Select System Setup Move Menu Exit page 2/2: • Splendid Demo Mode: Activate the demo mode for the Splendid function. • Volume: Adjust the earphone output volume level. The adjusting range is from 0 to 100. ASUS LCD monitor VS228T-P... - Page 18 • ECO Mode: Activate the ecology mode for power saving. (Some gray levels may not be distinguished if ECO is ON. Its brightness is lower than that when setting the Contrast Ratio to 100.) • OSD Setup: Adjust the horizontal postition (H-Position), vertical position (V-Position), OSD Timeout, DDC/CI, and Transparency of the OSD screen. • Language: Select OSD language. The selections are English, French, German, Spanish, Italian, Dutch, Russian, Traditional Chinese, Simplified Chinese, Japanese, Persian, Thai, Indonesian, Poland, Turkey, Portugal, Czech, Croatia, Hungary, Romania, Korean. • Information: Display the monitor information of Input Port, Resolution, H-freq., V-freq, and Model Name. • All Reset: Set to “Yes” to revert all settings to the factory default status. Chapter 3: General Instruction...
-
Page 19: Specifications
Brightness (Typ.) 250cd/m Intrisinc Contrast Ratio (Typ.) 1000:1 Viewing Angle (CR=10) ≧170°(H) / ≧160°(V) Display Colors 16.7 M Response Time 5 ms Audio input DVI input D-Sub input Power Consumption Power ON < 21.1W* Note * Based on Energy Star 6.0 standard Power Saving Mode < 0.5 W Power OFF Mode < 0.5 W Tilt -5° ~ +20° VESA Wall Mounting Yes (100mm x 100mm) Phys. Dimension (WxHxD) 514 x 386 x 200 mm Box Dimension (WxHxD) 566 x 443 x 130 mm Net Weight (Esti.) 3.2 kg Gross Weight (Esti.) 5.3 kg Voltage Rating AC 100~240V(Built-in) ASUS LCD monitor VS228T-P... -
Page 20: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. The power LED lights amber and • Check if the monitor and the computer are in the there is no screen image ON mode. • Make sure the signal cable is properly connected the monitor and the computer. • Inspect the signal cable and make sure none of the pins are bent. • Connect the computer with another available monitor to check if the computer is properly working. Screen image is too light or dark • Adjust the Contrast and Brightness settings via OSD. Screen image is not centered or • Press the button for two seconds to sized properly automatically adjust the image. • Adjust the H-Position or V-Position settings via OSD. Screen image bounces or a wave • Make sure the signal cable is properly connected to pattern is present in the image... -
Page 21: Supported Timing List
60Hz 64.674KHz 1920 x 1080 60Hz 67.5KHz 1920 x 1080 60Hz 66.587KHz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD monitor VS228T-P...
