Summary of Contents for Asus VK207S
-

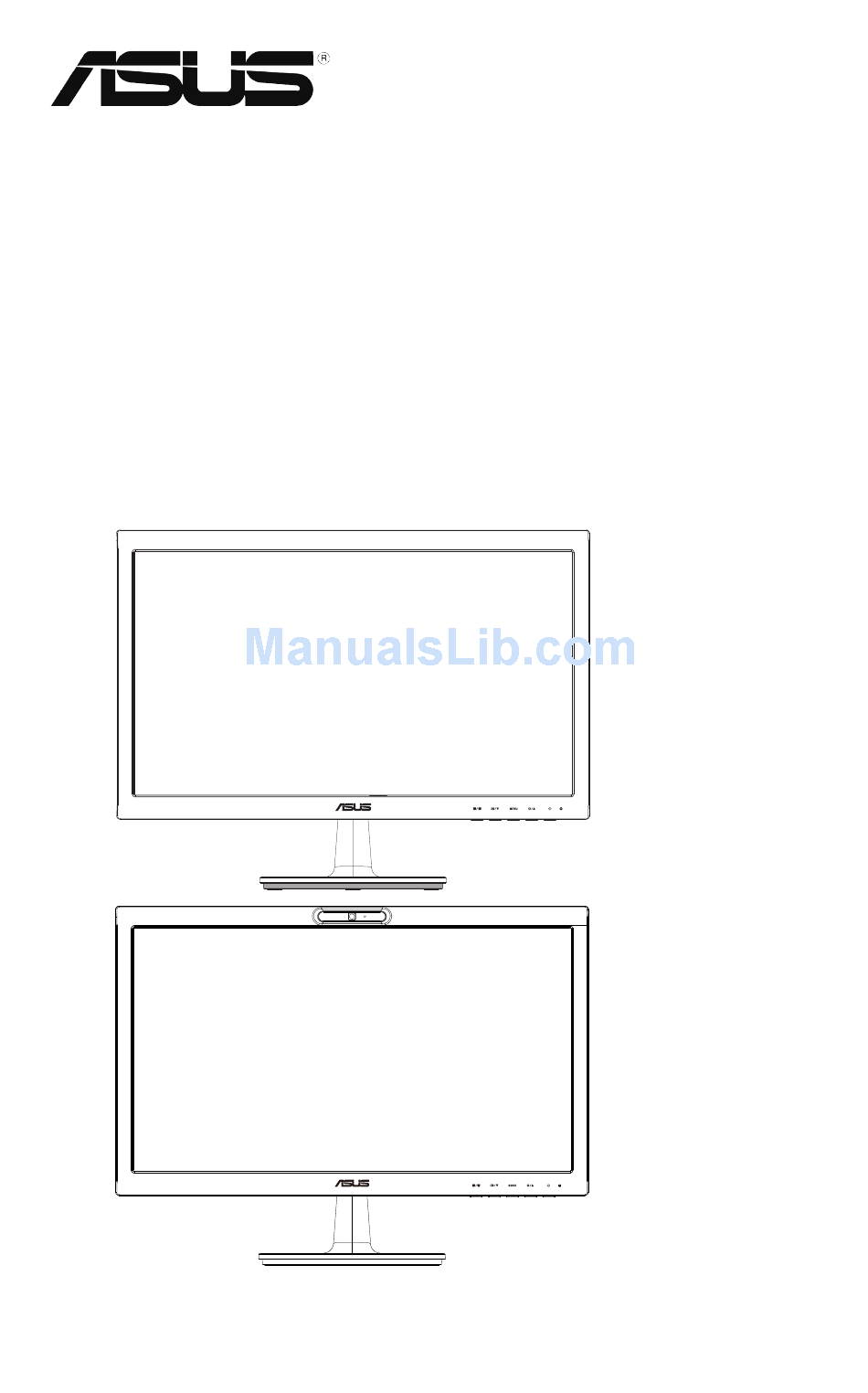

Page 1: Lcd Monitor
VS207/VK207 Series LCD Monitor User Guide VS207 BRIGHT CAM VK207... -
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. -
Page 3: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 4: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. -
Page 5: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 6 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.
-
Page 7: Welcome
1 x Power cord 1 x VGA cable 1 x DVI cable (Available for model VS207T/N) 1 x Audio cable (Available for model VS207T/S, VK207S ) 1 x USB cable (Only available for model VK207S) 1 x Warranty card If any of the above items is damaged or missing, contact your retailer immediately. -
Page 8: Assembling The Monitor Base
Assembling the monitor base To assemble the monitor base: Connect the base with the arm of monitor and turn clockwise. A click indicates that the base has been connected successfully. Adjust the monitor to the angle that is most comfortable for you. We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. -
Page 9: Monitor Introduction
Exit the OSD menu or go back to the previous menu as the OSD menu is active. Button • Press this button to decrease the value of the function selected or move to the next function. • Press this button to activate the QuickFit function designed for alignment. ASUS LCD Monitor VS207/VK207... - Page 10 • The QuickFit function contains 2 pages of common grid patterns, and photo sizes. (Please refer to 1.5.3 QuickFit Function) MENU Button: • Press this button to enter the OSD menu. • Press this button to enter/select the icon (function) highlighted while the OSD menu is activated.
-
Page 11: Rear Of The Lcd Monitor
1.5.2 Rear of the LCD monitor VS207T VS207S VS207N VS207D VK207S AC-IN port Audio - in Port DVI port VGA port USB upstream port Kensington Lock Screw holes for VESA Wall Mount Control buttons ASUS LCD Monitor VS207/VK207... -
Page 12: Quickfit Function
1.5.3 QuickFit Function The QuickFit function contains two patterns: (1) Grid (2) Photo size. Grid patterns The grid patterns facilitate designers and users to organize content and layout on a page and achieve a consistent look and feel. Alignment Grid Photo size The various real photo sizes displayed in the QuickFit function provides photographers and other users to accurately view and edit their photos in... -
Page 13: Detaching The Arm/Stand (For Vesa Wall Mount)
• The VESA wall mount kit ( 75 x 75 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/ load according to the model listed in the specification table (Screw size: M4 x 10 mm). ASUS LCD Monitor VS207/VK207... -
Page 14: Adjusting The Monitor
Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle. -
Page 15: Osd (On-Screen Display) Menu
Scenery Mode Color Standard Mode Image Theater Mode Input Select Game Mode System Setup Night View Mode sRGB Move Menu Exit • Scenery Mode: This is the best choice for scenery photo displaying with SPLENDID™ Video Enhancement. ASUS LCD Monitor VS207/VK207... - Page 16 Standard Mode: This is the best choice for document editing • with SPLENDID™ Video Enhancement. Theater Mode: This is the best choice for movie watching with • SPLENDID™ Video Enhancement. Game Mode: This is the best choice for game playing with •...
-
Page 17: Input Select
Aspect Control: Adjust the aspect ratio to “Full”, “4:3”. ASCR: Select ON or OFF to enable or disable dynamic contrast • ratio function. (ASCR: ASUS Smart Contrast Ratio. Disabled at “Standard Mode”.) • Position: Adjust the horizontal postition (H-Position) and the vertical position (V-Position) of the image. -
Page 18: System Setup
Splendid Demo Mode: Activate the demo mode for the Splendid function. • Volume: Adjust the output volume level. (Available for model VS207T/S, VK207S ) • ECO Mode: Activate the ecology mode for power saving. (Some gray levels may not be distinguished if ECO is ON. Its brightness is lower than that when setting the Contrast Ratio to 100.) -
Page 19: Specifications
Phys. Dimension (WxHxD) 468.0 X 355.5 X 185.0 mm Box Dimension (WxHxD) 530 x 412 x 115 mm Net Weight (Esti.) 2.59 kg 2.64 kg Gross Weight (Esti.) 3.99 kg 4.04 kg Voltage Rating AC 100~240V(Built-in) *Specifications subject to change without notice. ASUS LCD Monitor VS207/VK207... -
Page 20: Troubleshooting (Faq)
• Adjust the Phase and Clock settings via OSD. No sound or sound is low • Ensure that the audio cable is properly connected to (VS207T/S, VK207S) the monitor and the computer. • Adjust the volume settings of both your monitor and computer. -
Page 21: Supported Timing List
1280 x 1024 75Hz 79.976KHz 1600 x 900 60Hz 60KHz * The modes not listed in the above tables may not be supported. For optimal resolution, we recommend that you choose a mode listed in the above tables. ASUS LCD Monitor VS207/VK207...
